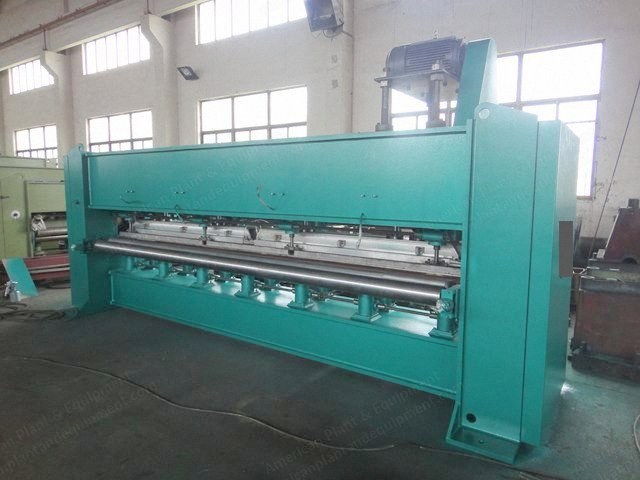

NovaStar, NN409, High-Speed Down-Stroke Needle Loom, 4500mm, 1000 RPM, 22kW (New)

NovaStar, NN409, High-Speed Down-Stroke Needle Loom, 4500mm, 1000 RPM, 22kW

Description

  1. Overview
    1. Needling speed: 0 to 1000 rpm
    2. Down stroke: 60 mm
    3. Needle density: 5000 needles per linear meter
    4. Pinhole diameter: Ø1.83 mm
    5. Actual width of needle plate: 4500 mm
    6. Feed speed: 0.6 to 6 m/min (normally between 2.5 and 4 m/min)
  2. Specifications
    1. Main motor: 22 kW inverter control
    2. Feeding and discharging motor: 2.2 kW each, inverter control
    3. Motors for strip plate and screening plate: 1.5 kW × 2, power-driven worm-gear lift, with ruler and travel switches
    4. Total power: 27.2 kW
  3. Construction Details
    1. Strip plate and screen plate: all pinholes are bevelled, surface chrome-coated, computerized drilling
    2. PVC apron feeding, chrome-coated double-roller discharging
    3. Up and down control: pneumatic control
  4. Included
