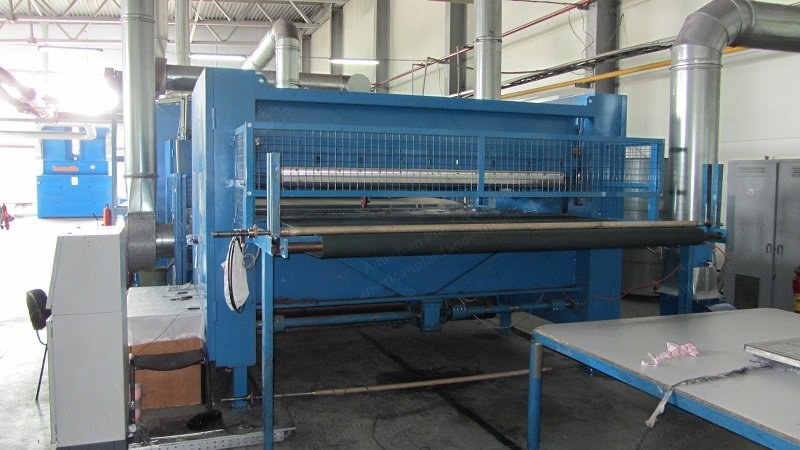

Bematic, Bombi, 2012, Nonwoven Airlaid Line, 2500mm Working Width, 500kg/h

Bematic, Bombi, 2012, Nonwoven Airlaid Line, 2500mm Working Width, 500kg/h Sold

Description

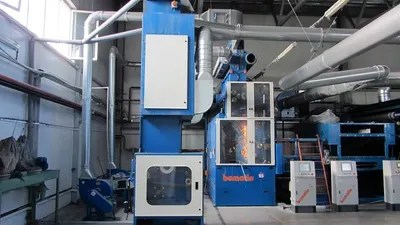

  1. Fibre Opening And Mixing Line
    1. 2 bale openers type AC-1500, working width 1500 mm, incl. feeding conveyor.
    2. 1 bale opener type AS-204 (for melt fibre dosing), with electronic weighing type SP-205.
    3. 1 type AFM 700, width 700 mm, length 7500 mm.
    4. 1 mixing opener type AF 700, working width 700 mm, opening rollers with needles.
    5. 1 fine opener type SF-1500, working width 1500 mm, 500 kg/h with dosing shaft.
    6. 1 filter station for transport air, type CF double bag filter.

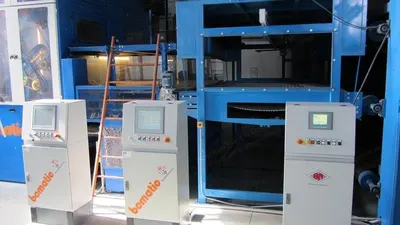

    7. 1 electronic control panel with touchscreen.
  2. Airlaid Line
    1. 1 dosing machine BEMABLOW, working width 2500 mm with electronic controlled dosing capacity.
    2. 1 airlaid web builder type Former T-Max, working width 2700 mm, web height 50-350 mm, web weight 300 till 300 g/m².
    3. 1 electronic continuing band weighing device BEMAMULTISCALE, for web from airlaid web builder, with feedback to airlaid machine.
    4. 1 filter station for transport air type CF, double bag filter.
    5. 1 electronic control panel with touchscreen.
  3. Spraying And Drying
    1. 1 spraying cabin BOMBI, 2600 mm working width.

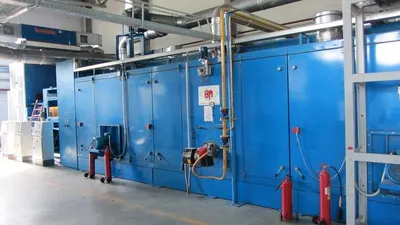

    2. 1 thermobonding oven BOMBI 2012, type TFP/2N/2.7M, 2 drying sections, gas heated, incl. calibrating zone, 2 static filters, 11.0 resp. 5.5 kW, oven length 12000 mm.
    3. 1 calander BOMBI 2012, type CAL/2C/2.7M.
    4. 1 cooling section BOMBI 2012, type RAF.
    5. 1 length- and cross cutter BOMBI 2012, type TG2.7/2+2.
    6. 1 electronic control panel/programmer with touchscreen.
  4. Process Capabilities
    1. Above line can process flax, hemp, regenerated fibres, polyester and low melt fibres.
    2. Production 500 kg/h.
    3. Consumption: gas 45 m³/h, electricity 90 kW/h.
