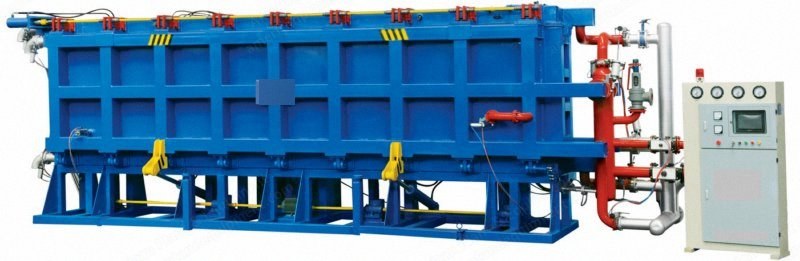

NovaStar, FG170, Auto Air Cooling EPS Block Molding Machine, 2030x1020x630mm Cavity, 1.3m³ Volume (New)

NovaStar, FG170, Auto Air Cooling EPS Block Molding Machine, 2030x1020x630mm Cavity, 1.3m³ Volume

Description

  1. Features
    1. With plc and touch screen control
    2. Main frame is made of seamless steel tubing, special alnico plate with anti-extension quality
    3. With vacuum system and condensing device
  2. Technical Data
    1. Model: FG170
    2. Inner size of cavity: 2030 mm × 1020 mm × 630 mm
    3. Finished product size: 20300 mm × 1000 mm × 600 mm
    4. Cavity volume: 1.3 m³
    5. Density: 5 to 30 g/L
    6. Output: 2 to 30 pcs/h
    7. Inlet diameter for steam: 65 mm
    8. Steam pressure: 0.6 to 0.8 MPa
    9. Compressed air diameter: 1 in
    10. Max. flow of oil pump: 35 mL/r
    11. High/low pressure of oil pump: 12 MPa / 5 MPa
    12. Feed guns of silo: 5 pcs
    13. Volume of silo: 2.5 m³
    14. Motor power of hydraulic station: 4 kW
    15. Blower kW: 5.5
    16. Total power: 9.5 kW
    17. Machine dimensions: (L) 4200 mm × (W) 1950 mm × (H) 2200 mm
    18. Machine weight: 5000 kg
