Befama, AC5, Needlepunched and Trim Opener, 1500mm Working Width, 11kW Main Motor (New)

Befama, AC5, Needlepunched and Trim Opener, 1500mm Working Width, 11kW Main Motor

Description

  1. Overview
    1. Machine is designed for opening needle punched trim and all kinds of textile waste.
    2. Weight of trim waste: 100 to 500 g/m².
    3. Raw material: scrap edge (selvedge) nonwovens production process of nonwovens and other waste of irregular shape.
    4. The machine comes with a complete mechanical and electrical drive.
    5. Electrical conditions: voltage, frequency, isolation – has to be agreed.
  2. Main Features
    1. Working width: 1500 mm.
    2. Main cylinder diameter: 590 mm.
    3. Feeding roller diameter: 135 mm.
    4. Feeding speed: 2.5 to 15 m/min.
    5. Opening cylinder is equipped with spiked lags.
    6. Drive opening cylinder by means of electronic motor 11 kW.
    7. Drive of feeding conveyor and roller by means of electric motor 1.5 kW with frequency inverter.
    8. Machine is combined with fan type WB20 – opened fibres are transported to the blending bin or on to another machine.

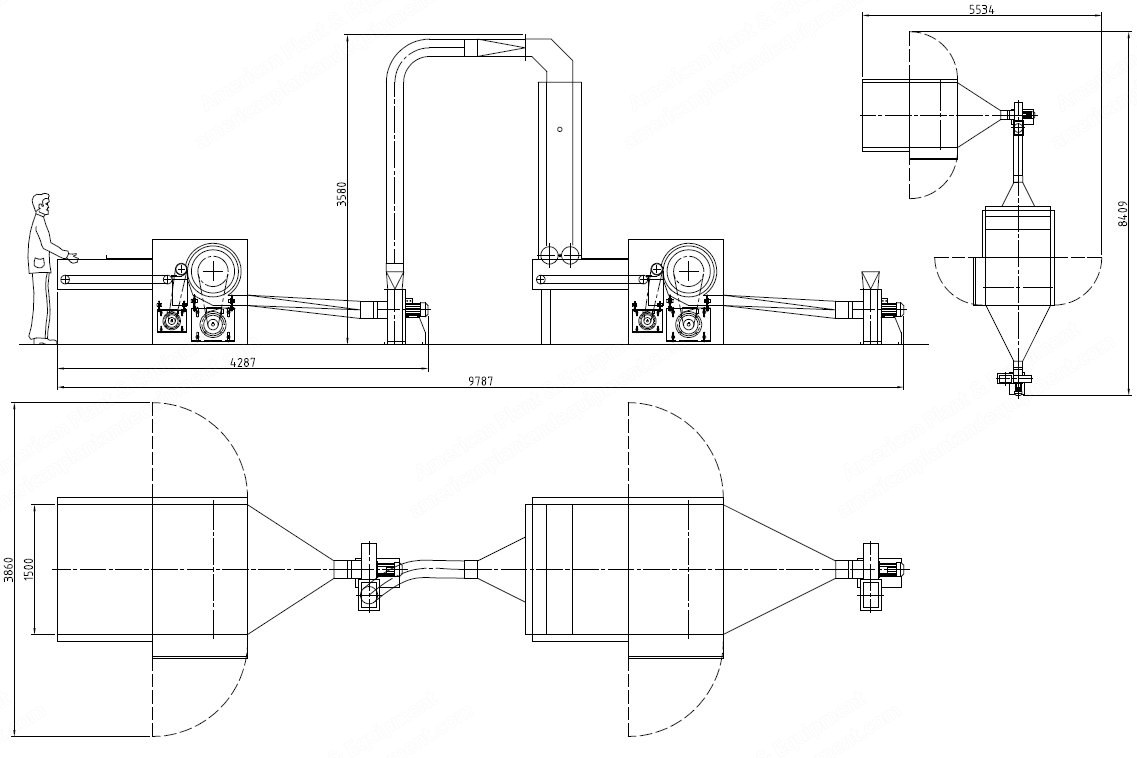

    9. Machine dimensions – as per machine offer drawing.
  3. Equipment
    1. Side skirts fitted with electromagnetic locks prevent them opening when the machinery is in operation.
    2. A set of standard parts.
  4. Notes
    1. The offer does not include cables for pneumatic transport of raw materials.
    2. Inscriptions on the machine and documentation in English.
    3. The machine color – has to be agreed.
