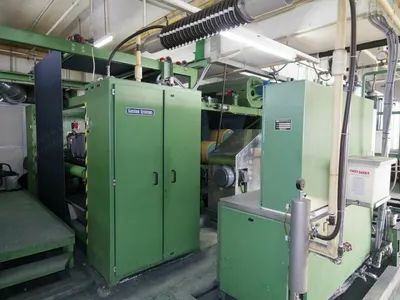

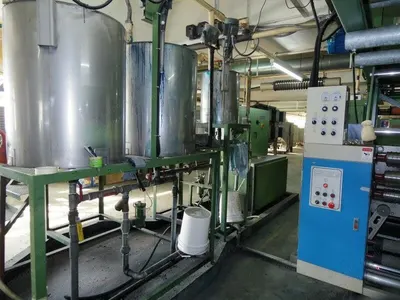

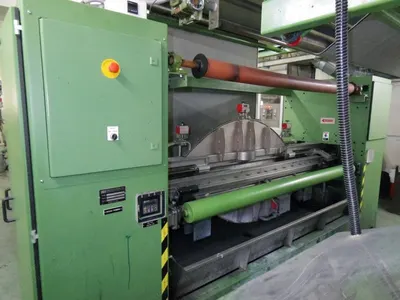

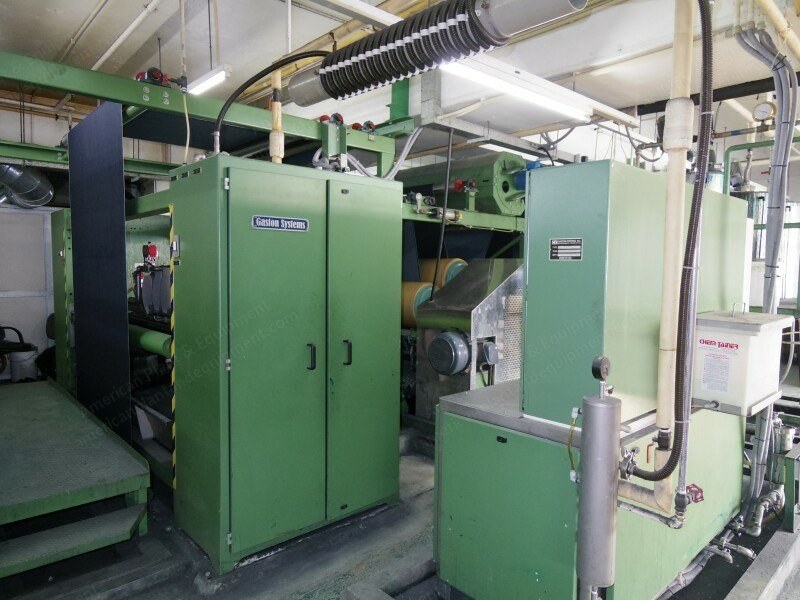

Description Overview Maker: Gaston Manufacturing date: 2010 Two applicators (top and bottom) One generator Maximum slot width ~1800 mm 1.8 m denim system Top and bottom parabolic applicator in carbon steel applicator endframes Standard generator with foam brush, with Kooltronic water/air heat exchanger and ethernet com Controller Specifications Siemens PL#314-1AG-OABO – interface MP277 Software name/version: S02853 – CFS3 – 4 Password level 1 (supervisor): 1111 Password level 2 (technician): 2000 Capacities Liquid: 5.0 LPM Air: 50 SLPM Foam: 55 LPM Foam Mixer Gaston systems – 10 inch standard Mixer speed: 540 RPM, 4.0 kW motor Seal design: abrasive Main Pump Size: 2L3 1.5 kW motor Utility Requirements Electrical – voltage: 380 V, 50/60 Hz Water: 30 PSIG Air: 100 PSIG Air flowmeter: Brooks 5851i Regulator setting: 90 PSIG Applicators Bottom and top parabolic applicators (bottom first) off-frame Slot width 76 inch maximum – 44 inch minimum with 1/2 inch gap, parabolic width 66 inch End seals – North America, automatic Idler rolls: 5 inch diameter teflon coated Outlet roll: adjustable – manually Top applicator has hook-nose coating bar Condition Machine running hours is only 300 hours Very new machine and always kept in good condition
