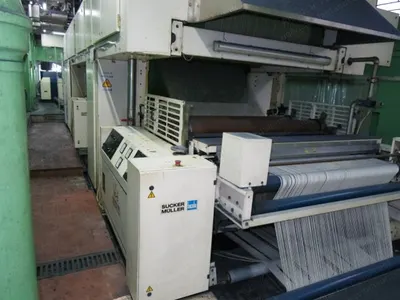

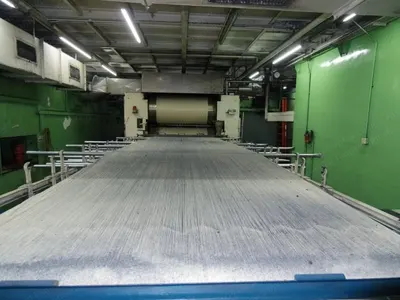

Sucker Muller, S433, 1999, 1600mm Warp Width, 14 Drying Cylinders, Mahlo EMC Moisture Control

Sucker Muller, S433, 1999, 1600mm Warp Width, 14 Drying Cylinders, Mahlo EMC Moisture Control

Description

  1. Overview
    1. Maker: Sucker Muller
    2. Model: S433
    3. Manufacture date: 1999
    4. 2 sizing boxes SD-C/40
    5. 14 drying cylinders and cooking accessories
  2. Sizing Machine Specifications
    1. Roller width: 1800mm, corresponding to 1600mm maximum warp width

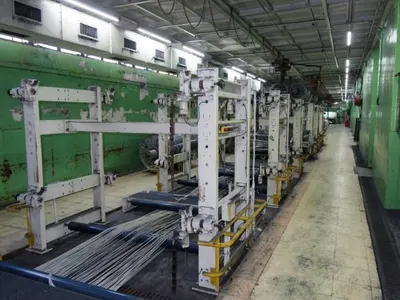

    2. Beam creel ANP-20 for taking up to 20 beams with maximum beam flange diameter of 1000mm
    3. 2 x let-off regulators AC 300
    4. 2 x size box SD-C 40
    5. Delta diagonal dryers ZM 2/2-2/2-6 total 14 cylinders
    6. 1 x waxing device

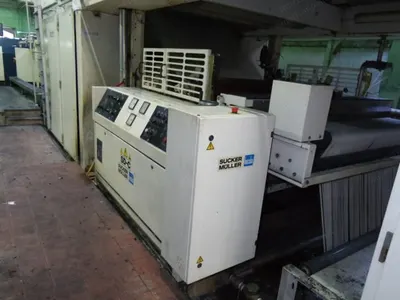

    7. Headstock WE11-PC, with PC computer control
    8. 1 x moisture treatment unit, Mahlo EMC

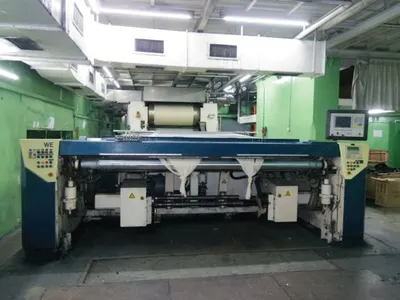

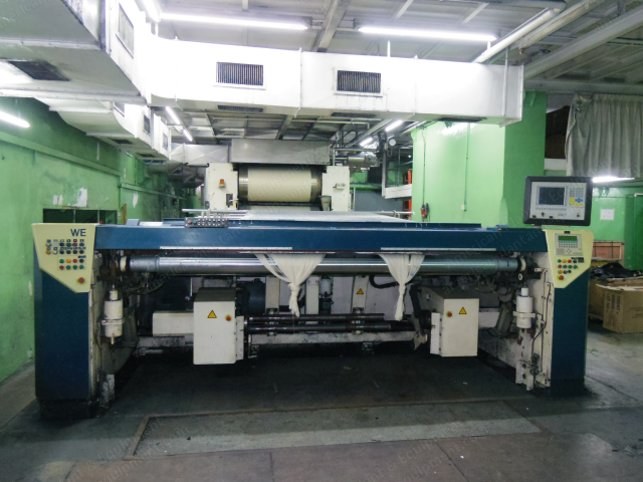

  3. Headstock WE 11-PC Specifications
    1. Roller width WB: 3200mm
    2. Maximum beam flange diameter: 450 to 1016mm
    3. Minimum initial beam diameter: 150mm
    4. For symmetrical beams: maximum tube length, measured with journals: 3000mm
    5. Maximum warp width, approximately 2600mm
    6. Minimum warp width: 840mm
  4. Drive Layout
    1. Machine speed: 10 to 125 m/min
    2. Crawl speed approximately 5 m/min
    3. Ultra slow creep speed: 1 m/min
    4. Transport roller drive by AC motor: 13.2 kW
    5. Main drive by AC motor at a rate of 22.0 kW
    6. Maximum winding tension: 200 to 4500 N
    7. Split section tension: 6000 N
  5. Accessories for Sizing Machine

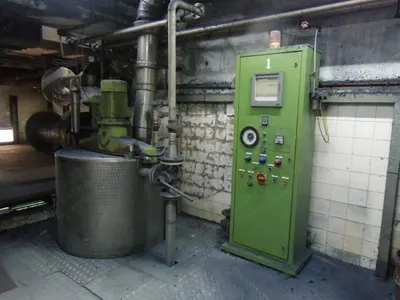

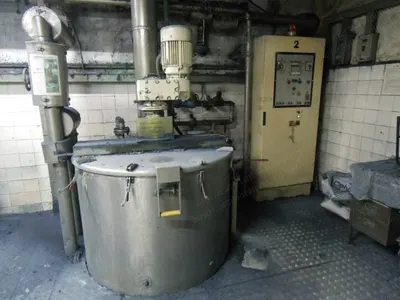

    1. Rotor cooker RK-121 with capacity of 1200 liter (1 set)
    2. Turbo cooker TK-800 with capacity of 1000 liter (1 set)

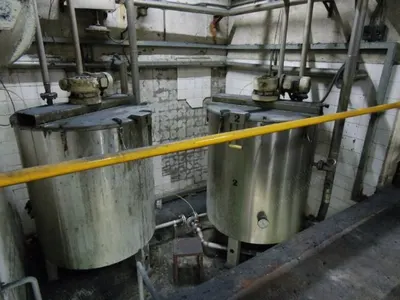

    3. Size storage kettles 800V, each with capacity 1000 liter (2 sets)
  6. Spare Rollers and Parts
    1. Squeezing roller (1 pc)
    2. Top immersion roller (2 pcs)
    3. Bottom immersion roller (2 pcs)
    4. Carrier roller (1 pc)
    5. Miscellaneous parts (1 lot)
