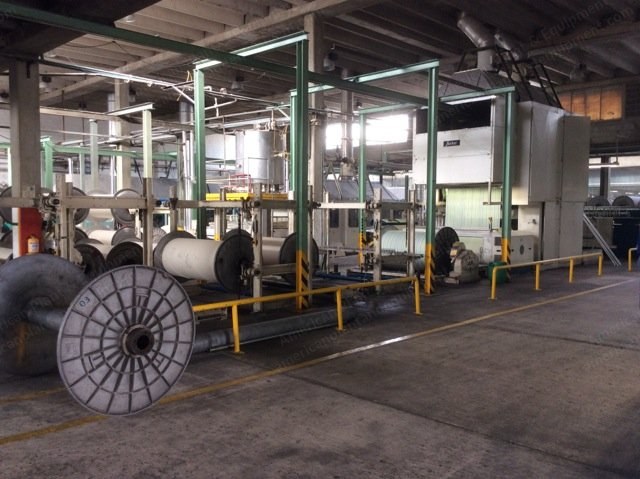

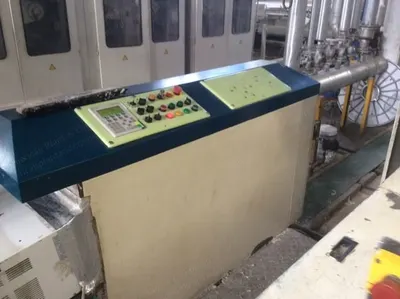

Description Overview 2003 sucker sizing machine Creel holds up to 10 beams from warping Beam to beam system for section wrapping Touchscreen control monitor Specifications Maximum beam diameter: 1.000 mm Maximum beam length: 1.800 mm Sizing box with 2 squeezers and 2 submersible cylinders of 2.000 mm long Pre wetting box 12 drying cylinders with 800 mm diameter and 2.000 mm long; eight of them are teflon coated 150 m/min working speed (depends of the yarn type) Malho speed regulator and residual moisture control Preparation kitchen that holds 1.000 liters and a reserve tank of 750 liters Max diameter of output cylinder: 1.250 mm Max output distance: 3.580 mm
