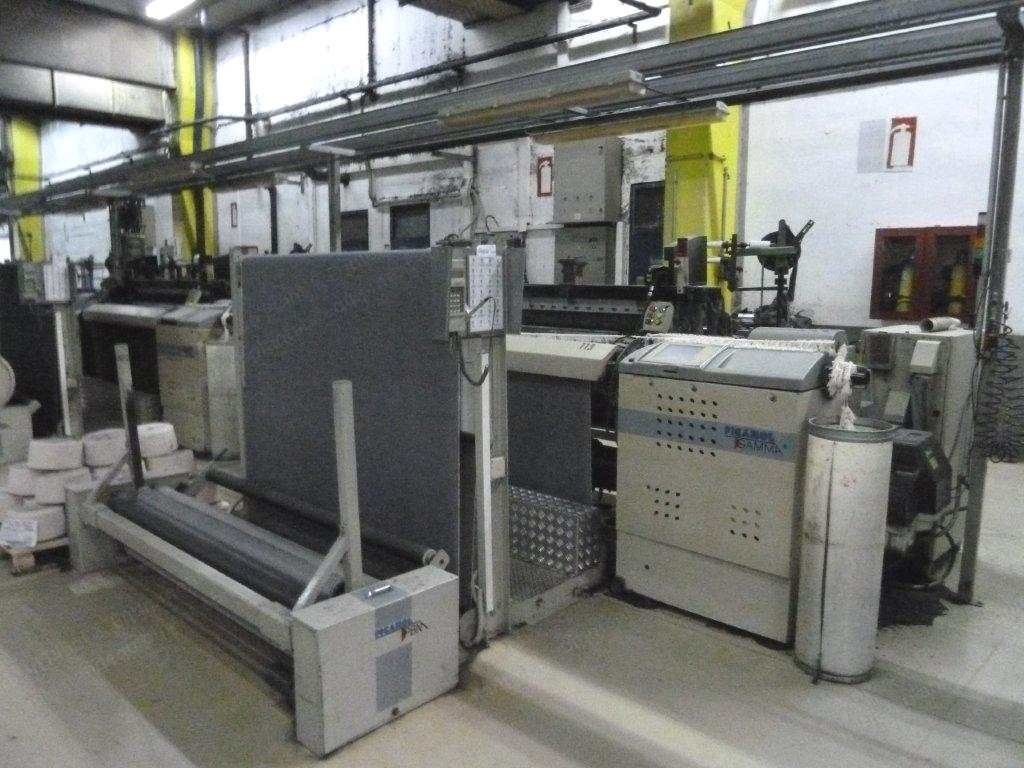

Picanol, Gamma-4-R-190, 2000/2001, 1900mm Width, 4 Colors, Staubli 2622 Dobby

Picanol, Gamma-4-R-190, 2000/2001, 1900mm Width, 4 Colors, Staubli 2622 Dobby

Description

  1. Overview
    1. Picanol rapier looms
    2. Type gamma-4-r-190
    3. Year of construction 2000 (48 looms) and year of construction 2001 (6 looms)
    4. Working width 1900 mm
    5. 4 colors
  2. Dobby And Drive
    1. Electronic Staubli dobby type 2622 with 12 levers installed
    2. Sumo motor
  3. Weft And Warp Equipment
    1. 2 weft accumulators
    2. Roj chrono with bobbin stand and electrical command box
    3. 1 1/2 warp beam Ø 1100 mm
    4. 1 batching motion PBM-1 with weavers walking floor
    5. 6 warp stop motion bars
    6. 6,000 heald frames for 13” heddles DRC2
    7. 6,000 healds and 6,000 droppers
    8. Elsy L&R
    9. Double back rest
  4. Quantity
    1. 54 looms available
