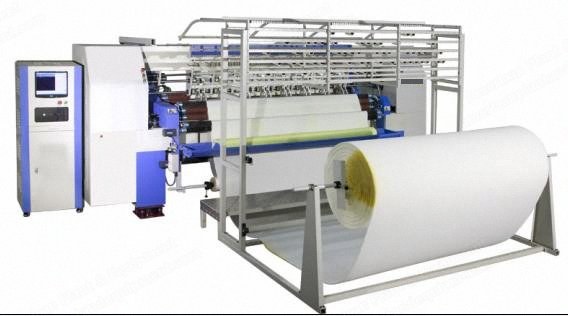

NovaStar, QL218, Multi-Needle Machine, 2450mm (94") Width, 3 Needle Bars, 5.5kW (New)

NovaStar, QL218, Multi-Needle Machine, 2450mm (94") Width, 3 Needle Bars, 5.5kW

Description

  1. Overview
    1. Windows xp operating system for easy operation
    2. Cad pattern designing or scanner-input pattern
    3. Computerized compensation and design amendment for better precision
    4. Ir thread-breaking detection with auto-stop
    5. Imported servo motors for high precision
    6. Pattern effect process track with auto detection operation
  2. Specifications
    1. Maximum speed of main shaft: 780 rpm
    2. Stitch length: 2 to 6 mm
    3. Capacity: 20 to 150 m/h
    4. X process: 12 in (305 mm)
    5. 3 needle bars
    6. Total power: 5.5 kW
    7. Power supply: 480 V, 60 Hz (or as per customer)
    8. Overall dimension: 4850 × 1160 × 1870 mm
    9. Total weight: 4000 kg
