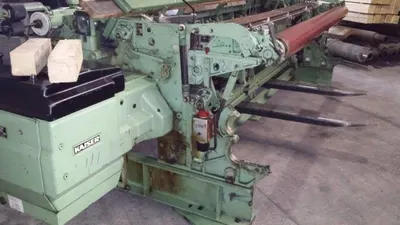

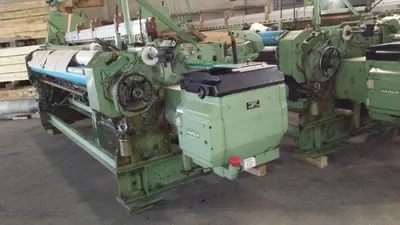

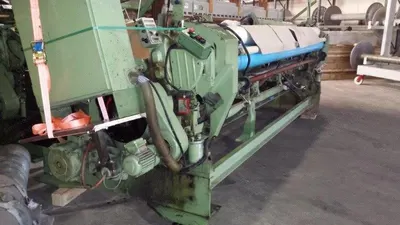

Dornier, GTV4-SD, 1985, 3000mm Width, Kaiser Dobby, 4 Colors

Dornier, GTV4-SD, 1985, 3000mm Width, Kaiser Dobby, 4 Colors

Description

  1. Overview
    1. Rapier weaving machine
    2. Dornier GTV4 /SD
    3. Year 1985
    4. Technical weaving - running on heavy fabrics
  2. Specifications
    1. Nominal width 3000 mm

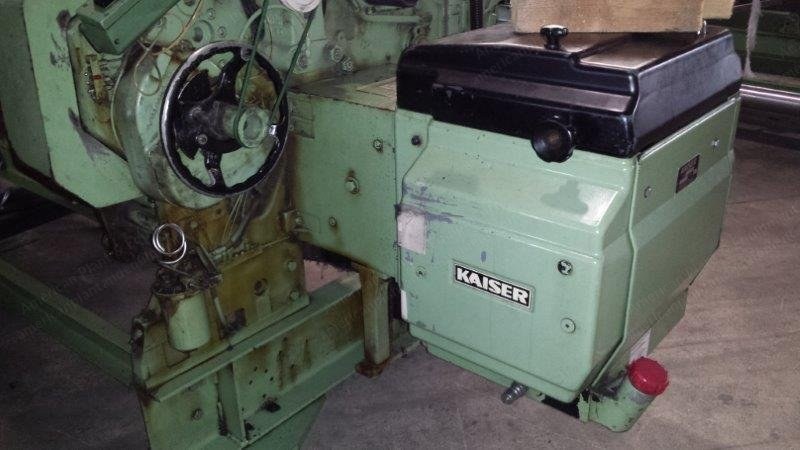

    2. Kaiser dobby 7814 (1985)
    3. 10 levers installed + 2 for colors
    4. 1 backrest roller
    5. Cloth roller possible - but without
    6. Warp stop motion Grob (6/5)
    7. Driven pressure roll
    8. 6 harness frames - 18 mm pitch
    9. 2 accumulators
    10. No warp beams (1000 mm dia. flange would be possible)
  3. Included

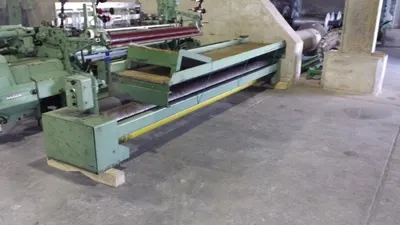

    1. 2 batching motion: 1 x Hubtex 350 cm - 1 x Picanol 350 cm
