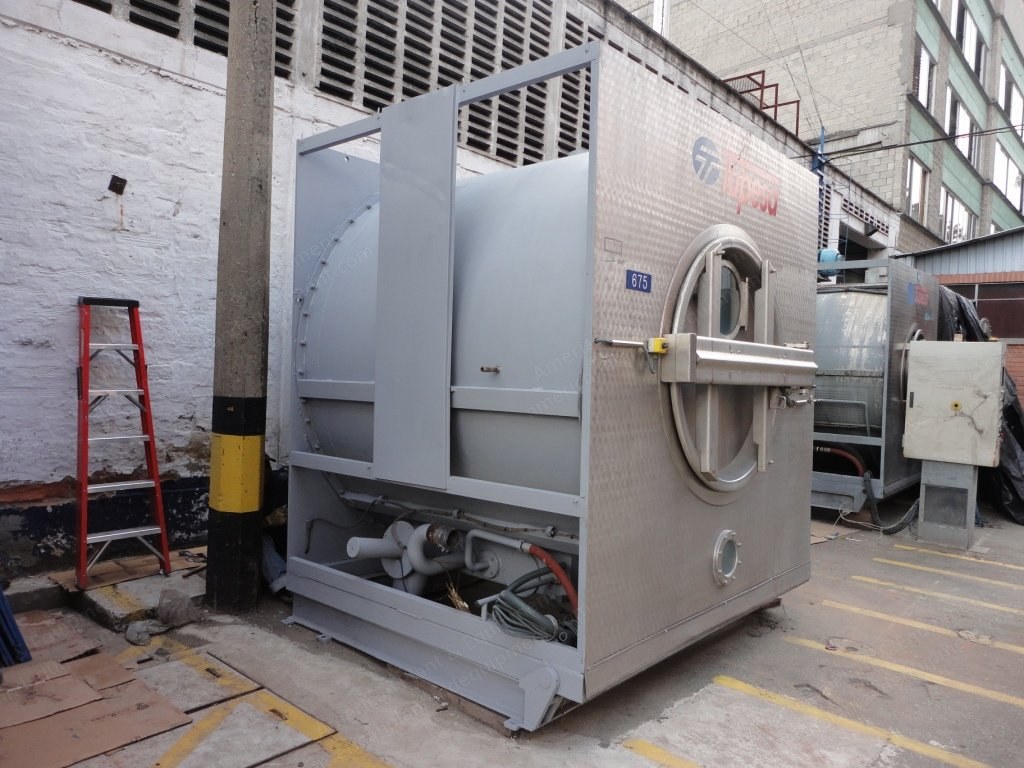

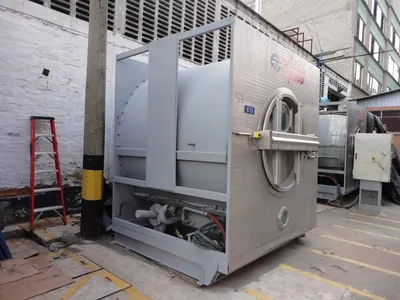

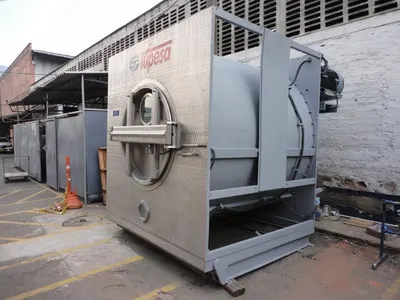

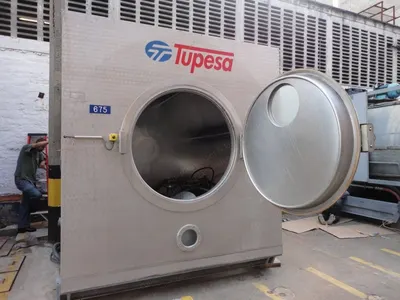

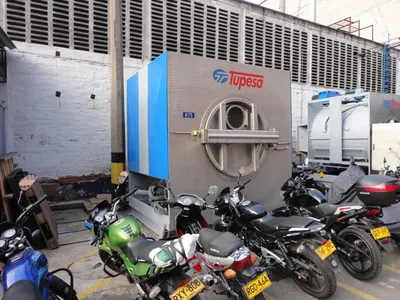

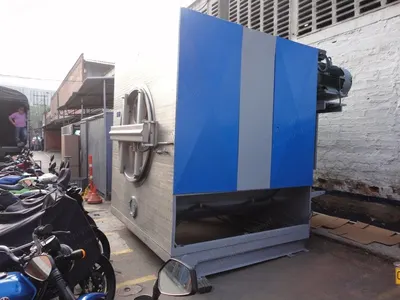

Tupesa, Stone-550 and Stone-750, Stone Washing Machines, 550kg and 750kg Capacity, Direct Steam Heating

Tupesa, Stone-550 and Stone-750, Stone Washing Machines, 550kg and 750kg Capacity, Direct Steam Heating

Description

  1. Overview
    1. Two units of Tupesa stone washing machine model 550, reconditioned and painted recently.

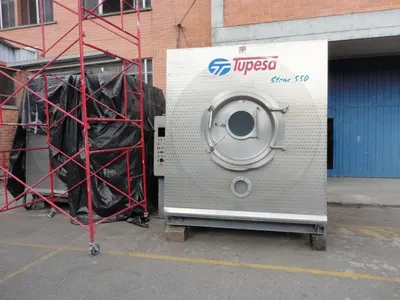

    2. One unit of Tupesa stone washing machine model 750, reconditioned and painted recently.
    3. One additional stone 750 unit available.
    4. Frontal machine for washing and treating garments with enzymatic and stonewash processes.

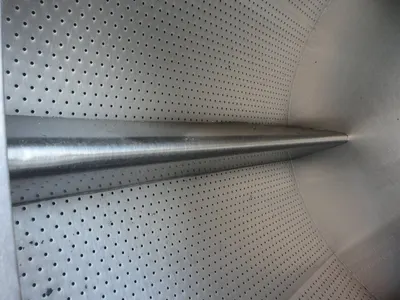

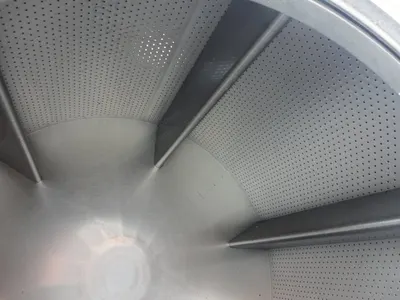

    5. Built in stainless steel AISI-304.

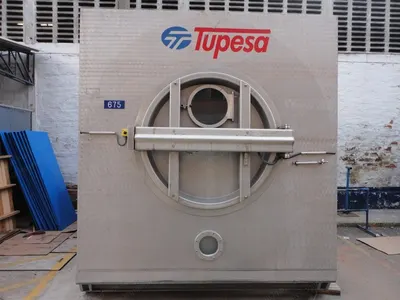

    6. Front loading and unloading door with tilting for automatic garments unloading.
    7. Galvanized steel chassis.
    8. Direct steam heating.
    9. Programmer for automatic processes.
    10. Speed inverter.
  2. Specifications: Model Tupesa Stone-750
    1. Loading capacity: 750 kg.
    2. Drum diameter: 2400 mm.
    3. Drum depth: 1800 mm.
    4. Drum plate thickness: 6 mm.
    5. Transmission: engine with double transmission by toothed wide-band belts synchronized to the drum shaft.
    6. Water inlet: 2 pneumatic valves of 3”, through automatic liter counter.
    7. Steam inlet: 1” ¼ pneumatic valve.
    8. Compressed air inlet: ¼” pneumatic maintenance unit.
    9. Chemicals inlet: 1 rear tank of 50 lts. with introduction pump.
    10. Drainage: 2 pneumatic valves (Ø 200 mm).
    11. Controls: manual and automatic by programmer.
    12. Loading/unloading door: frontal with peephole for sample taking (automatic lock).
    13. Garments unloading: hydraulic piston for automatic garments unloading.
    14. Washing speed: 25 rpm with inversion control.
    15. Engine power: 60 hp.
    16. Width without electric panel: 2800 mm.
    17. Width with electric panel: 3200 mm.
    18. Depth: 3600 mm / 4250 mm (unloading).
    19. Height: 3120 mm / 3820 mm (unloading).
    20. Weight: 10,000 kg.
  3. Specifications: Model Tupesa Stone-550
    1. Loading capacity: 550 kg.
    2. Drum diameter: 2000 mm.
    3. Drum depth: 1700 mm.
    4. Drum plate thickness: 6 mm.
    5. Transmission: engine with double transmission by toothed wide-band belts synchronized to the drum shaft.
    6. Water inlet: 2 pneumatic valves of 3”, through automatic liter counter.
    7. Steam inlet: 1” ¼ pneumatic valve.
    8. Compressed air inlet: ¼” pneumatic maintenance unit.
    9. Chemicals inlet: 1 rear tank of 50 lts. with introduction pump.
    10. Drainage: 1 pneumatic valve (Ø 200 mm).
    11. Controls: manual and automatic by programmer.
    12. Loading/unloading door: frontal with peephole for sample taking.
    13. Garments unloading: hydraulic piston for automatic garments unloading.
    14. Washing speed: 28 rpm with inversion control.
    15. Engine power: 40 hp.
    16. Width without electric panel: 2400 mm.
    17. Width with electric panel: 2800 mm.
    18. Depth: 3300 mm / 3990 mm (unloading).
    19. Height: 2900 mm / 3500 mm (unloading).
    20. Weight: 6,700 kg.
  4. Optional Accessories
    1. Speed inverter (4/28 rpm) included.
    2. Prespinning speed inverter (4/130 r.p.m.).
    3. Supplementary water inlet.
    4. Double drainage.
    5. Steam rechamber for indirect heating.
    6. Three fixed-compartments drum.
    7. Three detached-compartments drum.
    8. Set of 1 tank in stainless steel of 50 lts. with introduction pump and complete pneumatic valves.
    9. Set of 2 tanks in stainless steel of 50 lts. with introduction pump and complete pneumatic valves.
    10. Set of 3 tanks in stainless steel of 50 lts. with introduction pump and complete pneumatic valves.
    11. Set of 4 tanks in stainless steel of 50 lts. with introduction pump and complete pneumatic valves.
    12. Temperature, time and liters control kit in manual mode.
  5. Additional Notes
    1. These machines do not extract; they are regular stone washing machines.
    2. Go up to 50 rpm.
    3. A hydroextractor next to these machines is necessary to extract the water out of the garments.
