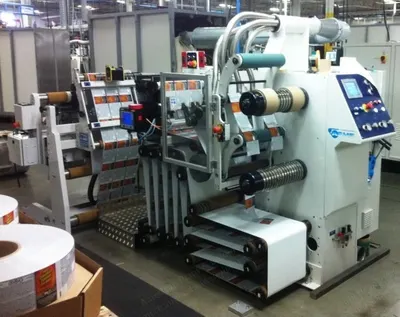

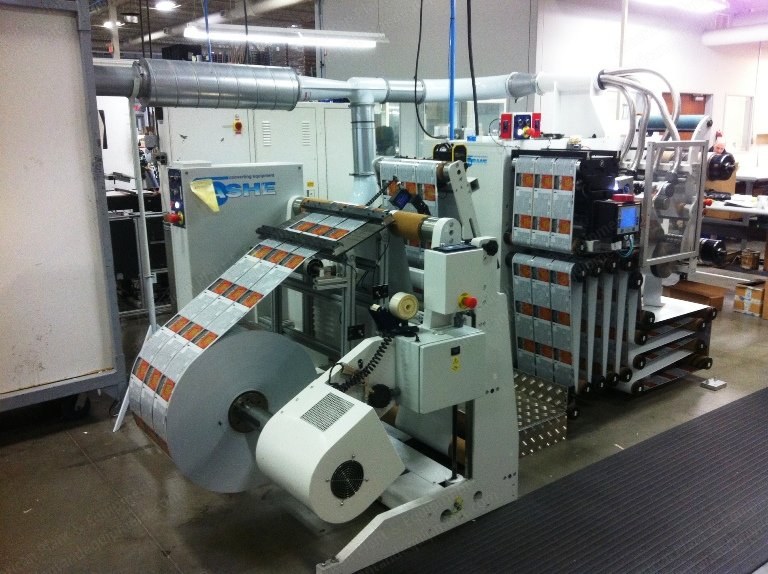

Ashe, Duplex Slitter/Rewinder, 2011, 16" Max Rewind, 1500 FPM

Ashe, Duplex Slitter/Rewinder, 2011, 16" Max Rewind, 1500 FPM

Description

  1. Overview
    1. 2011 Ashe duplex slitter/rewinder
    2. Two motor drive with a maximum speed of 1500 fpm
    3. Touch screen controls
  2. Rewind Specifications
    1. Comes with one pair each of air differential rewind shafts, sizes 3 in and 6 in
    2. Maximum rewind diameter of 16 in
    3. Pneumatic top riding rolls
  3. Slitting System
    1. Slitting is either razor or shear with the ability to take cull or bleed cuts from the web
    2. Trim system is included as shown in the photos
  4. Tension and Guiding
    1. Multiple roll accumulator to aid in tension control during accel and decel, this system assures good line guiding to the knives
    2. Automatic line or edge guiding
    3. Guider movement of +/- 3 in
    4. Automatic unwind and rewind tension control
  5. Unwind Specifications
    1. Shaft type with floor lift
    2. Unwind core sizes of 3 in or 6 in
    3. Unwind maximum diameter is 30 in
  6. Additional Features
    1. Splice table with pneumatic web clamps
