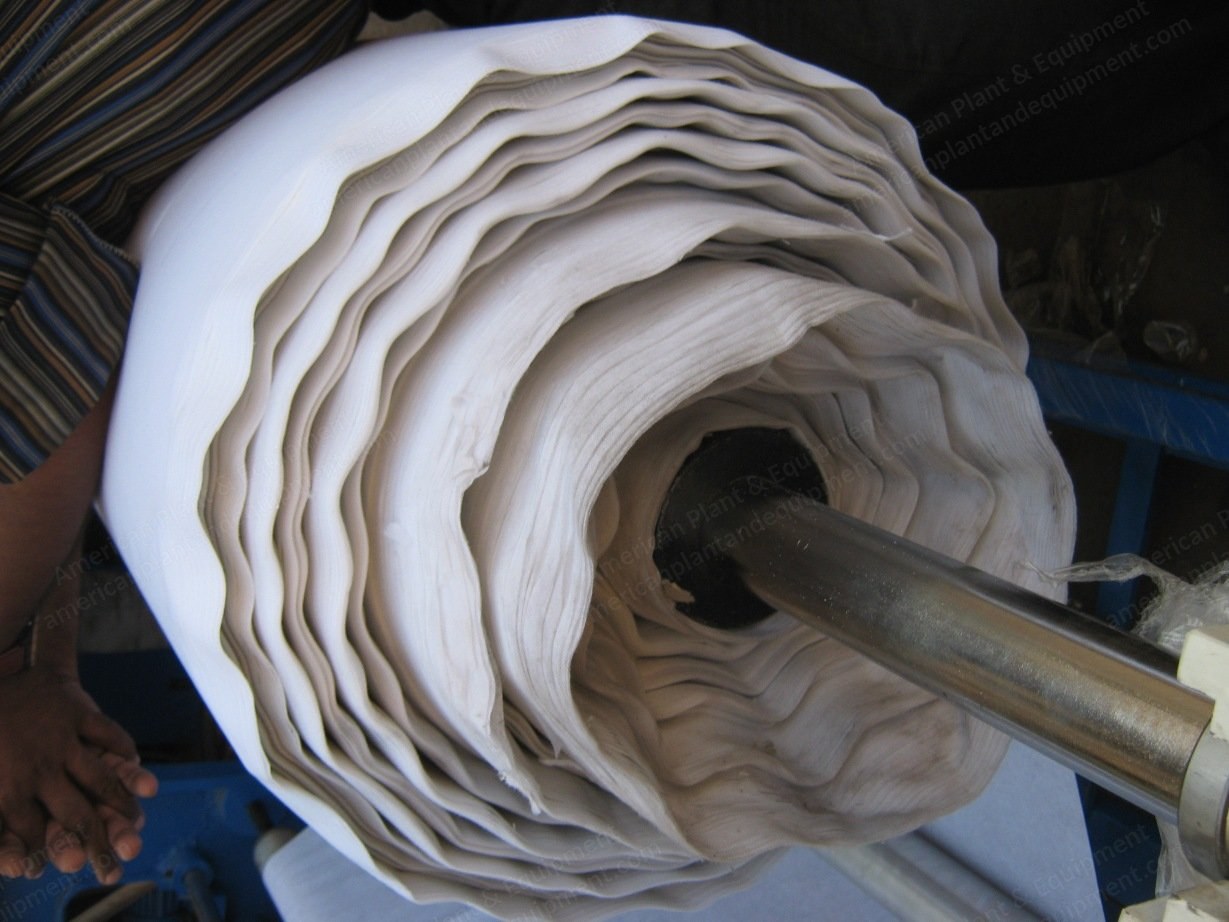

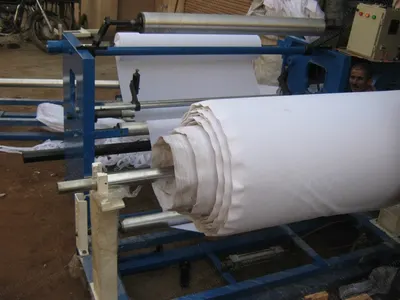

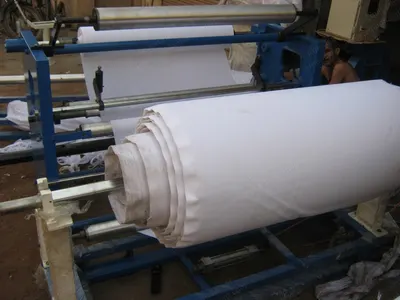

Description Overview Can make jumbo roll to small roll with selvage trimming facility along with edge guiding facility Jumbo to small roll rewind station Nip roll assembly Specifications Maximum fabric roll width: 1600mm (64") Maximum finish roll diameter: 400mm (16") Approximate weight: 550 kg Approximate machine dimensions: 2.5 m (length) x 2.5 m (width) x 1.5 m (height) 3 phase, 3 hp 440V/50Hz AC motor for rewind station 3 hp AC Emerson/equivalent make AC variable drives (4 set) aluminum guide rolls with shaft Control panel for AC variable drive, counter meter, blower and edge guider Rewind air-shaft suitable for 76mm paper core Heavy mechanical clutch and break set MS heavy duty rewind station suitable for 400mm rewind diameter (2 set) pneumatic rotary trimming cutter (2 units) 1 hp blower system for trimming removal Edge guide system Photo cell (ultrasonic sensor) Motorized actuators PMDC motor Control panel (PLC) Movable Unwind System Movable unwind station with edge guiding system Bearing bracket mounted on unwind station 2 aluminum roll fitted with MS channel Micro adjuster bracket with adjusting bar for edge guide sensor 50mm shaft with core, cone, check nut, etc. suitable for 76mm paper cone Mechanical brake with unwind shaft
