Marzoli, Cotton Mill Denim, 1997, 16960 Spindles, Daily Production 14000kg

Marzoli, Cotton Mill Denim, 1997, 16960 Spindles, Daily Production 14000kg

Description

  1. Overview
    1. Complete mill of 16,960 spindles for cotton counts with Caipo slubs device and lycra option.
    2. Daily production of 14,000 kg in 24 hours (3 shifts).
  2. Opening And Blowroom
    1. 02 B12 Marzoli automatic bale plucker, year 1997, working width 2300 mm, lattice length 27,100, 54 bales lay down each side.
    2. 02 B21/4 Marzoli permanent magnet, year 1997, feeding tube diameter 300 mm.
    3. 02 FA 390 Jossi metal detector, year 1997, feeding tube diameter 300 mm, complete with discharge box for detected metals.
    4. 01 B92/6 Marzoli 3-way distributor, year 1997, pneumatic device, feeding tube 300 mm, exit tubes 300 mm.
    5. 02 B142 Marzoli multimixer with 4 cells, year 1998, working width 1200 mm, pneumatic fiber removal, frequency inverter on board.
    6. 01 HP.15 Marzoli extraction fan, year 1997.
    7. 03 B41 Marzoli cage condenser, year 1997, working width 1000 mm, horizontal position predisposed for B34 opener.
    8. 03 B34 Marzoli horizontal opener, year 1997, working width 1200 mm, Kirshner beater with 3 lines of pinned rug, permanent magnet in exit, main motor drive frequency inverter (fitted into the B95/4 control panel).
    9. 95 Marzoli sinottic control panel, year 1998, complete panel for the opening and cards.
    10. B151 Marzoli feeding fan for carding line, year 1998, main motor 7.5 hp.
    11. 02 FA320 Jossi spark detector, year 1997.

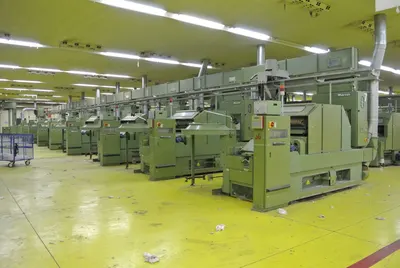

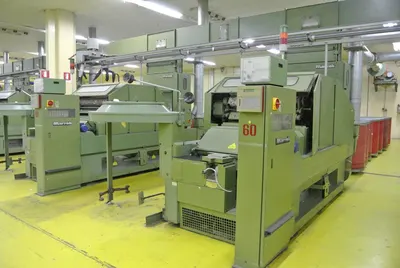

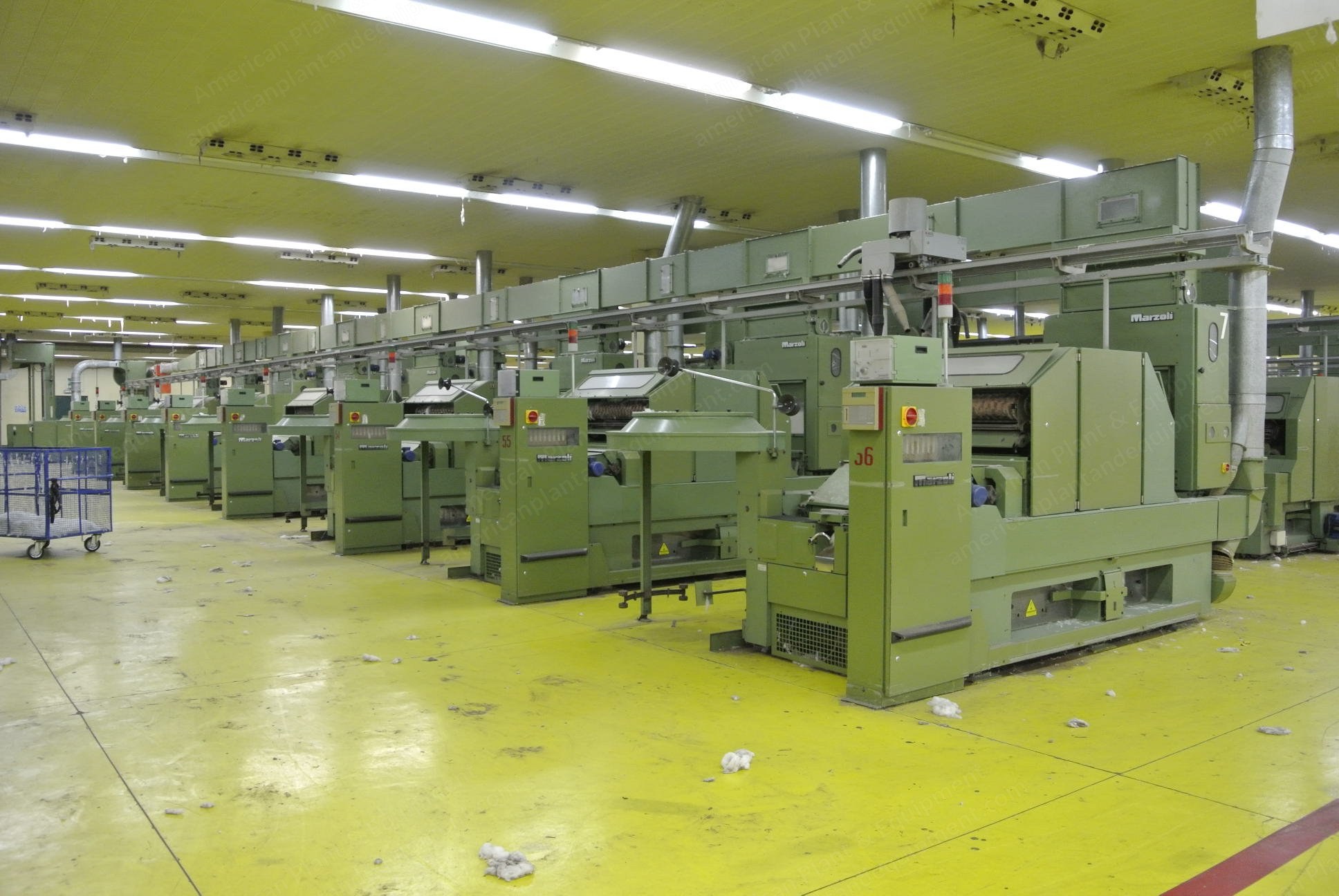

  3. Carding Department
    1. 23 B136 Marzoli chute feeds for card, year 1997, working width 1000 mm, centralized waste collection, frequency inverters on board.
    2. 23 CX300 Marzoli high production cards, year 1997, feeding by B136 chute feed, working width 1000 mm, lickeren diameter 350 mm, under lickeren fixed carding segment, trash master and carding segment Hollingsworth, revolving flats, drafting for cotton, Loepfe SLT-4 autoleveller fitted in the control panel (long and short terms), centralized waste collection intermittent and splitted single delivery with coiler RD Marzoli driven with belt, exit cans 40” x 45” (1020 mm x 1200 mm), automatic cans change pneumatic, safety covers CE approved, main motor with brakes.
    3. 04 ACS 15 Magitex travelling cleaner for carding machine complete with rails, year 1998.
  4. Drawing And Roving Department
    1. 09 SH1-D Vouk drawing frames, year 1998, feeding cans with cans of 40” x 45” (1020 mm x 1200 mm), VA creel for parallel cans, 08 coupling for the creel single delivery pneumatic drafting device, drafting gauge 180 mm, exit cans 40” x 45” (1000 mm x 1200 mm) wheels included, pneumatic cans changer, DCC device with 5 cans in stand by and one in working position.
    2. 07 SH802 Vouk drawing frames, year 1997, feeding cans with cans of 40” x 45” (1000 mm x 1200 mm), VA creel for parallel cans, 08 coupling each head, two deliveries, pneumatic drafting device, drafting gauge 180 mm, Uster electronic autoleveller (long term only), mod. Uster ADC E2, exit cans 24” x 45” (600 mm x 1200 mm) wheels included, pneumatic cans changer, DCC device with 5 cans in stand by and one in working position.
    3. 04 BCX 16 Marzoli roving frames, year 1998/99, feeding creel for cans of 24” x 45” (600 mm x 1200 mm), 30 trolley for the cans transport (4 cans each trolley), photocells in entry and exit, drafting device SKF PK 1500, 120 spindles each machine, 3 over 3 medium cradle SKF, bottom rollers bearing are SKF, suspended flyers, top clearers device, bobbin of 6” x 16” mm (152.4 mm x 406.6 mm), integrated automatic doffing device, predisposed for UTIT transport device.
    4. 04 ACS18 B Magitex travelling cleaner, year 1998/99, complete with rails and central collection box.

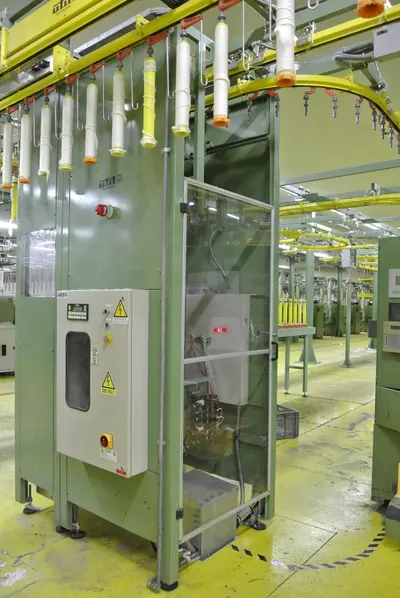

    5. 04 UTIT-Wagner roving transport circuit, complete with cleaning and tube revolving station, year 1997/98.

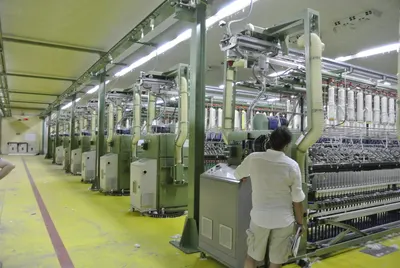

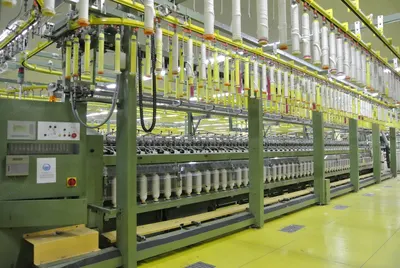

  5. Spinning And Winding Department
    1. Optional device fitted on each frame: Caipo electronic slub device mod. 1510 from 1998/2004.
    2. 20 ACS36 F Magitex travelling cleaner, year 1997, complete with rails and linked with collection in the spinning end stock.
    3. 01 UTIT automatic and electronic roving spool feeder, with automatic selection of the position.
    4. 20 UTIT-Wagner roving transport circuit, year 1997.

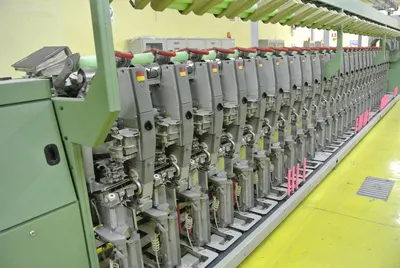

    5. 20 AC238 Schlafhorst cone winding machine, year 1997 model GKU, all the machine right hand, feeding by link feeder Schlafhorst, frames of 30 spindles each 26 head fitted on the frame, splicer Schlafhorst DZ, drums in stainless steel with 2 turns symmetric type, drum type 146-011.462 UG 2 SY 034 (2 turns symmetric), 6” traverse, take up 4º20 conicity, Uster D5 clearers, detaching head MK-C30 AC, air discharge into the floor.
    6. 20 ACS 18 Magitex travelling cleaner, year 1996, complete with rails and centralized collection into the spinning frames.
    7. 01 UTIT-Wagner pallets and packing robot, year 1998, 20 pallets positions for the automatic pallet formation.
    8. 01 SIPI electronic scale station, with labeling and wrap zone of the readymade pallets.
  6. Accessories
    1. 300 Crespi Giuseppe 40” x 45” HPDE white cans for card with pantograph.
    2. 328 Crespi Giuseppe 40” x 45” fiber red cans for card with pantograph.
    3. 628 Crespi Giuseppe 40” x 45” fiber yellow cans for card with pantograph.
    4. 900 Crespi Giuseppe 24” x 45” HPDE white cans with spring and plate.
    5. 720 Crespi Giuseppe 24” x 45” HPDE white cans with spring and plate.
    6. 30,000 plastic roving tubes in different colours.
    7. 30,000 plastic spinning tubes.
