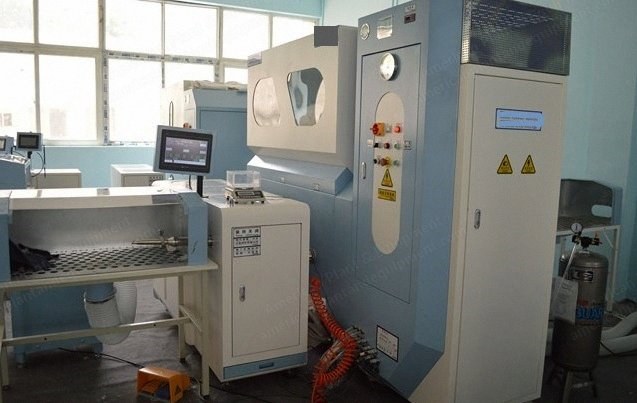

Description Overview Used for down filling for garment and quilter Capable of 90, 80, 70, 60 and 50 dry feather High-pressured air is used to absorb feather with automatic weighing system Components Feeding blower Control panel and 2 silos 6 weighing devices 2 filling nozzles 2 touch screens Portable dust-free machine (not in the picture) 2 independent filling nozzles Specifications Each panel can be set to 100 grids, and the machine can save up to 100 sets of data for different panels Filling speed: 1 to 8 g/sec (adjustable) Single down loading volume: approx. 10 to 12 kg (for duck down) Filling accuracy: ±3% Quantitative accuracy: 0.01 g Controlled by computerized program and touch screen Air pressure: ≥0.8 m³/min; ≥7.5 kW Min. air pressure: ≥0.58 m³/min Air tank: ≥0.6 m³ Dimensions Main machine: (L) 2430 mm × (W) 850 mm × (H) 2040 mm Weighing box: (L) 1600 mm × (W) 570 mm × (H) 1050 mm Floor space for all equipment: 4000 mm × 6000 mm Additional Features With central dust-removal system
