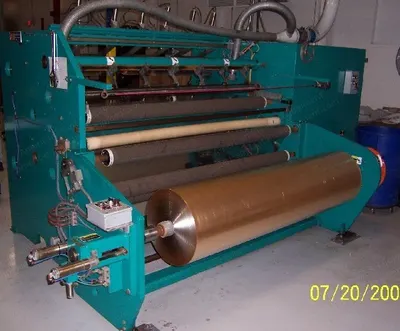

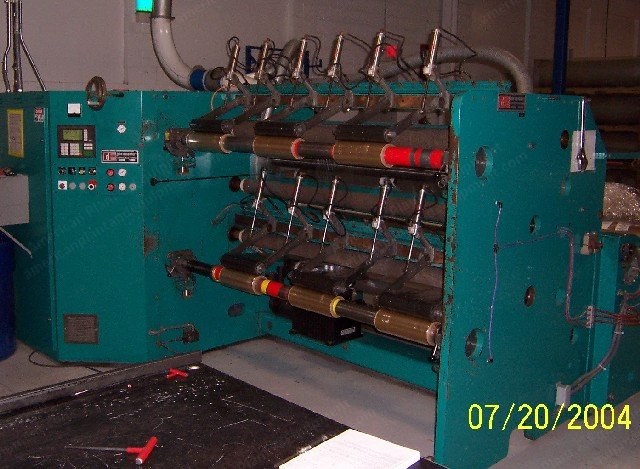

Description Overview Dusenbery model 835 Designed to run materials such as.0005 pvdc through 25 mil ridge films and paper Manufactured in 1997 Specifications 3" aluminum rewind shafts 1500 fpm Cork covered pull rolls and idlers 24" rewind diameter with top riding rolls 6 pair of pneumatic top riding roll arm assemblies Razor in the groove slitting (can be easily changed to shear cut or razor in air) with 24 razor holders Mitsubishi plc operator interface through a model mta-g1 touch key pad and lcd display Two motor drive: 10 hp main and 20 hp rewind (dc) Fife p-50 edge guide Driven bowed roll Two web tail clamps for holding slit tails during unloading Reversing rewind Power requirements: 480-3-60 Two trim nozzles Remote speed control at the unwind Remote fine adjustment edge guide control at the front of the machine and rear of machine Unwind System Integral unwind; shaft type with special auto chucking of the unwind shaft Closed loop unwind tension control using a load cell 40" unwind diameter, maximum unwind roll weight of 2750 lbs, +/- 1.5" side register, 3" unwind shaft Condition This machine was slitting.0005" pvdc In great condition Included Documentation All of the original documentation is included: electrical prints, mechanical prints, operator instruction manual and spare parts list
