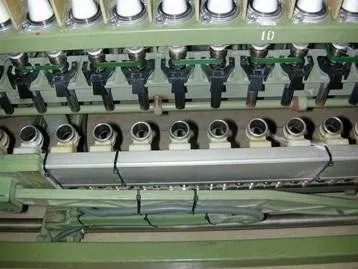

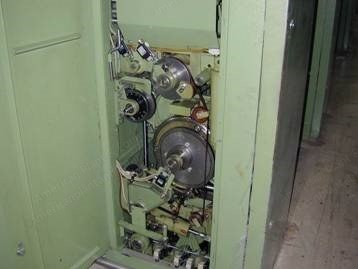

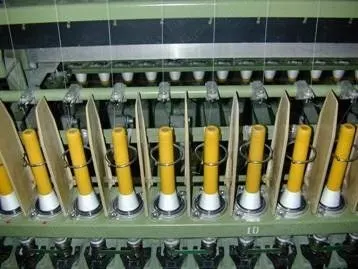

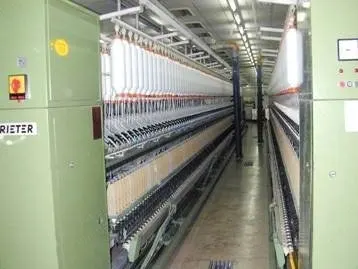

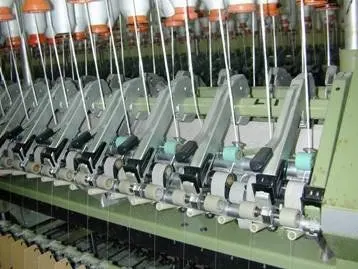

Rieter original air type, R2P, short staple, a: 36 mm
Specifications
Lift: now supplying 9. bobbins, can use 7. to 8. bobbin
Gauge: 75 mm
Ring: 41 mm ring flange, max. ring no. 2, 4.0 mm
Diameter: 51 mm
Bottom r/o: 27-25-27 mm
Spindle wharve: 21 mm diameter, aluminum tip type
Otc: yes, Korean made (Taeryung)
Auto doffer: yes, yoke type, modified to G30 type auto-doffer in year 1996
With new type of link yoke, new aluminum rail instead of steel rail, and new bobbin gripper which can be easily removed from the rail when trouble so as to avoid any breakage of bobbins and spindles
Condition
Status: now stopped after running, any time test running possible
Speed control: starting with star-delta system
Slow/fast speed: by vari-pitch sheave
Still no troubles on electronic and mechanic
Electrical
Electricity: 440 V / 60 Hz
Motor main: 22 kW
Motor pneumafil: 2.2 kW
