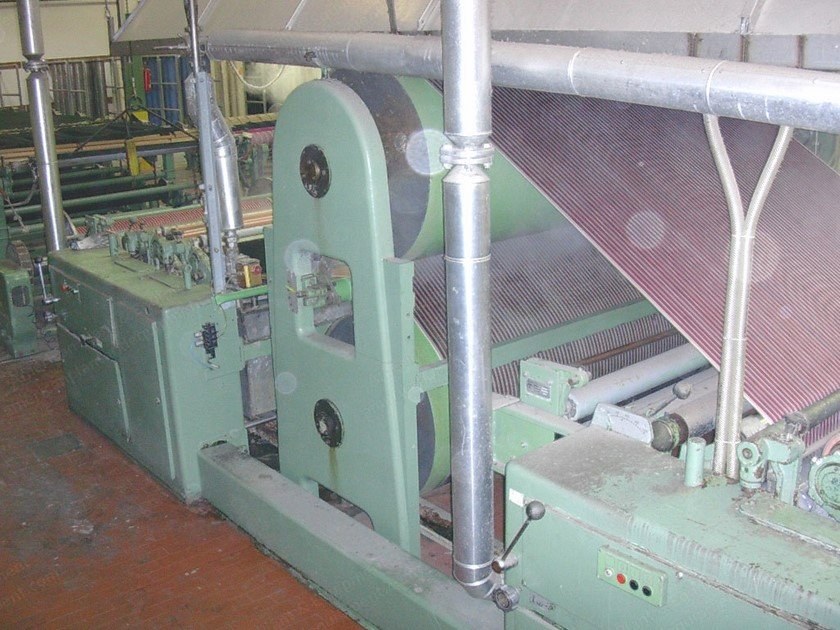

Width 2300 mm, year 1984 (complete reconditioned in year 2002)

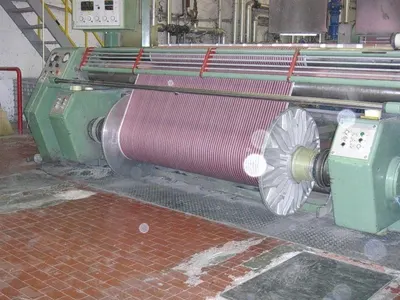

Head machine mod. WL - working width 2300 mm = 90 inches (serial n.121510119)
Voltage 380 V

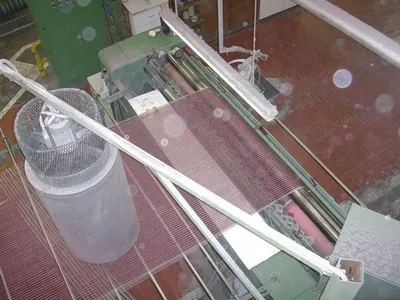

Sizing Boxes
2 sizing box mod. LC - first sizing box at low pressure (800 kg)
Second sizing box fitted with Benninger-Zell pressure rollers at medium pressure (3000 kg) - working width 1800 mm (serial n.1270119)
Four pressure rollers for each sizing box (two lateral and two up rollers)

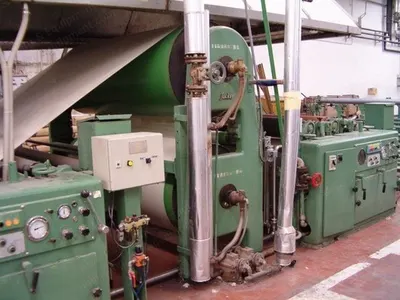

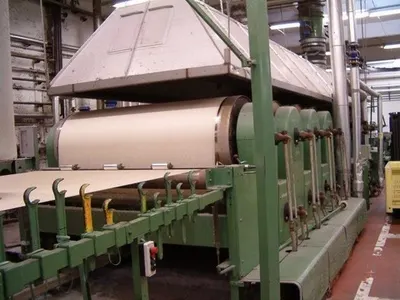

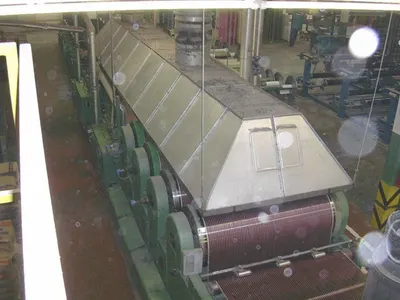

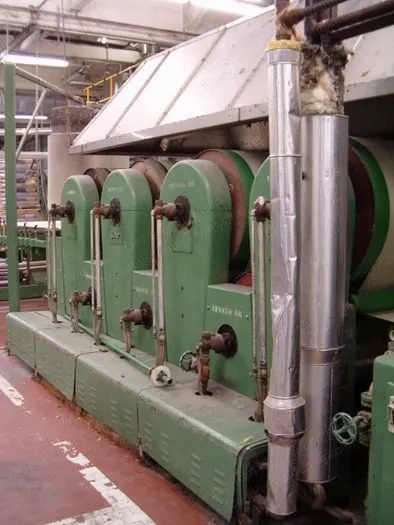

Drying Cylinders
7 drying cylinders mod. ZT + 2 drying cylinders fitted between the two sizing boxes for preliminary drying (serial n.122510119)

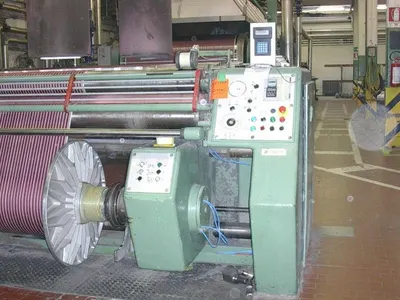

Unwinding and Controls

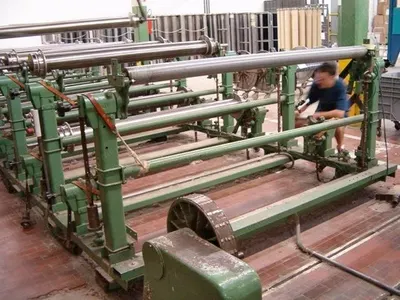

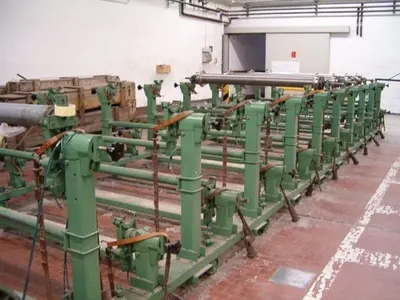

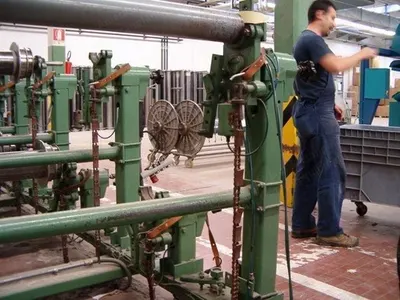

1 sectional beam unwinding breaker

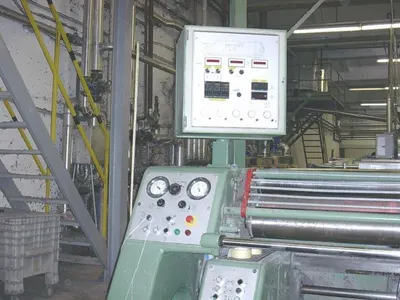

Unwinding control mod. AB
Moisture control by Mahlo (Textometer RMS + Elotex DMA)

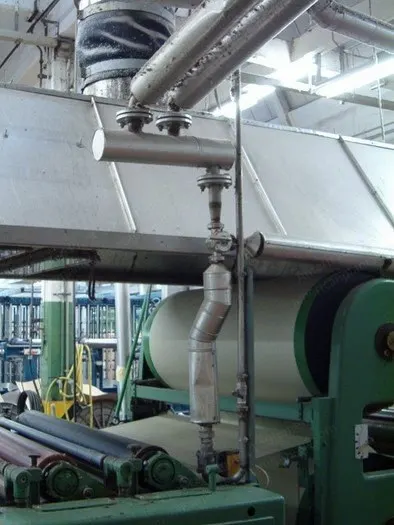

Dust suction apparatus (not original Sucker)

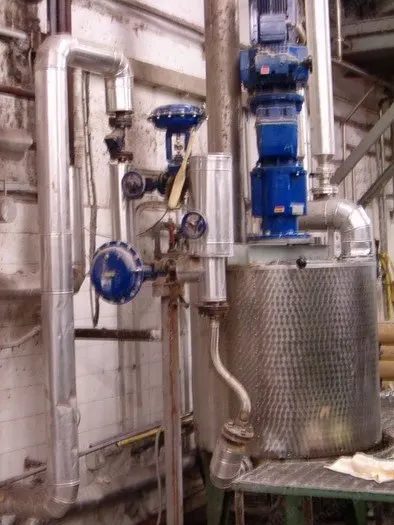

Preparation Sizing Kitchen
Mod. TK (600 lt) - (serial n.1270131)
2 tanks (800 lt)
Major Spare Parts (Original Sucker)
1 head roller 2700 mm
2 pressure rollers mod. Dyco
1 pressure roller
1 lateral pressure roller

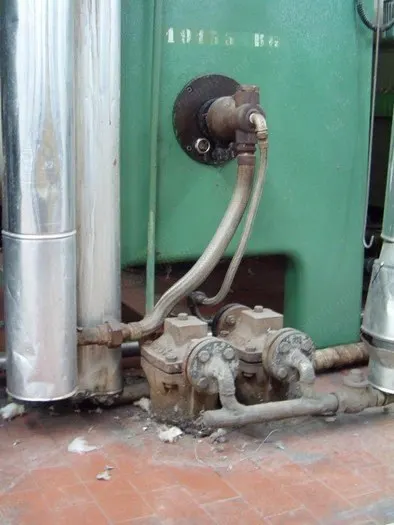

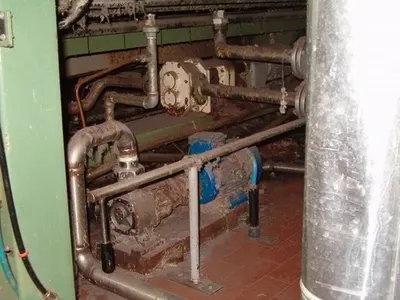

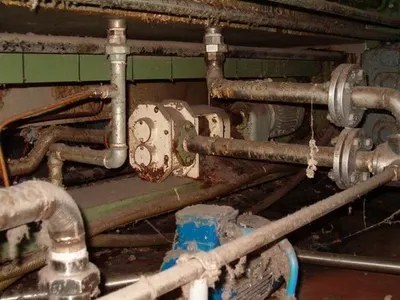

1 sizing pump
15 warping beams working width 1800 mm
Reconditioning History
In August 2002 the entire machine underwent a complete intensive revision and reconditioned
Many mechanical and electrical parts have been changed with new parts provided directly by Sucker and fitted with the assistance of a technician from Sucker Muller company
The entire electrical cabinet has been changed

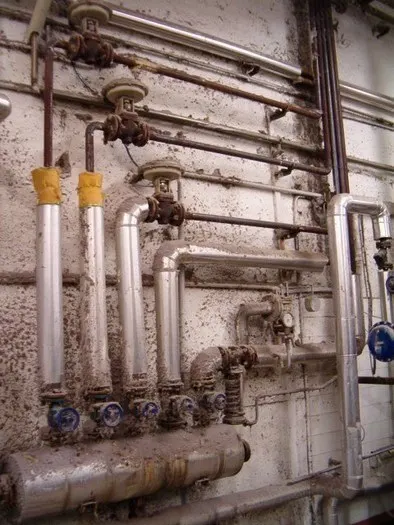

Air junctions and transmission were completely changed with new ones
