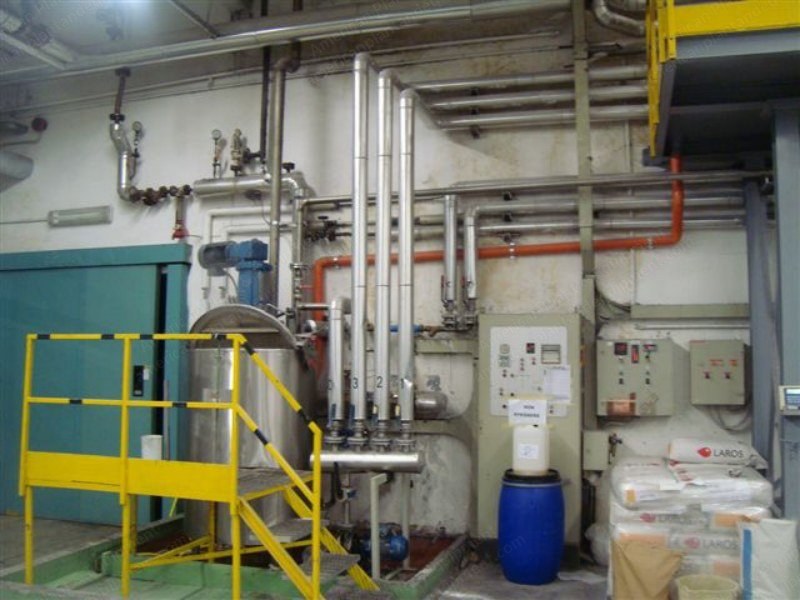

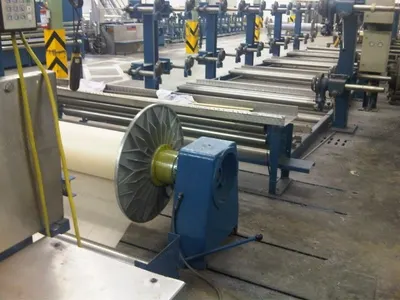

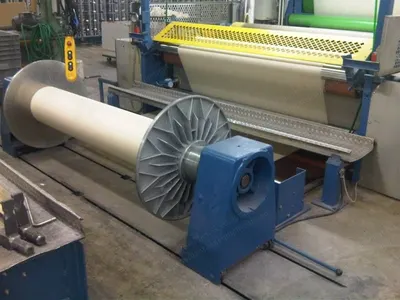

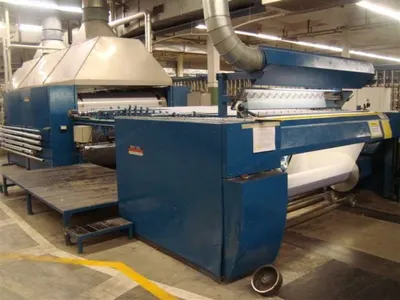

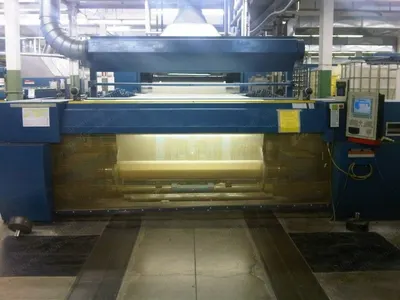

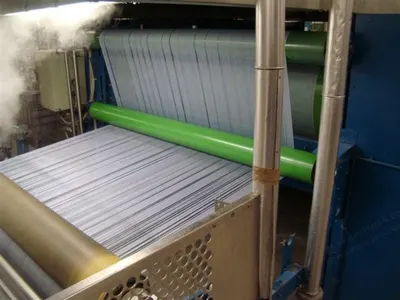

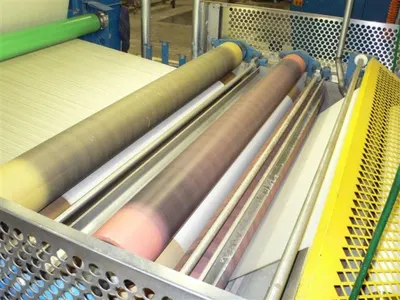

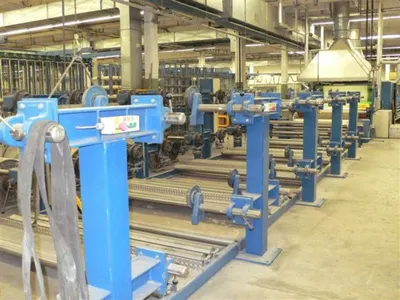

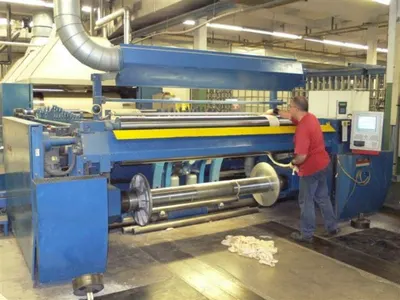

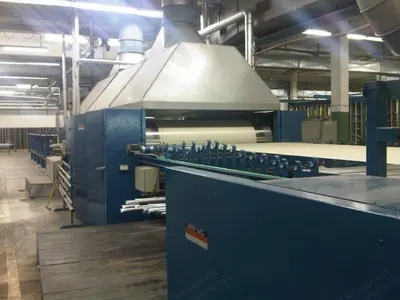

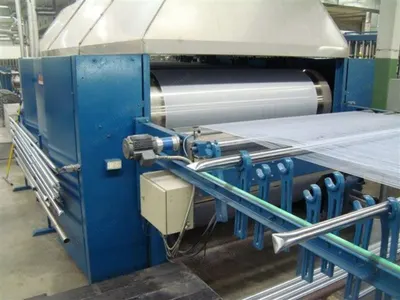

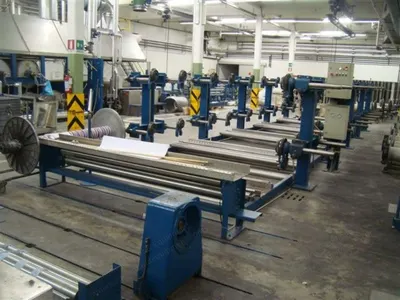

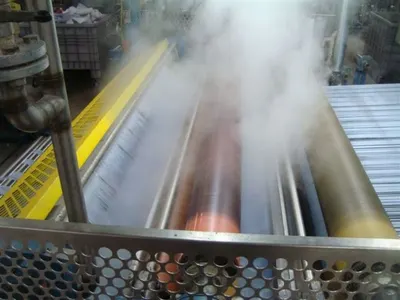

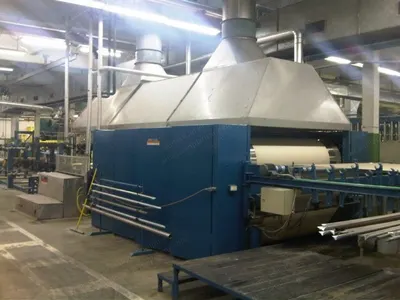

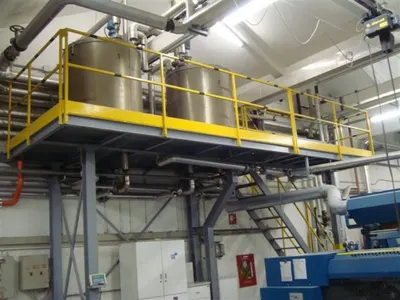

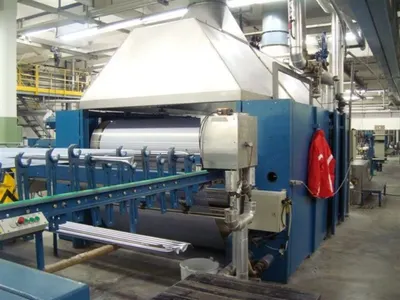

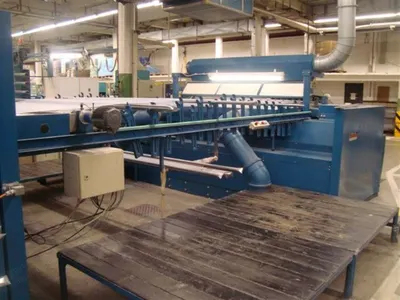

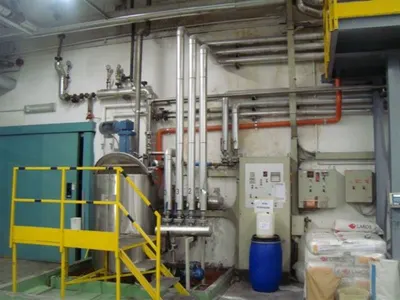

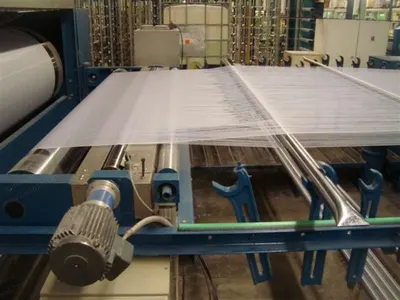

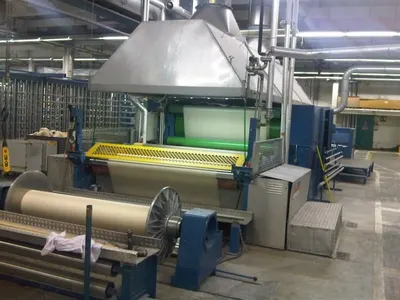

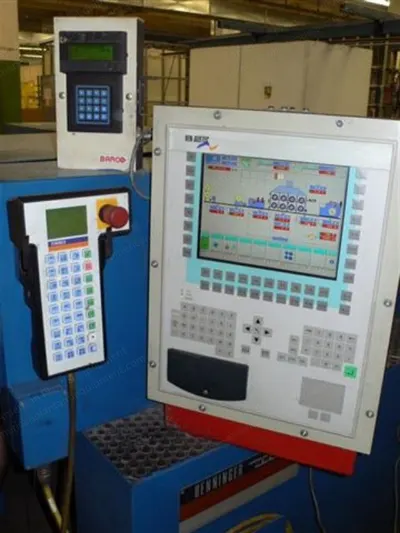

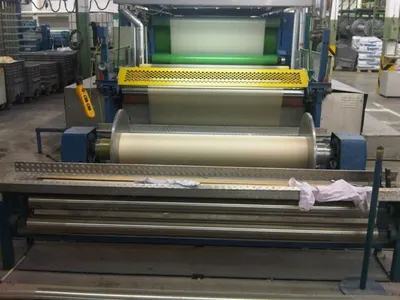

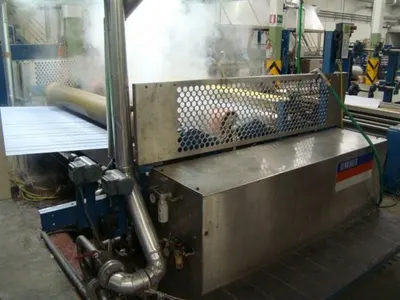

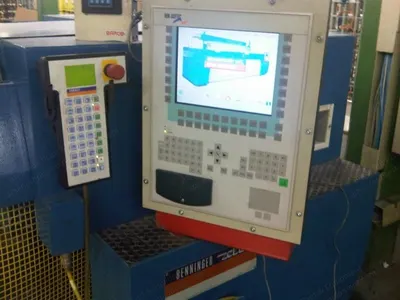

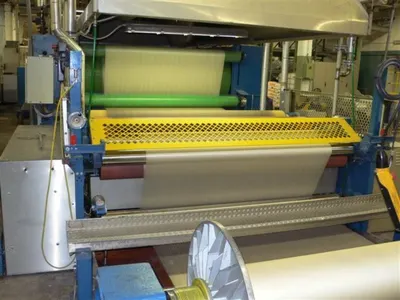

Description Overview Benninger Zell sizing machine model Ben-Sizetec Working width 2200 mm Year 1994 Sectional and fractional system Model BB-S/ZT4/4/TKD Serial number A13715 Unrolling Devices One sectional beam unrolling device model SWA with loading cell for measuring the outgoing tension Electro-pneumatic breaking system for sectional beam unrolling Maximum beam diameter 1000 mm One fractional beaming unrolling device with capacity up to 20 positions Electro-pneumatic breaking system for fractional beaming Sizing Box One sizing box model TDK with working width 2200 mm and total width 2400 mm Stainless steel box with total capacity of 240 liters with direct steam injection Lower vessels with indirect heat system Automatic size box feeding Handymat for start and stop and machine regulation Drying Section One drying section device model ZT8 with working width 2200 mm Six drying stainless steel cylinders covered with teflon plus two cylinders without teflon Four electronic temperature regulations Two air extractions Additional Devices One oil/grease application device model CV One yarn splitting device Seven rods for sectional beams Nineteen rods for fractional beams One humidity Mahlo control device model RMS-7S number 1670/1/10597 One beam rolling device model BB for beams up to 1000 mm diameter Yarn traction made up of three rolls One pressurized roller device Tension and pressure measure devices Automatic beam lift device inclusive of adaptors for different beams Extension reed for ends width control Mirror for easy yarn control One Handymat for start and stop and machine regulation One dust suction device Size Kitchen and Process Control One complete size kitchen preparation including two tanks for size storage One fully automatic Bensizetec process control device including hardware and software Electrical One external electric cabinet
