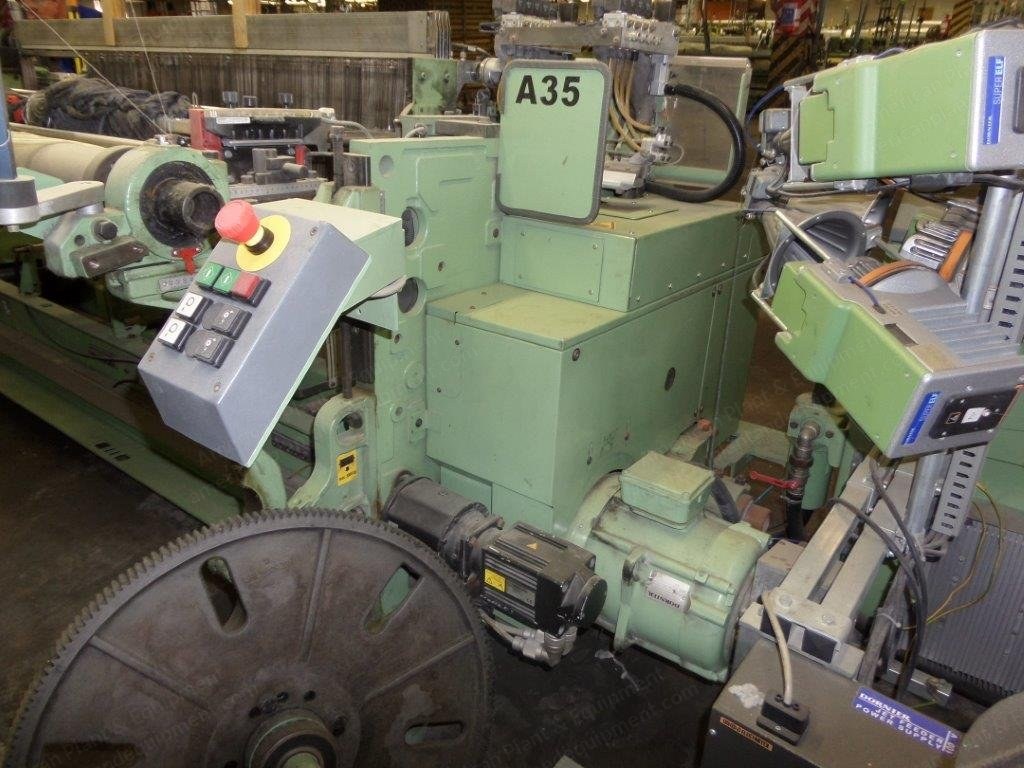

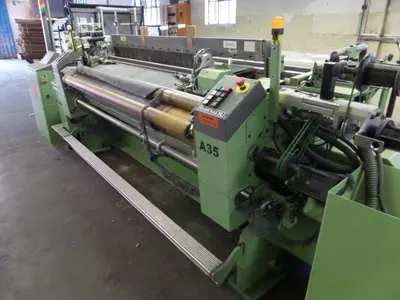

Dornier, AW S4-E, 2006, Air Jet Weaving Machine, 2100mm, 4 Colors, Staubli Cam Box

Dornier, AW S4-E, 2006, Air Jet Weaving Machine, 2100mm, 4 Colors, Staubli Cam Box

Description

  1. Overview
    1. Dornier air jet weaving machines
    2. Model AW S4/E
    3. Year 2006

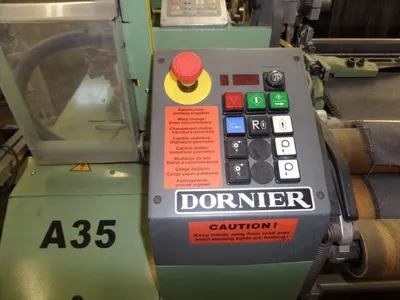

    4. Dialog panel at 2
    5. Nominal width 2100 mm
    6. 4 colors
  2. Specifications
    1. Staubli cam box type 1661
    2. 4 shafts installed
    3. Warp stop motion with 6 bars
  3. Included Accessories Per Machine

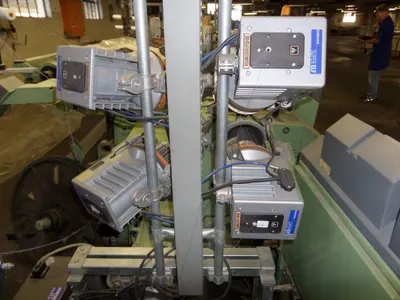

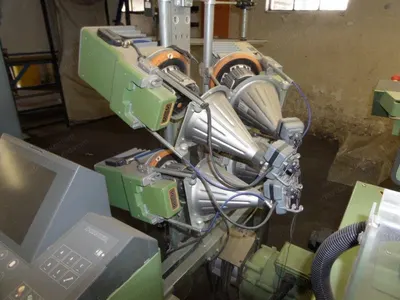

    1. 4 weft feeders Roj Super Elf
    2. 2 warp beams with flange diameter 1000 mm
    3. 2 cloth rollers
    4. 4 heald frames
    5. 4000 healds
    6. 4000 droppers
    7. 1 set of cams for plain weave
    8. 1 set of cams for twill weave
