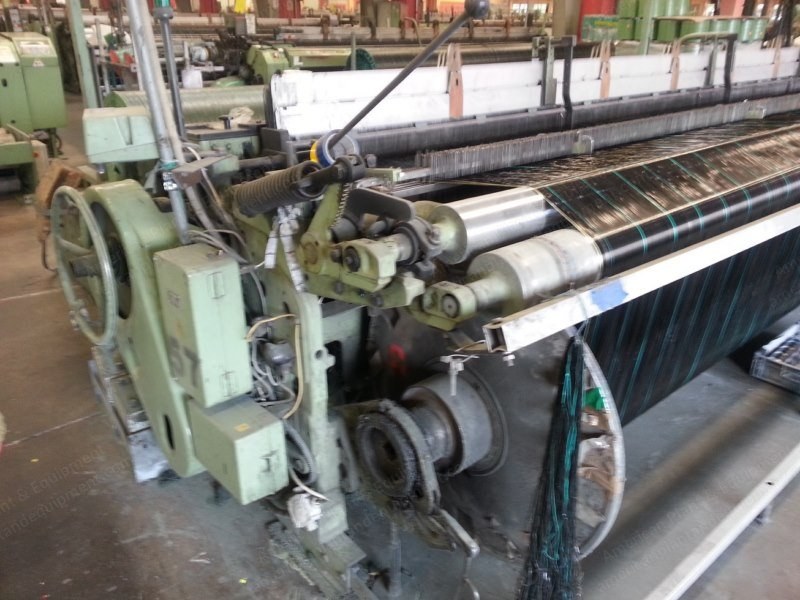

Sulzer, TW11 213" ES 105 E10, Working Width 5400mm, 1 Color, Tappet Motion

Description

Overview
1. Model: 213 ES 105 E10 (nine units) and 213 ES 105 E10 D1 (one unit)
2. Weft colours: 1 per loom
3. Mix: No
Shedding
1. Tappet motion: Yes
2. Installed heald drives: 6 (eight units), 4 (one unit)
3. Number of cams: 6 (eight units), 4 (two units)
4. Number of healds in loom: 6 (six units), 4 (four units)
5. Type of healds: Grob flat 331 J
6. Dobby: Not specified
Weft Brake
1. Mechanical: Not specified
2. Electronic: Lopfe
Projectiles
1. Type of projectiles: D1
2. Guiding type teeth/block: Single
3. Projectile for fullwidth: 27
4. Force: 3000
Weft Stop Sensor
1. Eltex: Not specified
2. Loepfe electronic
3. Mechanic: Not specified
Warp Stop Sensor
1. Producer: Not specified
2. Warp stop bar: 3
3. Droppers: 5600 165x11x0.5 (seven units), 2500 165x11x0.5 (three units)
4. Heddles: 5600 (seven units), 2500 (three units)
Let-Off
1. Type: Mechanical
2. Ratio: 03:39 (six units), 02:39 (three units)
Take-Up
1. Type: Mechanical
2. Wheels: 4
Warp Beams
1. Half-beams per loom: Not specified
2. Full beams per loom: 1
3. Flange diameter per loom: 940 mm
4. Tube diameter: 260 mm
5. Square hall: 45 x 45 mm
Fabric Roll
1. Number per loom: Not specified
2. Big batch winder: Schultheis (eight units), Grob (one unit)
Selvedges
1. Tuck-in left right: Yes
2. Tuck-in middle: Not specified
3. Picking point: 105
4. Leno left, right, middle: Not specified
Lubrication
1. System: Texmer
2. Nebula: Filc
