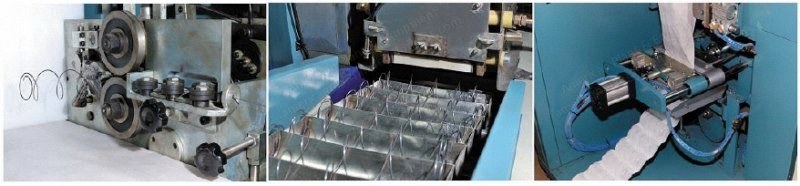

NovaStar, SB230, Pocket Spring Machine, 48 Springs/min, 1.6 to 2.2mm Wire Gauge, 1800kg (New)

NovaStar, SB230, Pocket Spring Machine, 48 Springs/min, 1.6 to 2.2mm Wire Gauge, 1800kg

Description

  1. Overview
    1. SB230 pocket spring machine
    2. Computerized operation system
    3. Removable independent heat treatment device
    4. Changeable vertical spring transfer structure
    5. Various customized ultrasonic welding seam
    6. Low and easy maintenance, economical investment
  2. Performance
    1. Performance: 48 springs/min
    2. Spring type: barrel/cylindrical
  3. Air Requirements
    1. Air consumption: approximately 30 m3/h
    2. Air pressure: 0.6 to 0.7 mpa
  4. Electrical Specifications
    1. Power consumption in total approximately 10 kw
    2. Voltage: 3ac, 480 v – frequency: 50/60 hz
    3. Power requirements: input fuse: 25 a – cable section: 4 x 10 mm2
  5. Operating Conditions
    1. Working temperature: +5 °c to +45 °c
    2. Weight approximately 1800 kg
  6. Non-Woven Fabric Consumption Material Data
    1. Fabric density: 45 to 90 g/m2
    2. Fabric width: 450 to 600 mm
    3. Inner diameter of fabric roll minimum 60 mm
    4. Outside diameter of fabric roll maximum 600 mm
  7. Steel Wire Consumption Material Data
    1. Wire gauge: 1.6 to 2.2 mm
    2. Inner diameter of wire roll minimum 320 mm
    3. Outside diameter of wire roll maximum 1000 mm
    4. Acceptable weight of wire roll maximum 800 kg
  8. Working Range
    1. Standard option 1
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø55 to Ø70
      3. Pocket spring height: 80 to 140
    2. Standard option 2
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø55 to Ø70
      3. Pocket spring height: 100 to 160
    3. Standard option 3
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø55 to Ø70
      3. Pocket spring height: 120 to 180
    4. Standard option 4
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø55 to Ø70
      3. Pocket spring height: 140 to 200
    5. Standard option 5
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 80 to 140
    6. Standard option 6
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 100 to 160
    7. Standard option 7
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 120 to 180
    8. Standard option 8
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 140 to 200
    9. Special option 1
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 200 to 240
    10. Special option 2
      1. Wire gauge: Ø1.6 to Ø2.2
      2. Spring waist diameter: Ø60 to Ø75
      3. Pocket spring height: 240 to 260
