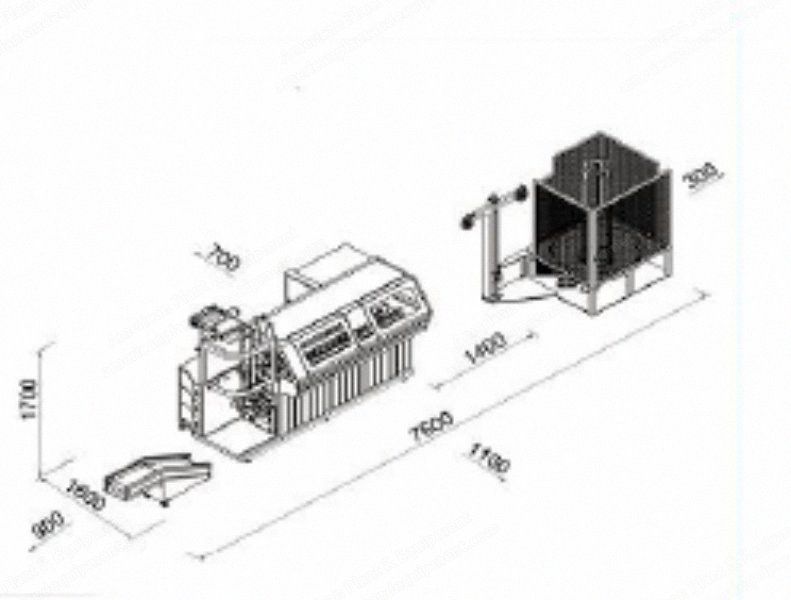

NovaStar, SB231, Pocket Spring Machine, 80 Springs/min, 1.6 to 2.1mm Wire Gauge, 14kW (New)

NovaStar, SB231, Pocket Spring Machine, 80 Springs/min, 1.6 to 2.1mm Wire Gauge, 14kW

Description

  1. Overview
    1. High efficiency 80 springs/min SB231 pocket spring machine
    2. Electronically controlled coiling head
    3. Computerized spring dimension setting system
    4. Computerized various spring data saving system
    5. Automatic pocket strings cutting device
    6. Accurate servo spring conveyor system
    7. Intelligently automatic alarm system
    8. Flexible heat treatment device
    9. Smart joint device for non-woven fabric roll
    10. Various customized ultrasonic welding seam
    11. Low and easy maintenance

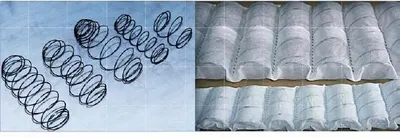

    12. Spring type: barrel/cylindrical
  2. Specifications
    1. Air consumption: approximately 30 m³/h
    2. Air pressure: 0.6 to 0.7 mpa
    3. Power consumption in total approximately 14 kw
    4. Voltage: 3ac, 480 v – frequency: 50/60 hz
    5. Power requirements: input fuse: 30 a – cable section: 4 x 10 mm²
    6. Working temperature: +5 °c to +45 °c
    7. Weight approximately 2300 kg
  3. Material Data
    1. Non-woven fabric consumption: fabric density 65~90 g/m², fabric width 450 to 600 mm, inner diameter of fabric roll minimum 60 mm, outside diameter of fabric roll maximum 600 mm
    2. Steel wire consumption: wire gauge 1.6 to 2.1 mm, inner diameter of wire roll minimum 320 mm, outside diameter of wire roll maximum 1000 mm, acceptable weight of wire roll maximum 800 kg
  4. Working Range
    1. Standard option 1
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø55~Ø70
      3. Pocket spring height: 80~140
    2. Standard option 2
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø55~Ø70
      3. Pocket spring height: 120~180
    3. Standard option 3
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø60~Ø75
      3. Pocket spring height: 80~140
    4. Standard option 4
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø60~Ø75
      3. Pocket spring height: 120~180
    5. Standard option 4
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø60~Ø75
      3. Pocket spring height: 140~200
    6. Special option 1
      1. Wire gauge: Ø1.3~Ø1.6
      2. Spring waist diameter: Ø45~Ø55
      3. Pocket spring height: 70~120
    7. Special option 2
      1. Wire gauge: Ø1.3~Ø1.6
      2. Spring waist diameter: Ø45~Ø55
      3. Pocket spring height: 120~180
    8. Special option 3
      1. Wire gauge: Ø1.0~Ø1.4
      2. Spring waist diameter: Ø37~Ø45
      3. Pocket spring height: 120~180
    9. Special option 4
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø50~Ø60
      3. Pocket spring height: 180~230
    10. Special option 5
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø60~Ø70
      3. Pocket spring height: 180~230
    11. Special option 6
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø50~Ø60
      3. Pocket spring height: 220~260
    12. Special option 7
      1. Wire gauge: Ø1.6~Ø2.1
      2. Spring waist diameter: Ø60~Ø70
      3. Pocket spring height: 220~260
  5. Special Options
    1. Zoning pocket string is possible
    2. Available for springs in hour-glass shape, pyramid, pps type and so on
