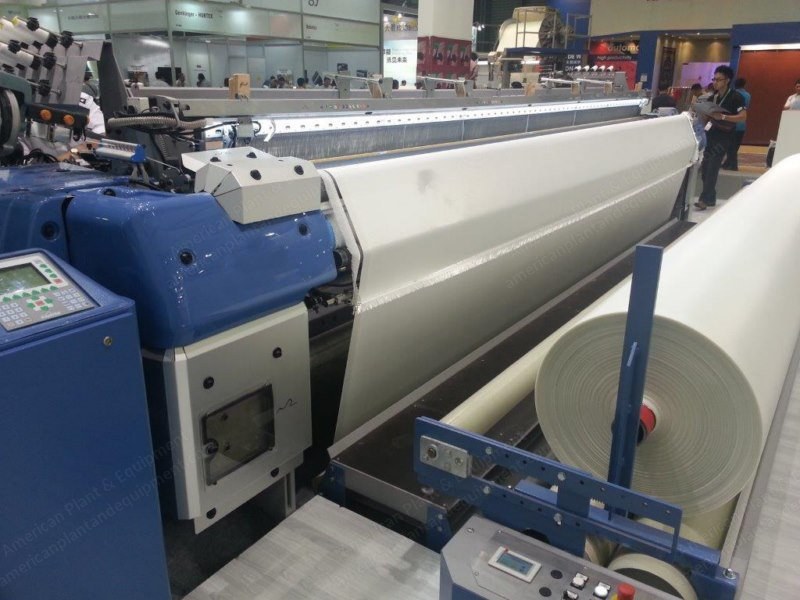

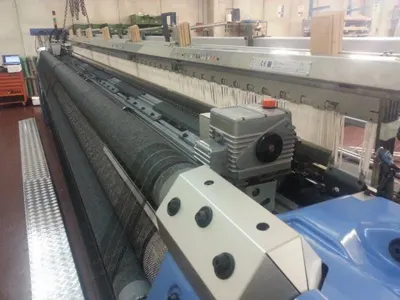

Rapier Hercules H5500 weaving machines designed for geotextile fabric such as 6000x6000 den, 8x7.5 density.
The fabric in production works at 950 / 1000 kg warp tension total (fabric weight 1100 g/square meter).
The fabric is the famous “Stabilenka” geotextile fabric, product of Husker company.
Negative and positive rapier systems.
Heavy fabric is related with warp tension and width machine.
The back rest bar version installed on Hercules machine can support 1000 / 1500 kg ever 1 mt fabric dependent of width.
There are more stronger versions, but product them only on request.
Specifications
20 shafts.
Nominal width 5500 mm.
Maximum reed width 5500 mm.
Minimum reed width 4400 mm.
Standard basic machine for voltage 440 V and frequency of 60 Hz.
Direct drive motor, speed controlled by microprocessor without change of pulley.
Without clutch system, with (15%-40%) electric power saving depending from type of woven fabric.

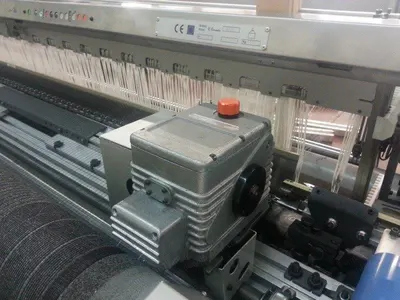

Shedding machine: Staubli dobby model 2668, 20 rods shafts type Grob heald frame with under motion 20 lever DRC castle.
Electric cabinet with microprocessor, electronic pick finding, electronic let-off, electronic take-up unit with independent motor.
Electronic weft colour selector in execution for 8 colors.

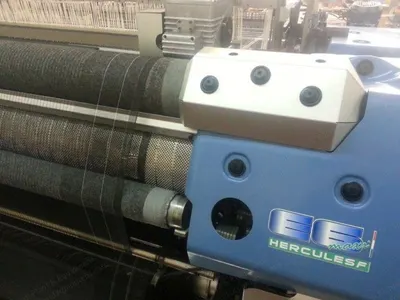

Take-up with roller diameter 219 mm.
6 twin beam diameter 219 mm with flange 1000 mm Q3.
Jumbo back rest bar for Hercules.
Weft density variable programmable by the operator at your choice.
Horizontal creel 4 colours and support for 8 cone.
4 weft feeders Roj Chrono X3.
3 weft brakes for every Chrono X3 (total 12 pcs) to be select as per customer weft yarn.
Weft controlling unit Eltex model G3W.
Deroulè lateral mini creels support for 24 cones.

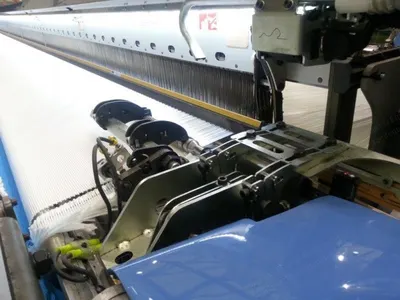

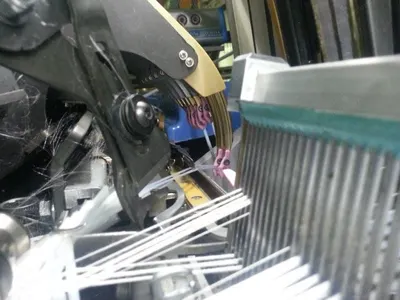

Lateral motorized leno system.

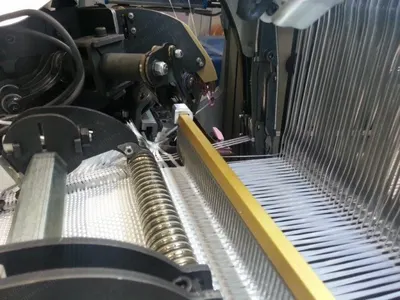

Heating scissor-cutting lateral.
Temples: to be defined depending the fabric characteristic.
20 frames Grob type 331 C type DRC S227 Grobtex Alfix-U.
14,000 Grob heald type 8 x 3.8 type Groz Aetex SP 0.38 331 8.0x3.8 I CR (7000 pcs per pack).
1 warp stop motion 6-30 Grob FKW LED.
14,000 Grob drop wire type Groz EOU 1405 180x11x0.50 ZN (2000 pcs per pack).
Sets of negative rapiers and tape (left and right side).
Sets of positive rapiers and tape (left and right side).
Positive rapier kit (full component) central gearbox already installed and color selector already assembled for positive version application (to reduce time of conversion).
Sets and equipment of loom.
Tool case with total tools like technicians including nr. 2 torque tool.
Extra spare parts.
Included With Machine
2 sets of negative rapiers (left and right side).
2 sets of negative tapes (left and right side).
2 sets of positive rapiers (left and right side).
2 sets of positive tapes (left and right side).
1 positive rapier kit (full component).
1 set and equipment of loom.
1 tool case with total tools like technicians include 2 torque tools.
Extra spare parts 1500 eur/machine.
Warranty: one year from machine erection or after 3 months delivery date.
