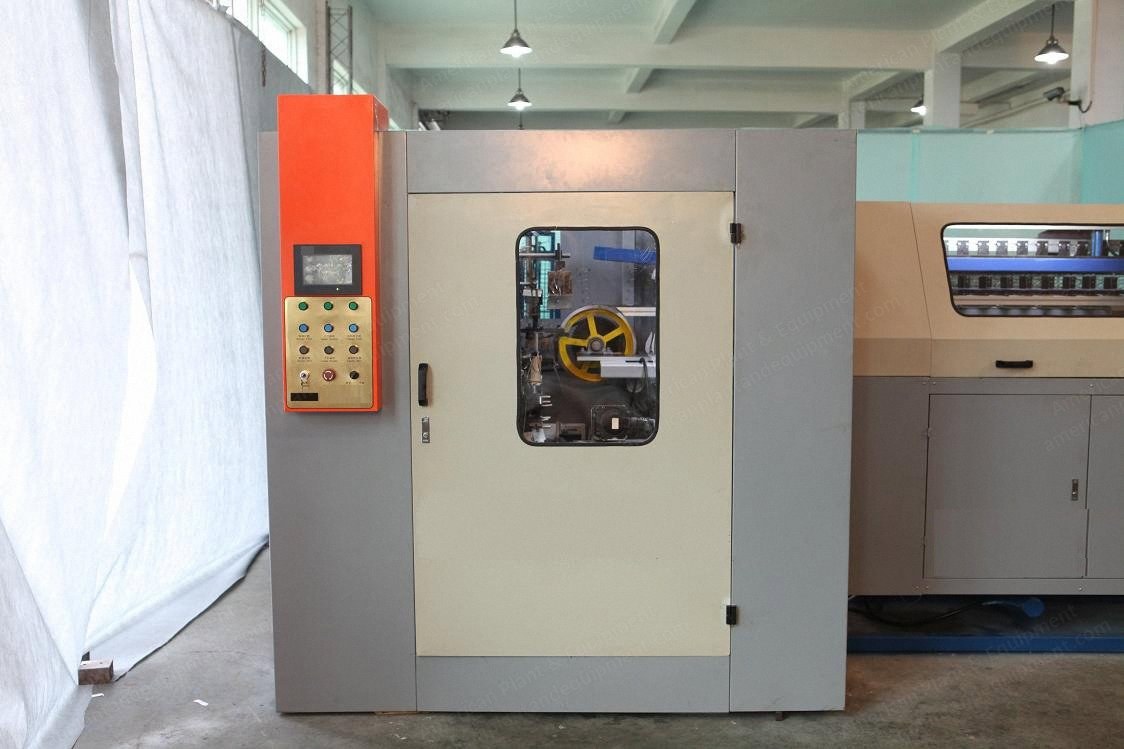

NovaStar, SB236, Digital Control Automatic Coiler, 80 Springs/min, Bonnell Type, 1.9 to 2.5mm Wire
Scroll to zoom
100%
Description
Overview
Digital control automatic coiler
Model: CL-80A
Production: 80 springs per minute
Spring type: Bonnell
Digital coiling machine is totally digital controlled to produce spring
With developed controlling software, you can adjust spring diameter, spring height, spring coils and feeding wire length
Cancels the traditional cam group, can produce different specification spring more conveniently and adjust the spring shape precisely, so high quality required spring can be produced
Specifications
Spring diameter: 67 to 90mm (needs to be customized)
Steel wire diameter: 1.9 to 2.5mm
Spring coils: 4 to 7 coil
Spring height (can be customized): 4 turns = 90 to 105mm, 5 turns = 130 to 150mm, 6 turns = 155 to 175mm, 7 turns = 170 to 190mm (<100mm, needs to be customized)
Maximum height of wire roll: 800kgs
