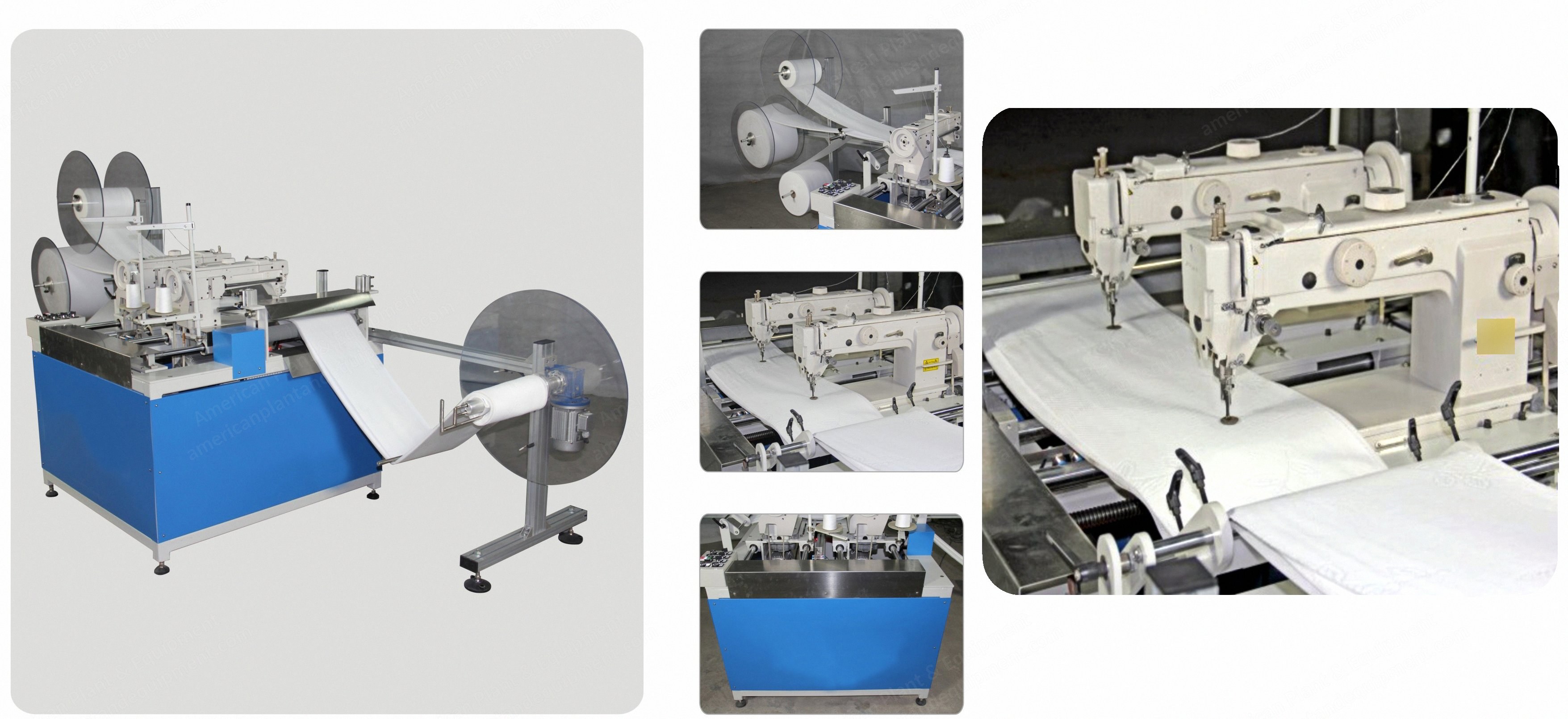

Description Overview Mattress border vertical stitch machine Three programmable patterns Each pattern can have variations in seam margin and pattern width Border widths up to 33 mm Servo-motor drives (no cams) Custom programming for other unique patterns available Auto stop for material depletion Head moves to ensure accurate seam There are only two designs for this machine, driven by the onboard programming (inquire for custom patterns) Technical Specifications Stitch type: lock stitch Sewing speed: 3 to 5 meters per minute (depending on the pattern and width of border) Sewing width: less than 450 mm This machine can only do 2 designs Maximum stitch length: 6 stitches per inch Needle system: SNTVX7X140 Needle size: 24 Voltage: 1 phase, 220 V, 50 Hz/60 Hz Air pressure: 80 psi Weight: 450 kg Shipping Dimensions 1440 mm x 1440 mm x 1300 mm Gross weight: 500 kg 2.7 cubic meters
