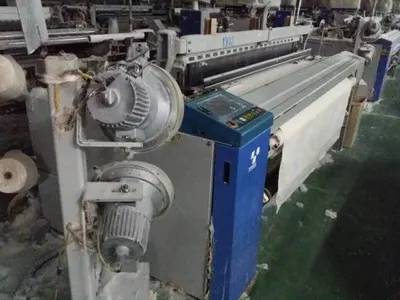

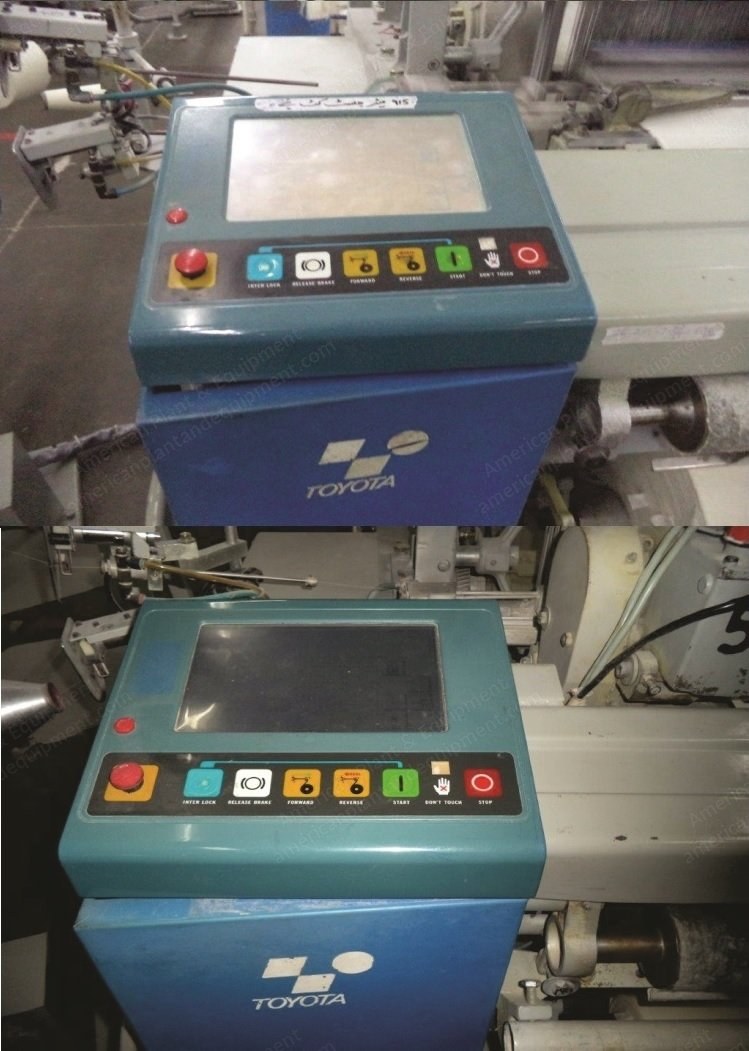

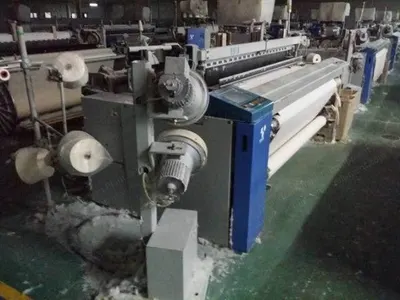

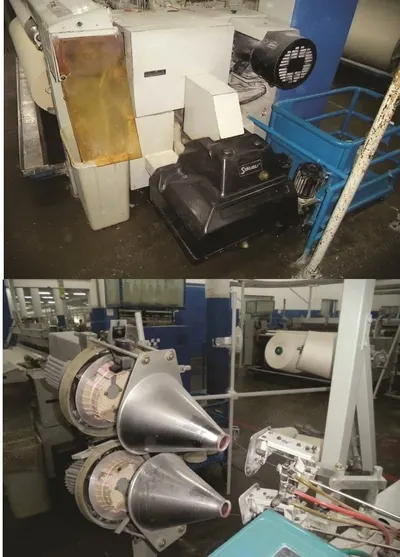

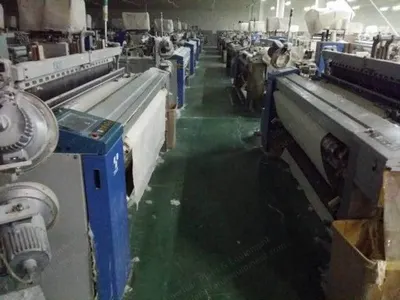

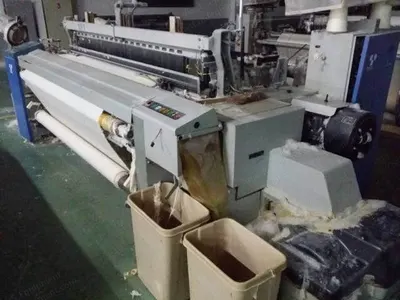

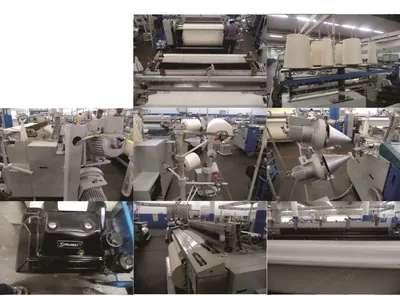

Description Overview 72 Toyota JAT610 air jet looms, year 1998 60 looms with 1900mm width 12 looms with 2800mm width Running condition year 1999 1 inverter for 36 looms (2 inverters for all 72 looms) Model Ja2s-190tp-T610 (60 Looms) Staubli positive tappet cam motion Type 1620 cam box with 7 shaft 6 cams with 1 spacer for each loom 1 repeat gear for each loom Profile reed system, reed space 1900mm Lower built one piece box type side frame for high speed operation Oil bath lubrication for main units Two sides crank drive beating with oil bath High torque induction motor with solenoid brake (4p-3phase, 3.5kw) Main control computer with 32 bytes cpu Distributed control system by optical fiber communication network Touch screen function panel with multi-window display Automatic initial condition (ics) system Automatic fault alarm function Weekly efficiency graph display and down time cause display beam cloth estimator 2 colour mixing device by electric drum pole (edp) Tapered sub nozzle Low air pressure and high propulsive main nozzle Direct drive solenoid valve for main and sub nozzle Two independent sub nozzle tanks Tapered tunnel reed Automatic timing controller (atc) Automatic brake system (abs) Timing checker with graph display on function panel Centralized regulator Electronic let off motion by digital ac servo motor Automatic let off adjustment Fell forward device for stop mark prevention Positive easing motion with twin back roller Mechanical take up motion by change gear On loom take up motion for maximum 600mm cloth diameter Double press cloth rolls Metal sprayed surface take up roller Ring tample - 3 rows - 24 ring Rotary leno selvedge at l+r side with electric stop motion Double feeler for weft stop motion (reflecting type) 6 per loom electric warp stop motion by six lines contact bar 90 yarn beam set with 1000mm flange and 178mm barrel diameter 90 cloth roller 100mm diameter 60 piece reed 7 per loom heald frames 6,000 per loom heald wire (331mml) c type 6,000 per loom dropper (165-11-0.3) Note: 20 looms have gear for tuck in device at left side gear box Model Ja2s-280tp-T610 (12 Looms) Staubli positive tappet cam motion Type 1620 cam box with 7 shaft 6 cams with 1 spacer for each loom 1 repeat gear for each loom Profile reed system, reed space 1900mm Lower built one piece box type side frame for high speed operation Oil bath lubrication for main units Two sides crank drive beating with oil bath High torque induction motor with solenoid brake (4p-3phase, 3.5kw) Main control computer with 32 bytes cpu Distributed control system by optical fiber communication network Touch screen function panel with multi-window display Automatic initial condition (ics) system Automatic fault alarm function Weekly efficiency graph display and down time cause display beam cloth estimator 2 colour mixing device by electric drum pole (edp) Tapered sub nozzle Low air pressure and high propulsive main nozzle Direct drive solenoid valve for main and sub nozzle Two independent sub nozzle tanks Tapered tunnel reed Automatic timing controller (atc) Automatic brake system (abs) Timing checker with graph display on function panel Centralized regulator Electronic let off motion by digital ac servo motor Automatic let off adjustment Fell forward device for stop mark prevention Positive easing motion with twin back roller Mechanical take up motion by change gear On loom take up motion for maximum 600mm cloth diameter Double press cloth rolls Metal sprayed surface take up roller Ring tample - 3 row - 30 ring Occupied with tuck in device with complete accessories Double feeler for weft stop motion (reflecting type) 6 per loom electric warp stop motion by six lines contact bar 18 yarn beam set with 1000mm flange and 178mm barrel diameter 18 cloth roller 100mm diameter 12 piece reed 7 per loom heald frames 8,000 per loom heald wire (331mml) c type 8,000 per loom dropper (165-11-0.3) Additional Equipment Two air compressors atlas copco (zr-315) with air dryer md-1000 are available at a separate price
