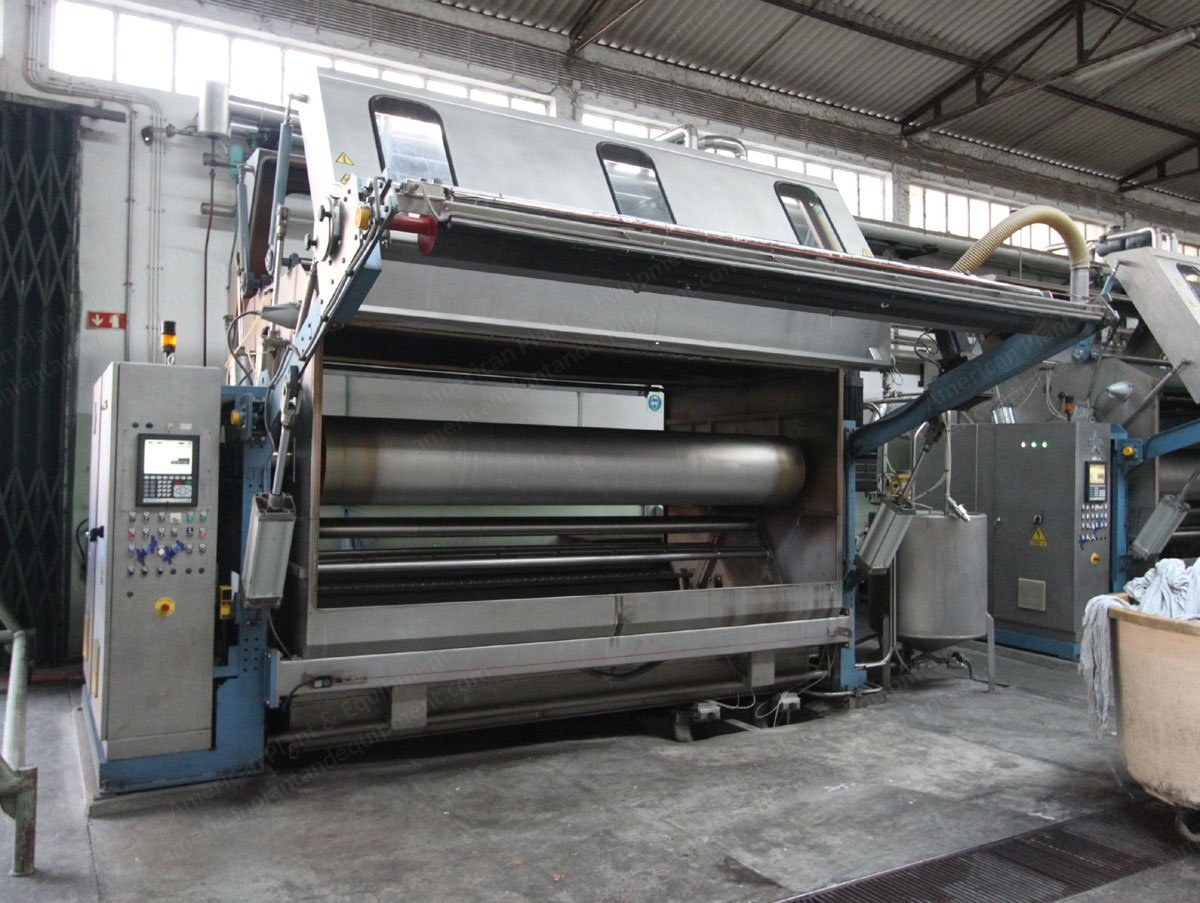

Tepa, JTE-1500, 2001, 3200mm Working Width, 1500mm Max Winding Diameter, Setex 838 Controller

Tepa, JTE-1500, 2001, 3200mm Working Width, 1500mm Max Winding Diameter, Setex 838 Controller

Description

  1. Overview
    1. Tepa electronic jigger
    2. Model JTE-1500
    3. Type 13000 (atmospheric)
    4. Year 2001
  2. Specifications
    1. Face roller width: 2400 mm
    2. Working width: 3200 mm
    3. Maximum winding diameter: 1500 mm
    4. Minimum winding diameter: 500 mm
    5. Vat maximum capacity: 2530 L
    6. Running speed: 20 to 180 m/min
    7. Fabric capacity = 1570 / fabric thickness in mm
  3. Drive and Controls
    1. Electronic drive with Lenze inverters
    2. Setex 838 dye cycle controller
    3. Automatic device for centering the fabric during the load
  4. Additional Equipment
    1. 2 additional vats each 500 L capacity, with mixers and additional pump
    2. With box filter
    3. 2 drain valves
