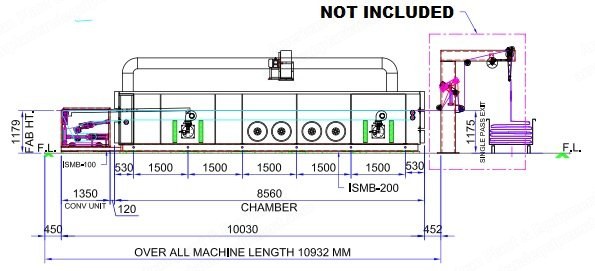

Yamuna, Dryer for Printing Machine, 3000mm Working Width, 9m Oven Length, Gas Fired (New)

Yamuna, Dryer for Printing Machine, 3000mm Working Width, 9m Oven Length, Gas Fired

Description

  1. Overview
    1. Dryer for printing machine
    2. Working width: 3000 mm
    3. Roller face: 3200 mm
    4. Oven length: 9 meters
    5. Passage: single pass
    6. Heating: gas fired with Maxon make, quantity 5 (one per every 3 meters length)
  2. Dryer Construction
    1. Frame structure constructed with angle, welded frame
    2. Chamber length: 3 meters each
    3. Interiors will be high temperature resistant painted
    4. Two 7.5 kW fan for every 3 meters length oven for air flow distribution
    5. Air flow nozzles for both sides of fabric
    6. Filters – easily removable throughout the oven
    7. Door and panel sealing by silicon
    8. One exhaust 7.5 kW with ducting to individual chambers with dampers
    9. Exhaust fan is with a.c. inverter drive
    10. Ptfe mesh conveyor with drive and centralizing system (pneumatic)
    11. 3 gas burners with controller and temperature controller
  3. Electric Control Panel
    1. Fabricated closed panel with doors and air conditioning system
    2. A/c inverters: ABB make
    3. A.c. inverter drive for all blower motors and exhausts
    4. Turning rollers
    5. Plc and touch screen from Allen Bradley
    6. Cables and trays between control panel and individual motors
