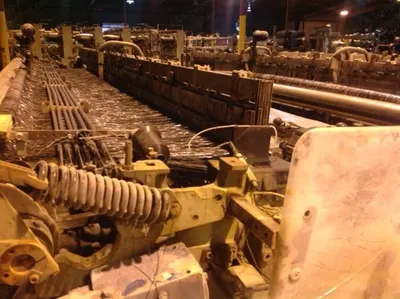

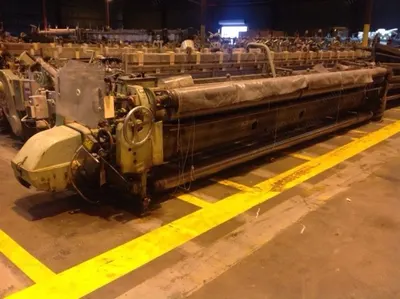

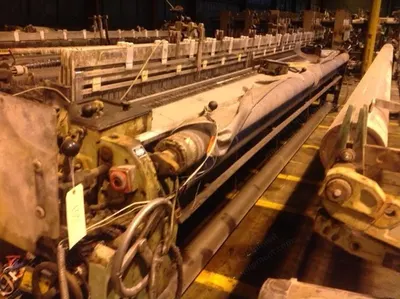

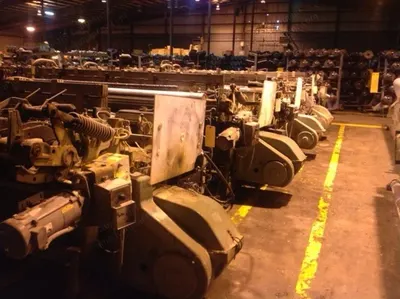

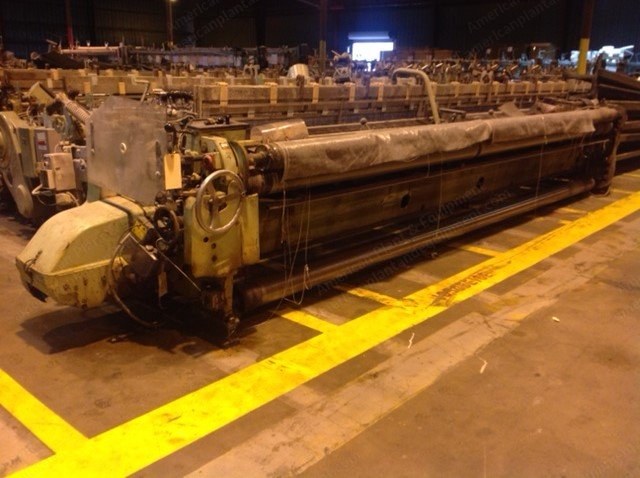

Description Overview Twenty-one Sulzer polypropylene weaving looms All looms were converted to P7100 with Sulzer speed up kit; conversion to P7100 was mid 1980 to early 1990 220 inch, single color weft insertion Single width looms with 940 mm diameter flange Extra heavy duty for monofilament or polypropylene Main beams or bellies are full width without weld joints (not welded together bellies) Specifications E10 cam box 6 cams installed, 1x1 zero degree 6 harness frames 6 under harness linkage D-12 projectiles; all projectiles are D12 (some tags say D1, but these were all converted to D12) Speed 190 to 200 ppm Torsion rod is P700, 19 mm diameter and 14 teeth Heald frames are steel heddle and have 13 inch heddles Voltage 440/60 Hz Equipment and Features Loepfe electron weft brake system Gear box driven electric let off Off loom take up with press roll system, gear box driven, heavy duty with dial speed control Included Items No weft feeders are included No extras included; machines are sold as equipped
