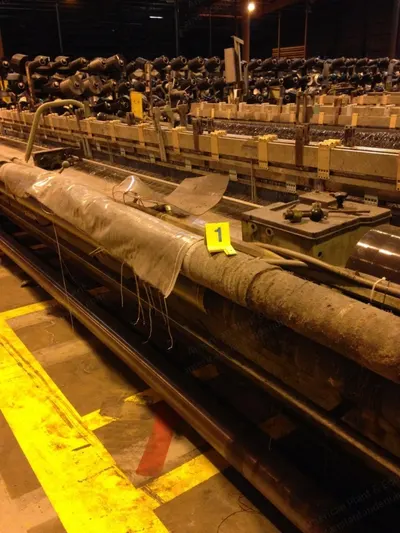

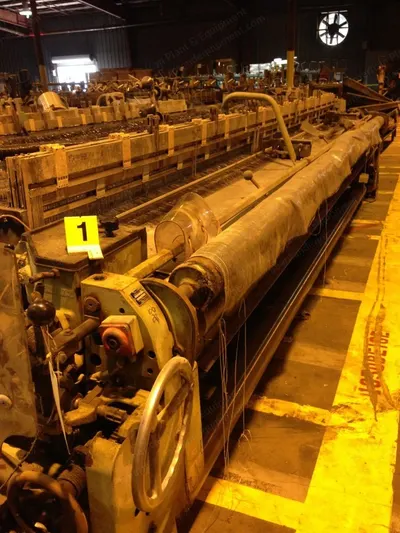

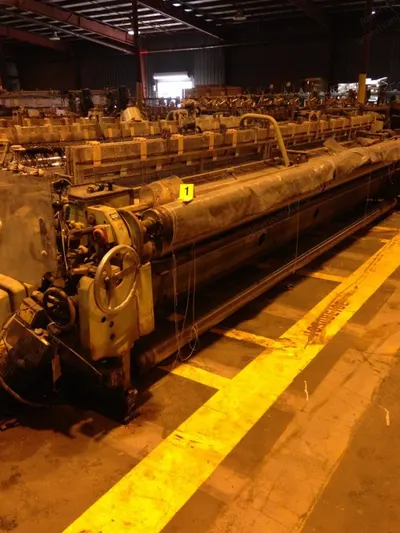

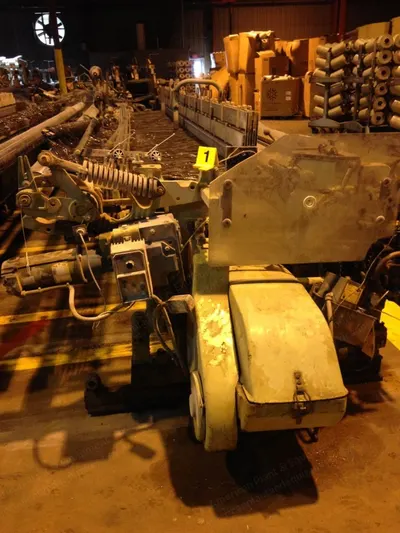

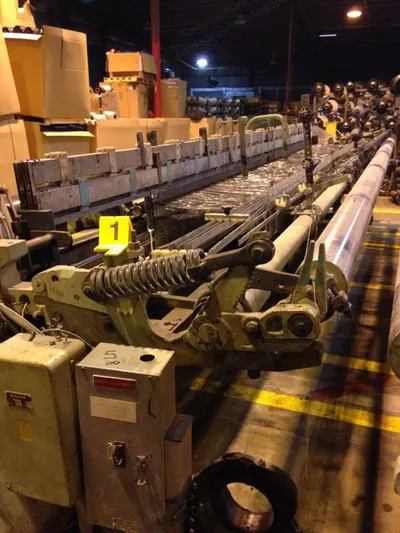

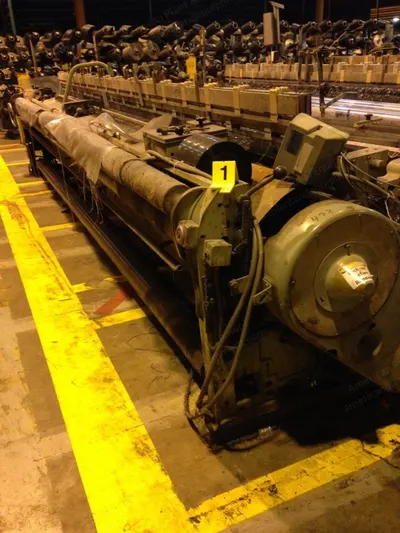

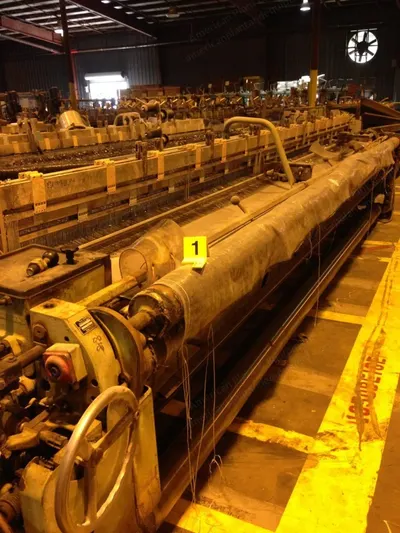

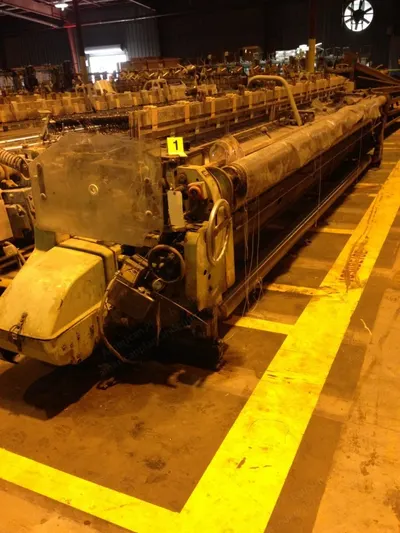

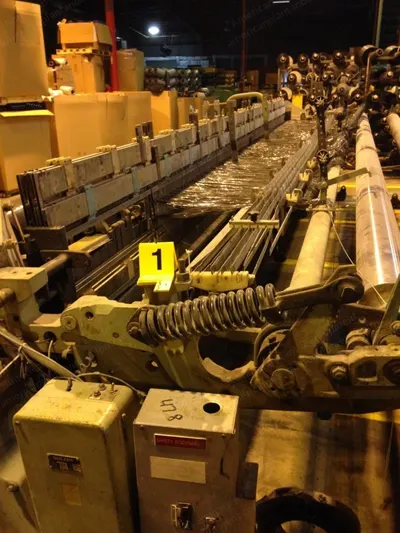

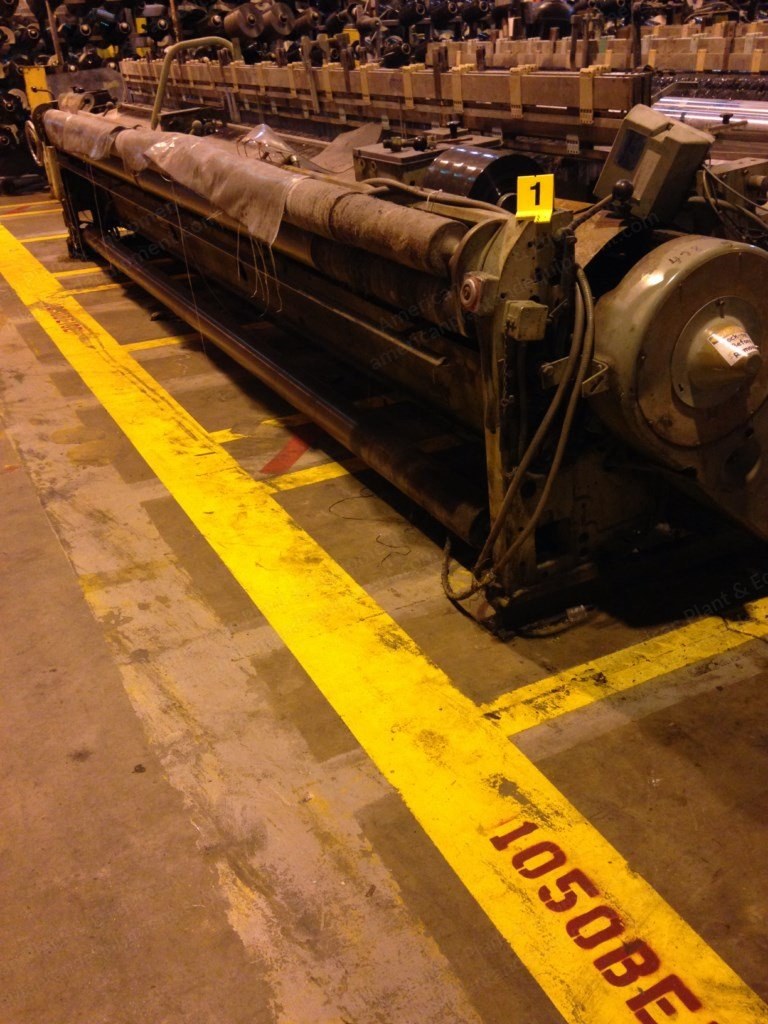

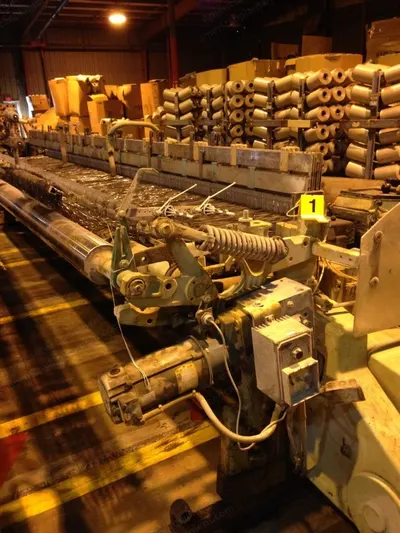

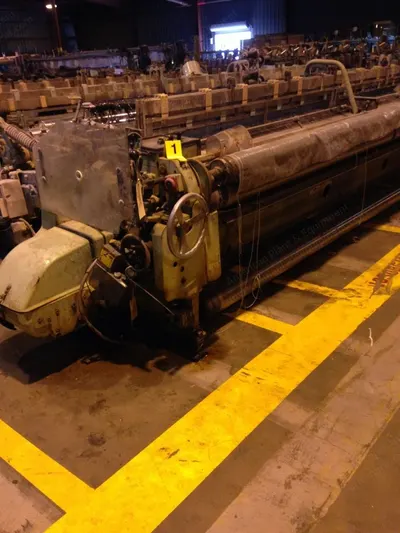

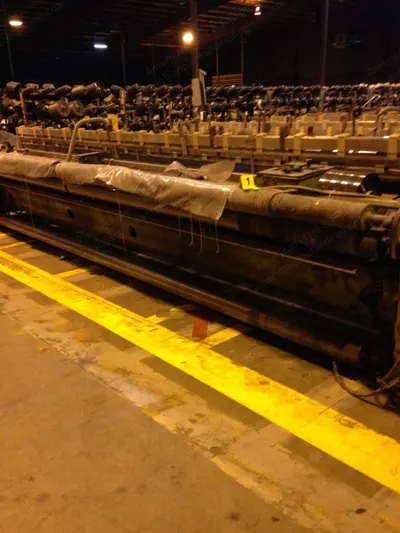

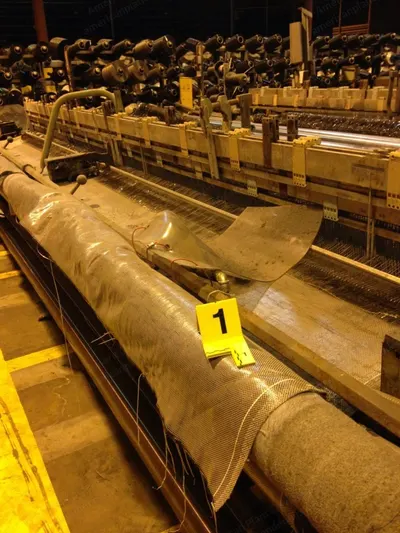

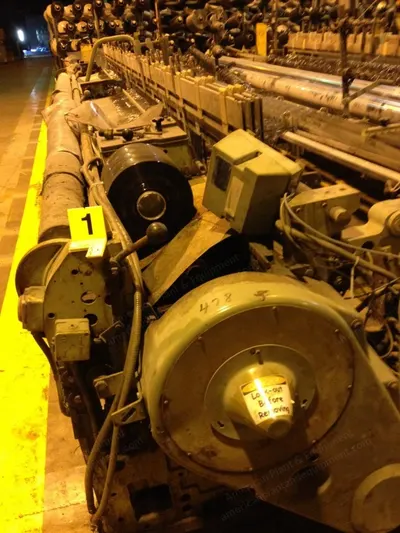

Description Overview Machine type: Sulzer TW11 converted to P7100 with speed up kit Conversion to P7100 occurred mid 1980 to early 1990 213 inch, single color weft insertion E10 cam box 6 cams installed, 1x1 zero degree 6 harness frames 6 under harness linkage Loepfe Electron weft brake system Gear box driven electric let off Off loom take up with press roll system, gear box driven, heavy duty with dial speed control Speed is 200 ppm Projectile and Torsion Rod Projectiles are all D12; some tags say D1, but these were all converted to D12 Torsion rod is P700, 19 mm diameter and 14 teeth Weft Feeders and Extras No weft feeders are included; Iro units can be offered separately No extras included; machines are sold as equipped Heald Frames Heald frames are steel heddle and have 13 inch heddles Width and Construction These are single width looms, 940 mm diameter flange Extra heavy duty for monofilament or pp These are not welded together bellies; main beams or bellies are full width without weld joints
