Windmoller & Holscher, Starflex, 1995, 8 Colors, 1320mm Material Width, 365 m/min

Windmoller & Holscher, Starflex, 1995, 8 Colors, 1320mm Material Width, 365 m/min

Description

  1. Overview

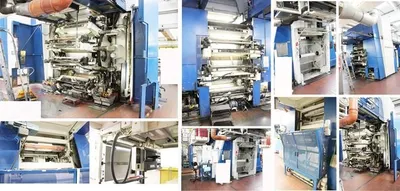

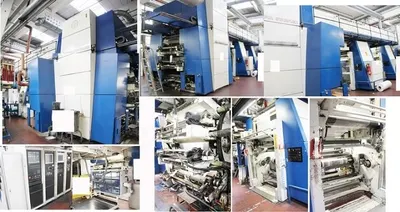

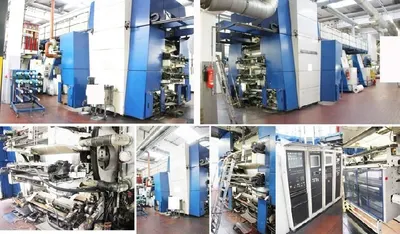

    1. Windmoeller + Holscher Starflex
    2. Year of construction: 1995 – partly overhauled in 2014 – still in production
    3. 8 colors
    4. Ci-flexopress
  2. Unwind Section
    1. Nonstop shaftless unwind features dynatronic drive technology and roll lifting platform
    2. Dc powered draw unit including web control
  3. Print Unit

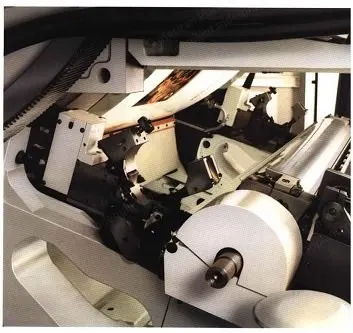

    1. 8-color print unit with tempered impression cylinder, a diameter of 2100 mm, concentricity of 0.005 mm

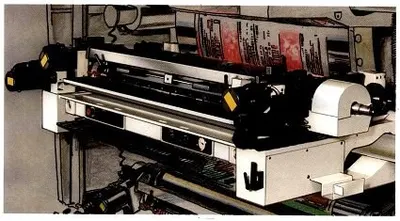

    2. The flexorex cc-system features doctor blade color decks low profile and compact design, complete with circulating ink system
    3. Robolift robot system for automatic plate cylinder and anilox roll change-over

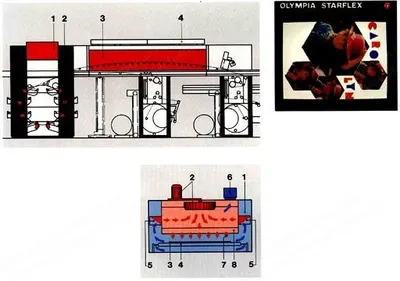

  4. Drying System
    1. Dual-circuit ambient air drying unit, volume controlled and complete with W&H Enpro system
  5. Draw and Rewind Section
    1. Dc powered draw unit with dual cooling rolls and web control
    2. Nonstop shaftless rewind, featuring dynatronic drive technology and roll lifting platform (with shaft for longitudinal slitting)
  6. Electrical and Inspection
    1. Eltainer for all electric components
    2. Telecon-web-video inspection system, with ccd-3-chip color camera, screen monitor in the operating column
  7. Specifications
    1. Material width maximum: 1320 mm
    2. Printing width maximum: 1270 mm
    3. Repeat length: 300 to 1000 mm
    4. Gear: 10 mm
    5. Number of color per units: 8
    6. Mechanical speed: 365 m/min
    7. Material roll width: 660 to 1320 mm
    8. Unwinding diameter: 1000 mm
    9. Rewinding diameter: 1000 mm
    10. Material weight maximum: 1300 kp
    11. Material width, minimum shaftless (winder non-stop turret): 650 mm
    12. Core diameter/unwinder: 70 / 76 / 150 mm
    13. Core diameter/rewinder: 70 / 76 / 150 mm
    14. Floor space: length = 18 m, width = 7.60 m, height = 5.50 m
  8. Material Capabilities
    1. Ldpe/pp/polyamid = 0.020 to 0.150 mm
    2. Hdpe, opp, cellglas + others = 0.012 to 0.100 mm
    3. Laminates = 0.150 mm
    4. Paper = 120 g/m²
  9. Energy and Utilities
    1. Paper energy: complete installed: 186 kva, temperature unit: 15 kva
    2. Air requirements: printing units: 60 °c = 264,000 kj/h, 100 °c = 394,000 kj/h
    3. Horizontal dryer: 60 °c = 238,000 kj/h, 120 °c = 373,000 kj/h
    4. Thermooel-preheating: 60 °c – 125 °c, 100/120 °c – 160 °c
    5. Thermooel-pressure: maximum 8 bar
    6. Air in: 8.280/7.488 m³/h
    7. Air out: 2.520/2.880 m³/h
    8. Cooling water: ci-drum: ca. 0.3 m³/h – maximum 1.5 m³/h
    9. 2 pcs cooling cylinder
    10. Incoming: 15 °c
    11. Air pressure: 6 bar – 1.7 nm³/h, maximum 8 bar
  10. Special and Standard Features

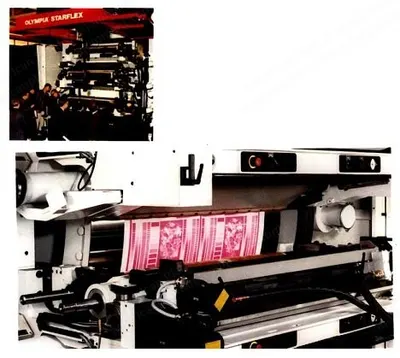

    1. This totally new design represents a new flexo press concept of futuristic dimensions – a standardized, high precision, user friendly ci printing press for maximum capacity and superior product quality. The Olympia Starflex has been awarded the “gs” certificate (gs = safety tested) by the appropriate German safety control board which applies also to the robolift.
    2. While many of the machine features are new, the printer recognizes many of its functions from preceding presses; familiar features – in a new presentation, improved and automated.

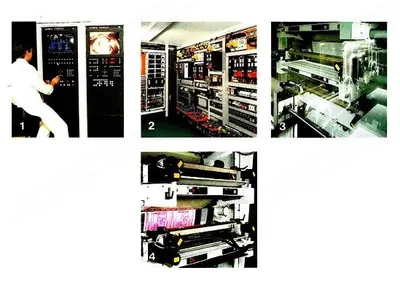

    3. Central operation and control: the W&H Procontrol permits machine operation, monitoring, and control from centrally located operating columns; the system records all order related parameters. Operating columns also comprise telecon web-video inspection system, vis-con viscosity control (optional) and densitometric scanning (optional).
    4. Central unit for electronic components: a self-contained air-conditioned unit comprising all electric and electronic components, which are positioned for easy access – the new W&H Eltainer concept. The main computer for Procontrol is not located in the control console, but in the protective environment of Eltainer.

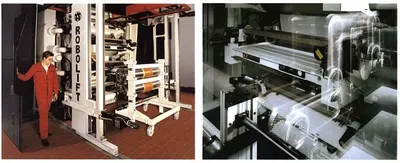

    5. Automatic cylinder change over: the robolift system positions plate cylinders and anilox rolls at speeds much higher than could be achieved manually, based on the new cylinder bearings which open and close automatically – without the use of tools. Only one operator is required – to provide operation as well as the necessary safety controls directly from the operator’s console. W&H has received the “gs” certificate (safety tested) from the appropriate German safety control board for this invention. Is manual intervention required? To some extent – yes. The pre-loaded service carts must be positioned onto the appropriate locations – this only takes a few minutes.
    6. Computer control system: all color decks are of identical construction and are equipped with motorized longitudinal and side-lay register adjustment, featuring a computerized fast rack-back system, complete with flexorex cc pre-register adjustment unit. Change-over can be achieved during machine shut-down, without material waste, while all gears are engaged automatically on all color decks at an extremely high start-up accuracy (in the micron area) – essential, field proven characteristics, tested in excess of 500 times on cc controlled W&H color decks.
