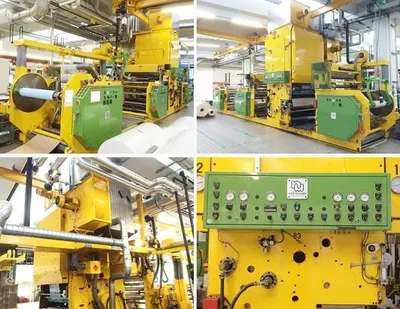

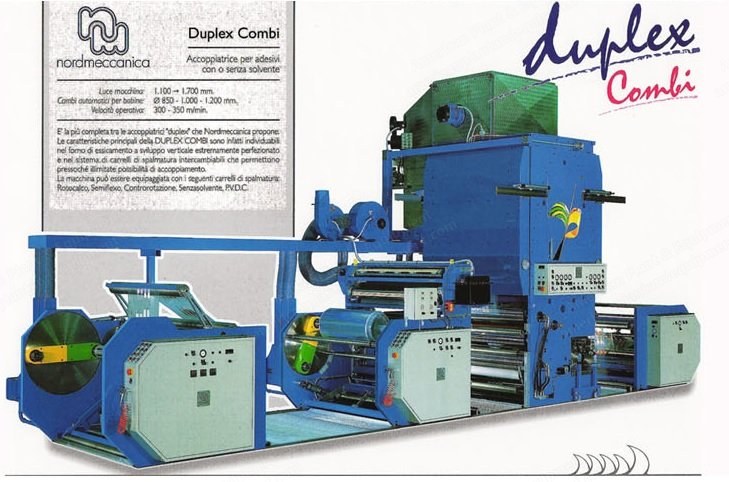

Nordmeccanica, Duplex-Combi-Laminator, 1994, 1300mm Coating Width, 300 m/min, Solvent/Solventless

Nordmeccanica, Duplex-Combi-Laminator, 1994, 1300mm Coating Width, 300 m/min, Solvent/Solventless

Description

  1. Overview
    1. In production
    2. Year of construction: 1994
    3. Coating/laminating machine
    4. Solventless/solvent-based coating and laminating machine
    5. For film, paper, laminates, aluminum, etc.
  2. Specifications
    1. Material maximum width: 1320 mm
    2. Coating/laminating width: 1300 mm
    3. Material width minimum: approximately 500 mm
    4. Mechanical/practical speed: approximately 300 m/min depending on material and glue
    5. Core diameter: 76 / 152 mm
    6. Material: aluminum 10-50 my; PETP: 10-120 my; PE/PP: 25-150 my
  3. Unwinding and Rewinding Stations
    1. Unwinding station 1: non-stop / turret / automatic, diameter 850 mm
    2. Unwinding station 2: non-stop / turret / automatic, diameter 850 mm
    3. Rewinding station: non-stop / turret / semi-automatic, diameter 1000 mm
  4. Equipment
    1. Web-guiding system
    2. Several coating cylinders included
    3. Corona-treatment AFS
    4. Glue-mixer
    5. Several cylinders
  5. Dimensions

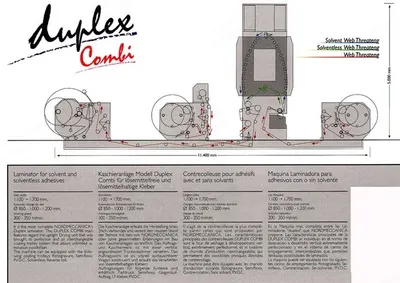

    1. Approximately 12 x 5 x 4.5 m
  6. Condition and Testing
    1. Test drive possible on request
    2. Dismantling/loading not included in price
    3. Payment: complete before dismantling
