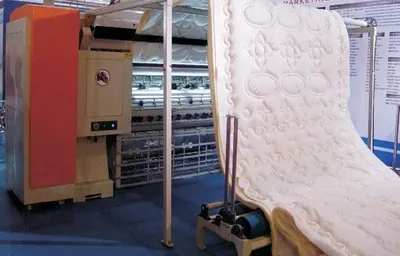

NovaStar, QL220, Computerized Chain Stitch Multi-Function Quilting Machine (New)

NovaStar, QL220, Computerized Chain Stitch Multi-Function Quilting Machine

Description

  1. Overview
    1. Computerized chain stitch multi-function quilting machine model DGN (new) - 96" wide (2450mm, 980 rpm, 60mm max thickness / 2.36")

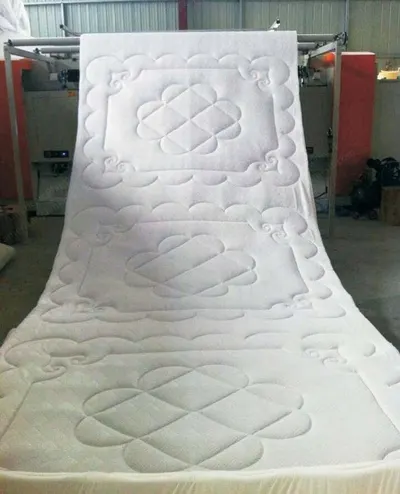

    2. For 360°, 180° patterns, continuous or tack and jump, also can make single needle quilting patterns

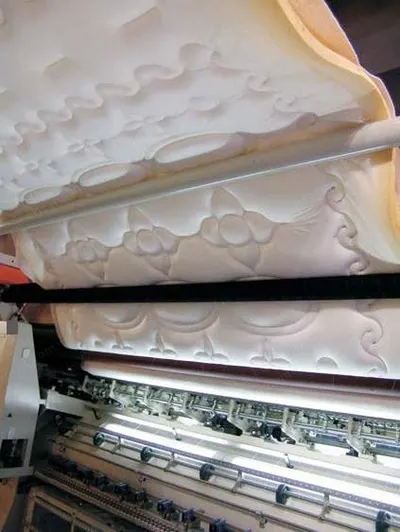

    3. Patented technology "movable needle plate" enables quilted patterns with tight stitches and strong three-dimensional effect
    4. Cylinder controlled needle-lifting (no need to change needles when changing pattern designs, both time and labor saving)
    5. Improved safety protection covers and emergency switches
    6. Applicable for thick quilting and special materials up to 60mm (2.36")
    7. Approximately one ton weight of machine base
    8. Computerized control system to ensure precision quilting (reduces excessive parameter adjustment and pattern modification)
    9. Cad drawing method to ensure precise patterns and ease of operation (Windows 98 operating system)

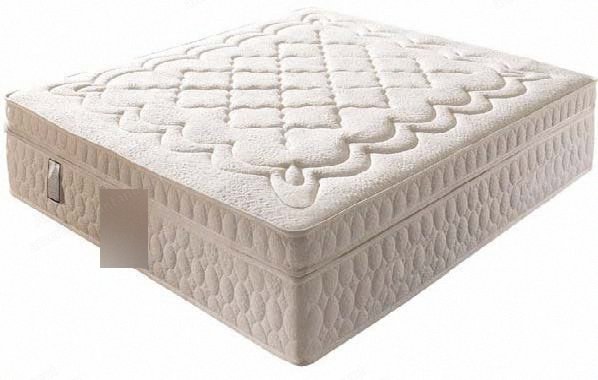

    10. Specially developed functions of pattern-combining and multi-span quilting to enable quilting different patterns throughout the length of the mattresses
  2. Specifications
    1. Dimensions (L x W x H): 4820 x 1650 x 2060mm
    2. Width of quilting material: 2450mm (96")
    3. Space between needle rows: 1 x 3 x 6 inch
    4. Space between needles: 25.4mm (one inch)
    5. X-axis movement distance: 535mm = 21.06 inches
    6. Thickness of quilting: up to 60mm (2.36 inches)
    7. Length of step: 3 to 8
    8. Speed of production: up to 230 meters per hour
    9. Type of needle: 24/180, 23/160, 22/140, 21/130
    10. Speed of main shaft: 200 to 980 rpm
    11. Total power: 7kw
    12. "X" motor is 1.5 kw; "Y" motor is 2 kw; main shaft motor is 3.0 kw
