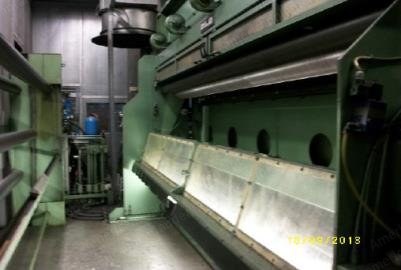

Dilo, Di-Loop DS-45, 1989, 4500mm Working Width, Single Board Down Stroke, 1500 RPM

Dilo, Di-Loop DS-45, 1989, 4500mm Working Width, Single Board Down Stroke, 1500 RPM

Description

  1. Overview
    1. Make: Dilo
    2. Type: Di-Loop DS 45
    3. Year: 1989
  2. Needle Loom Specifications
    1. Working width: 4500 mm
    2. Needling: Single board down stroke
    3. Strokes: 1500 rpm
    4. Stroke: 40 mm
    5. Needles: (2) x 4000 needles / m
    6. Main power: 68 kW
    7. Weight: 28,000 kg
    8. Lamella gauge: 4.7 mm
  3. Unwinder
    1. Make: Dilo
    2. Type: AWZ 45
    3. Working width: 4500 mm
    4. Maximum diameter: 1200 mm
    5. Velocity: 11 m/min
    6. Main power: 2.2 kW
  4. Winder
    1. Make: Dilo
    2. Type: SW 45
    3. Year: 1989
    4. Working width: 4500 mm
    5. Main power: 3.0 kW
