Yamada, YS-6, Sizing Winder, 6" Traverse, 380V (New)

Yamada, YS-6, Sizing Winder, 6" Traverse, 380V

Description

  1. Overview
    1. Sizing winder
    2. Make: Yamada
    3. Model: YS-6
    4. New machine, not second-hand
  2. Specifications
    1. Individual motor driving (60/WSP)
    2. Main motor for winding control motor, slow-start and slow-down device
    3. Yarn speed: 50 m to 400 m/min
    4. For automatic yarn pick-up device
    5. Yarn sensor for yarn breakage
    6. Automatic temperature control for hot air
    7. Steam heating type
    8. Steam pressure: 5 kg/cm²
    9. Size oil circulation system
    10. Spindle-less cradle type (maximum diameter 250 mm)
    11. 6" traverse and cheese winding (parallel)

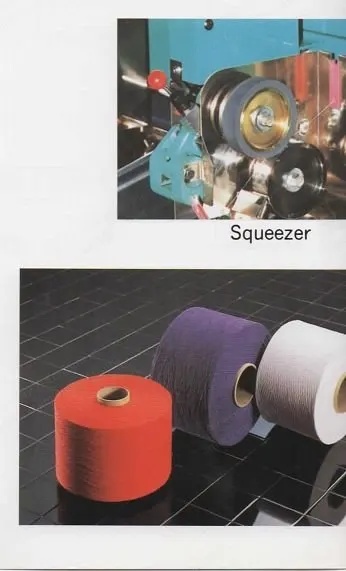

    12. Squeezing device (with speed-changing pulley)
    13. Automatic controller for size oil temperature
    14. Size circulation motor (gear motor) 200 W/set
    15. Blower motor 1.5 kW/16 SPS
    16. Yarn length counter 16 sets
    17. Individual speed control by each inverter
    18. Individual yarn measuring counter (option)
    19. Individual motor driving
    20. Individual motor driving system employs in each spindle and automatic yarn pick-up device makes yarn-end pick up automatic and simple
    21. Yarn speed varied from 50 m/min to 400 m/min (60 Hz) through stepless speed controller in accordance with nature of yarn
    22. Non-touch yarn break sensor and slow-starting device provided, which are very effective functions for operation

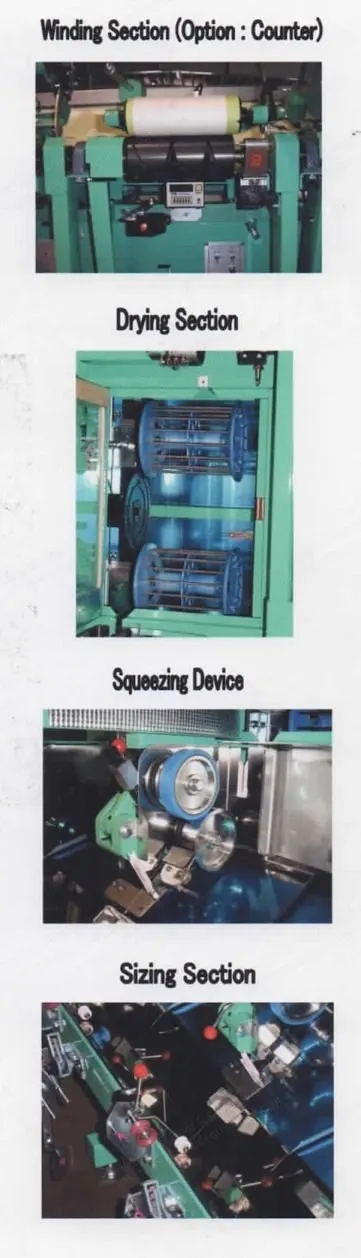

    23. Prompt drying device with double-reel system
    24. Sized yarn can be dried while yarn proceeds from left to right on double reel with Teflon finish, placed vertically, and ideal and prompt drying of sized yarn is assured without any shrinkage at application of any kinds of yarn
    25. Heat air circulation device
    26. Heat air circulation device, electric type heater, with forced air fan assures drying of yarn in safety at utmost efficiency; each temperature is freely controlled by automatic temperature controller at specified temperature
    27. Another specification: steam heater type
    28. Permeable sizing device
    29. Two-step roller system and sponge roller assures stabilized starch permeation into yarn, and squeeze type roller which enables more deep permeation to yarn can be adopted on extra supply
  3. Condition
    1. New machine, not second-hand
  4. Included
    1. Individual motor driving system
    2. Automatic yarn pick-up device
    3. Yarn sensor for yarn breakage
    4. Automatic temperature control for hot air
    5. Steam heating type
    6. Size oil circulation system
    7. Spindle-less cradle type (maximum diameter 250 mm)
    8. 6" traverse and cheese winding (parallel)
    9. Squeezing device (with speed-changing pulley)
    10. Automatic controller for size oil temperature
    11. Size circulation motor (gear motor) 200 W/set
    12. Blower motor 1.5 kW/16 SPS
    13. Yarn length counter 16 sets
    14. Individual speed control by each inverter
    15. Individual yarn measuring counter (option)
    16. Prompt drying device with double-reel system
    17. Heat air circulation device
    18. Permeable sizing device
    1. Not specified
