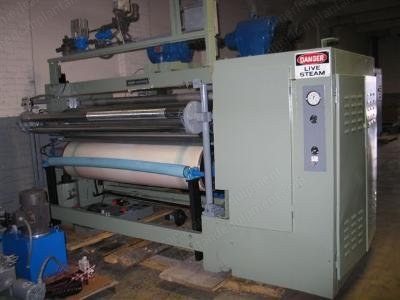

Ramisch Kleinewefers, Two Roll Calender, 1980, 80" Wide, 50 Ton, 25 HP

Ramisch Kleinewefers, Two Roll Calender, 1980, 80" Wide, 50 Ton, 25 HP

Description

  1. Overview
    1. Two roll calender
    2. Make: Ramisch Kleinewefers
    3. 80 in wide
    4. 50 ton
    5. Year: 1980
  2. Roll Specifications
    1. Top roll is 16 in diameter x 80 in face steel, driven roll, gas heated
    2. Bottom roll is 18 in diameter x 80 in face with nylon sleeve
  3. Drive and Motor
    1. Reliance 25 hp dc motor, model 2maf78174, 460 volts, 60 hz, 3ph, 23.5 amp, 1750 rpm
    2. Hydraulic motor model p1863883c, 230/460 volts, 60 hz, 3ph, 13.0/6.5 amp, 1750 rpm, 5 hp
  4. Additional Features
    1. Three roll tension with bow roll
    2. E-stop with pull cord
    3. No control panel
  5. Winder
    1. A frame surface winder, 80 in face, dc drive, one a frame drive, one take-up bar
