NovaStar, Automatic Hay Baler with Cutter, 500 Tons, 270 kW (New)

NovaStar, Automatic Hay Baler with Cutter, 500 Tons, 270 kW

Description

  1. Overview

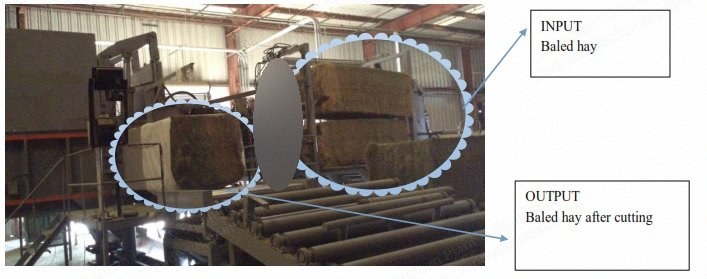

    1. 500 ton hay baler with cutter
    2. Main function is to decrease the size of the hay bale to fit in trucks
    3. Input: baled hay
    4. Output: baled hay after cutting
  2. First Part Specifications
    1. Machine size (l x w x h): 8600mm x 5400mm x 4500mm
    2. Work chamber (l x w x h): 2800mm x 1220mm x 880mm
    3. Bale size (l x w x h): 1220mm x 1080mm x 880mm
    4. Work pressure: 5,000 kn, 500 ton
    5. Main cylinder: Ø 560mm x 460mm x 2180mm – 1 set (oil seal, japan)
    6. Side cylinder: Ø 273mm x 220mm x 1450mm – 1 set (oil seal, japan)
    7. Opening cylinder: Ø 180mm x 150mm x 950mm – 2 sets (oil seal, japan)
    8. Motor power: 45 kw x 4 sets
    9. Pump: 4535v50a30 x 4 sets (germany)
    10. Cooler: 2 sets
    11. Oil tube
    12. Electromagnetic valve x 5 sets – taiwan
    13. Touch screen: 1 set
    14. Appliances: japan
  3. Second Part Specifications
    1. Machine size (l x w x h): 9270mm x 2900mm x 3200mm
    2. Main cylinder: Ø 220mm x 180mm x 3500mm – 1 set
    3. Pushing cylinder: Ø 100mm x 80mm x 1300mm – 1 set
    4. Lifting cylinder: Ø 100mm x 80mm x 800mm – 1 set
    5. Lifting cylinder: Ø 80mm x 60mm x 600mm – 1 set
    6. Motor power: 45 kw x 2 sets
    7. Pump: 4535v50a30 x 2 sets
    8. Pump: 2250v25a15 x 1 set
    9. Oil tube
    10. Electromagnetic valve: taiwan
    11. Electric equipments: japan
    12. Weightbridge belt steady: 1 set
    13. Lift pulley steady: 1 set (equipped with cylinder)
    14. Lift cylinder: Ø 100mm x 80mm x 600mm – 1 set
    15. Push cylinder: Ø 100mm x 80mm x 1000mm – 1 set
