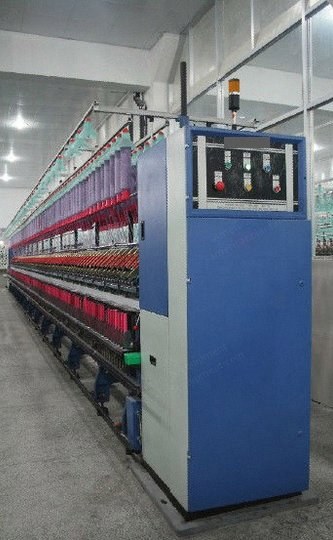

NovaStar, RP129, Flax Cotton Ring Spinning Frame, Spindle Gauge 70mm, 504 Spindles, Ring Diameter 38-45mm (New)

Name: NovaStar, RP129, Flax Cotton Ring Spinning Frame, Spindle Gauge 70mm, 504 Spindles, Ring Diameter 38-45mm
Brand: NovaStar
SKU: M-6001

‹ Go Back Next Product ›

Description

Overview
1. Ring spinning frame for flax cotton
2. Reasonable parameter
3. Drafting smoothly and controlling fibre with facility, advanced automation
Main Features
1. High quality – able to produce excellent cops for presetting length. The drafting and winding construction is the optimal design. It can produce the best yarn with the lowest breakage.
2. High efficiency – narrow machine width, the distance between the centre of the two opposite spindles on either side of the machine is 680 mm, which utilizes the space effectively.
3. High automation – first adopts the internationally advanced programme controller and the speed adjusting inverter. During the spinning process, the spindle speed can be changed automatically or manually.
4. Convenient operation and management.
Technical Specifications
1. Spindle gauge: 70 mm
2. Spindle number: 504, 492, 480, 456, 444, 420, 396, 384, 372, 360, 96, etc.
3. Ring diameter: 38 mm, 42 mm, 45 mm
4. Tube length: 205 mm, 230 mm
5. Spun yarn count (tex): 6-96 (100-6 ne); normal 13-36 (45-16 ne)
6. Drafting times: 10-50
7. Twist range: 260-1500 t/m
8. Spindle speed range: 12500-18500 r/min; normal 12500-16300
9. Twist: z,z or s
10. Roving package: 135 x 320, 152 x 460 (max)
Spinnable Fiber
1. Cotton, cotton-type chemical fibre and medium synthetic fibre up to 65 mm or their blends

Additional Specifications

HS code	8445.20

Specifications

Capacity	504 spindles
Drafting Times	10-50
Spun Yarn Count	6-96 tex

Dimensions

Dimensions	680mm machine width

Performance

Twist Range	260-1500 T/M
