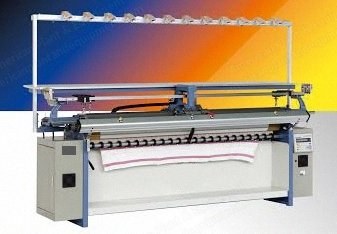

NovaStar, KH157, Computerized Collar Knitting Machine, 40 to 100 Inch Width, 3G to 16G Gauge, 6 Colors (New)

NovaStar, KH157, Computerized Collar Knitting Machine, 40 to 100 Inch Width, 3G to 16G Gauge, 6 Colors

Description

  1. Overview
    1. Computerized collar knitting machine
  2. Specifications
    1. Width: 40, 54, 66, 82, 100 inches (special standard can be made by order)
    2. Gauge: 3G, 3.5G, 5G, 6G, 7G, 9G, 12G, 14G, 16G
    3. Knitting speed: two gears shift and timing in any moment (display in operation faceplate), the quickest speed can reach 1.6 m/s
    4. Knitting system: 6 color can be changed in half turn
    5. Triangle board: (front-back) triangle board can fluctuate to knit faultlessly, system with high and low needles
    6. Neilsbed shift: shiftable 7 positions (permit to be shifted in same time or different times)
    7. Design conserve: knit 6 models, each model can conserve 2700 rows at most (outer design card can be conserve 4 models, and also transferable with inner card)
    8. Adjust density: 5 levels density
  3. Control And Drive
    1. Control system: model, step number, neilsbed shift, sari, knitting speed, piece number
    2. Drive framework: model, step number, neilsbed shift, sari, knitting speed, piece number
  4. Automatic Stop Devices
    1. Yarn-breaking, spin, needle-server (crash), fabric-fall, yarn-floating, triangle board amplidyne, density amplidyne, shuttle box, neilsbed shift amplidyne, voltage unquiet (protected by transducer)
