Hergeth, FOR, Asselin, Fehrer, Nonwoven Needle Felt Line, 4300mm, 300 to 1000 GSM

Hergeth, FOR, Asselin, Fehrer, Nonwoven Needle Felt Line, 4300mm, 300 to 1000 GSM Sold

Description

  1. Overview
    1. Nonwoven needle felt line, renewed 3 years ago
    2. Working width: 4300 mm
    3. Type of fiber: regenerated PES, PP
    4. Fineness of fiber: 6.6 to 40 dtex
    5. Length of fiber: 60 to 83 mm
    6. Crimp of fiber: 5 to 7 crimps per cm
    7. Weight of product: 300 to 1,000 gsm
  2. Opening And Blending
    1. Bale opener: make Hergeth, type MB / W, year 1986, quantity 3, working width 1000 mm, length feeding table 3000 mm, power 400 V, 50 Hz, 3 phases, adjustable drives with frequency inverter, control panel with PLC Siemens S7
    2. Oiling unit: tank capacity 250 litres, 1 x spraying jet, including mixing unit
    3. Fan for fiber transport: make August Prott, type MTR 315, air consumption 6,000 m³ per hour, power 7.5 kW
    4. Metal detector and metal separator: make Termo Goring Kerr, type DSL 3, year 2004, electro pneumatic valve, detector with electronic control, for ferrous particles
    5. Mixing bin: make Temafa
    6. Fan for fiber transportation: make FOR, with chute feed
  3. Web Forming
    1. Chute feed with moveable condenser: make FOR, working width 2500 mm, vibration feeder, including set of standard electronic equipment
    2. Web density measuring and automatic aligning: including set of standard electronic equipment
    3. Carding machine: make FOR, working width 2500 mm, power 220 V / 50 Hz / 3 phases, double doffer, 2 drums
    4. Crosslapper: make Asselin, type 380, year 1984, input width 2500 mm, output width 5000 mm, power 220 V / 50 Hz / 3 phases
  4. Needle Punching
    1. First needle loom: make Fehrer, type NL12 / 4.8, year 1973, working width 4800 mm, needling double board down stroke, needles 2 x 3,000 needles per meter, stroke 60 mm, strokes 1000 rpm, power 220 V / 50 Hz / 3 phases
    2. Unwinding for preliminary web
    3. Conveyor system for web transportation to second needle loom
    4. Second needle loom: make Fehrer, type NL12 / 4.4, year 1970, working width 4400 mm, needling double board down stroke, needles 2 x 3,000 needles per meter, stroke 40 mm, strokes 1000 rpm, power 220 V / 50 Hz / 3 phases
    5. Third needle loom: make Fehrer, type NL11 / 4.8, year 1973, working width 4800 mm, needling double board down stroke, needles 2 x 3,000 needles per meter, stroke 30 mm, strokes 1000 rpm, power 220 V / 50 Hz / 3 phases

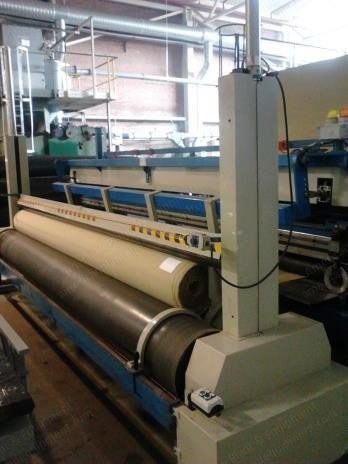

  5. Trimming And Winding Unit
    1. Make Benedetti & Calamai, type FL 4000, year 1995, table width 5500 mm, working width 5300 mm, power 400 V / 50 Hz / 3 phases, compressed air 7 ± 1 bar
    2. 4 disc blade for longitudinal cutting
    3. 1 disc blade for cross cutting
    4. Counter for wound material
    5. Siemens PLS S/ control system
  6. Additional Equipment
    1. Laroche edge trim opener
