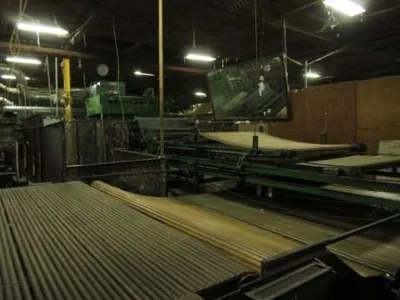

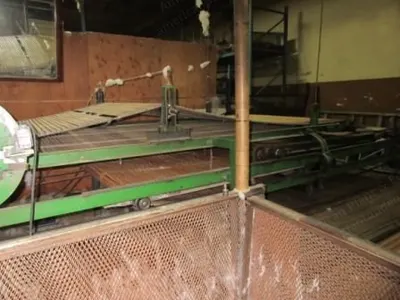

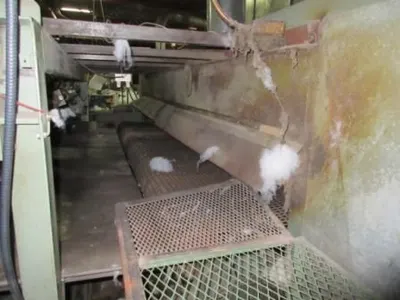

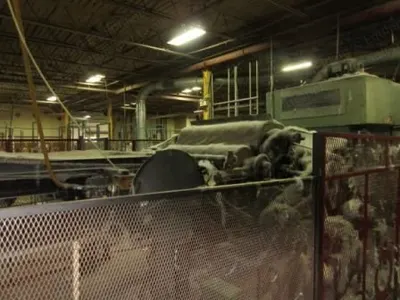

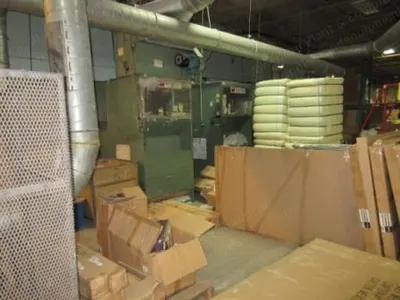

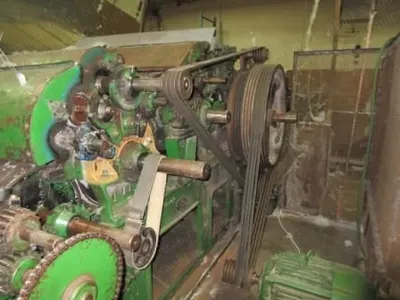

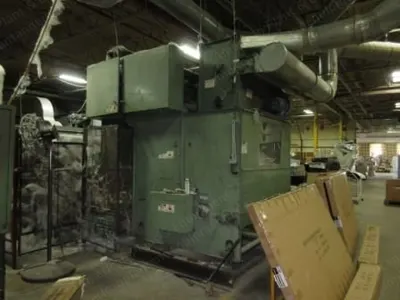

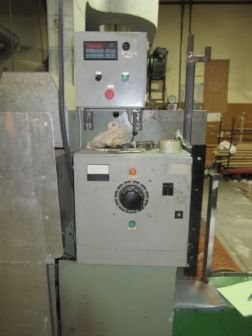

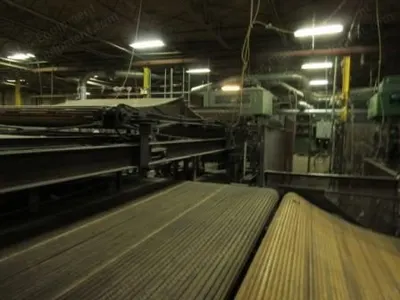

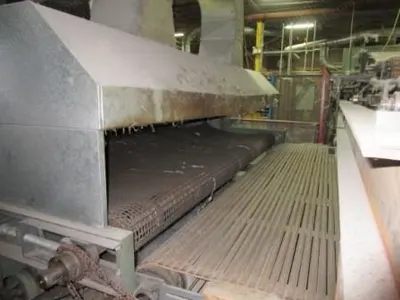

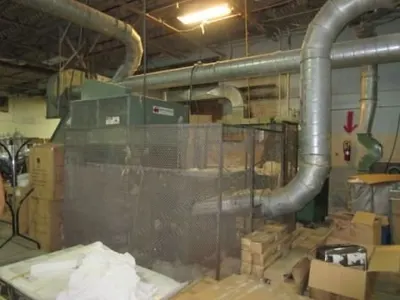

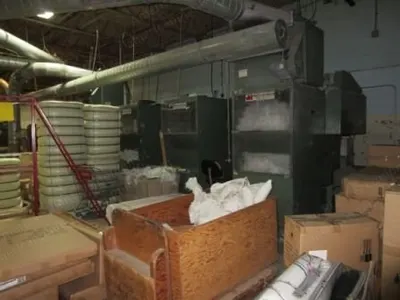

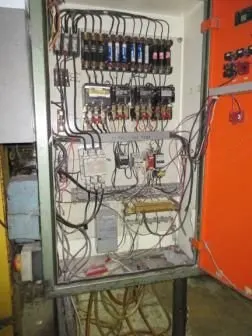

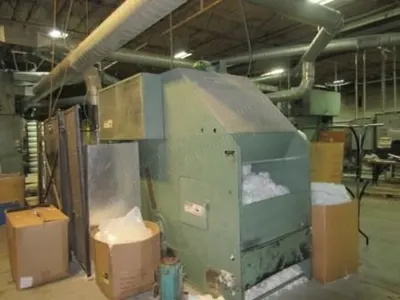

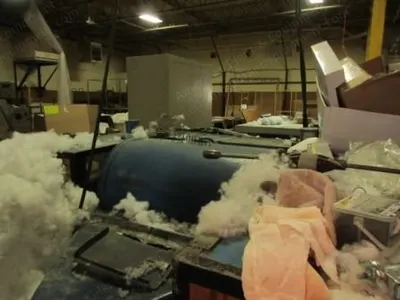

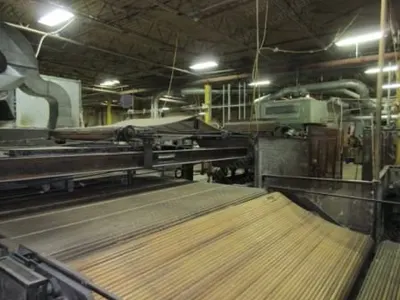

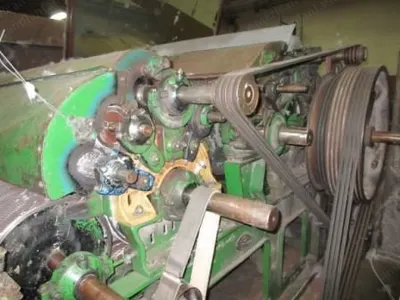

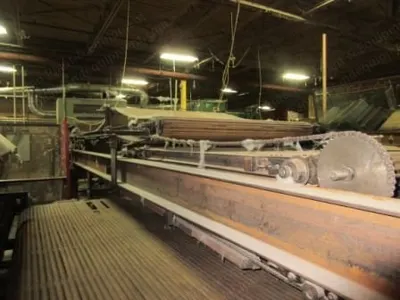

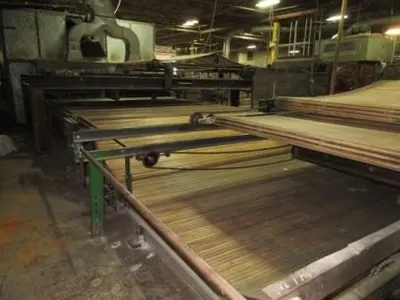

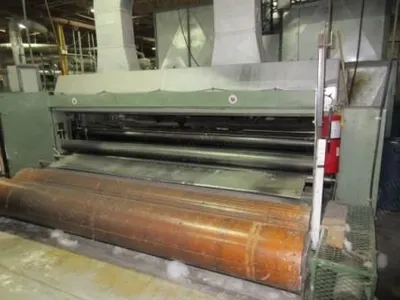

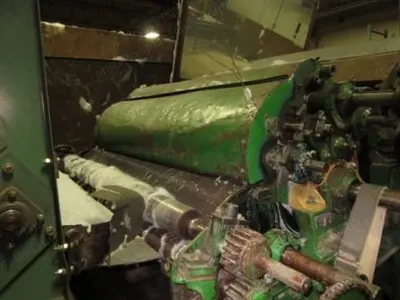

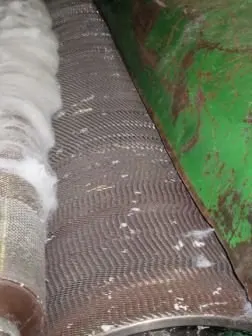

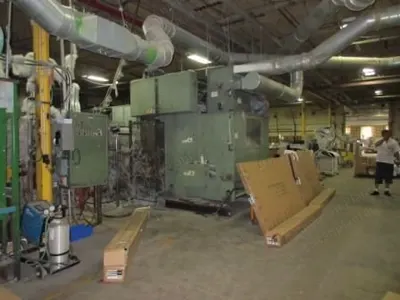

Description Overview Total of 5 hoppers, as well as one each unit Fine opener Two Hunter Garnetts, 60 inches wide Two cylinder Garnetts 20/30 2 horizontal crosslappers Slitter with 4 blades Winder with the unit Oven Single pass style oven, thermobonding style, gas-heated – 120” wide Approximately 30 ft long and approximately 16 ft wide Oven exit is 10 ft wide Length: 29 ft Width: 16 ft 8” Height: 10 ft 8” Conveyor and Exit Wooden slats on the wood conveyor at the exit is approximately 130” wide Overall exit width of the material is 110” Wood conveyor only length: 162” Wood conveyor only width: 97” Hopper Specifications Hopper #1: depth 137”, width 87” including belt cover cages, height 97” Hopper #2: depth 99”, width 54” including side cover, height 122” Hopper #3: depth 99”, width 54” including side cover, height 84” Hopper #4: depth 99”, width 54” including side cover, height 84” Hopper #5: depth 99”, width 54” including side cover, height 122” Name of unit: Fibre Control Corp, model M6VD-36, voltage 550V Control panel voltage 600/570/540, 3 phase on hopper control panel Floor space on hoppers 2-3-4-5 approximately: width 27 ft including motor and pipes, length 56 ft Garnett and Hopper #6 Length: 122” including hopper up to wooden conveyor Width: 112” Height: 135”
