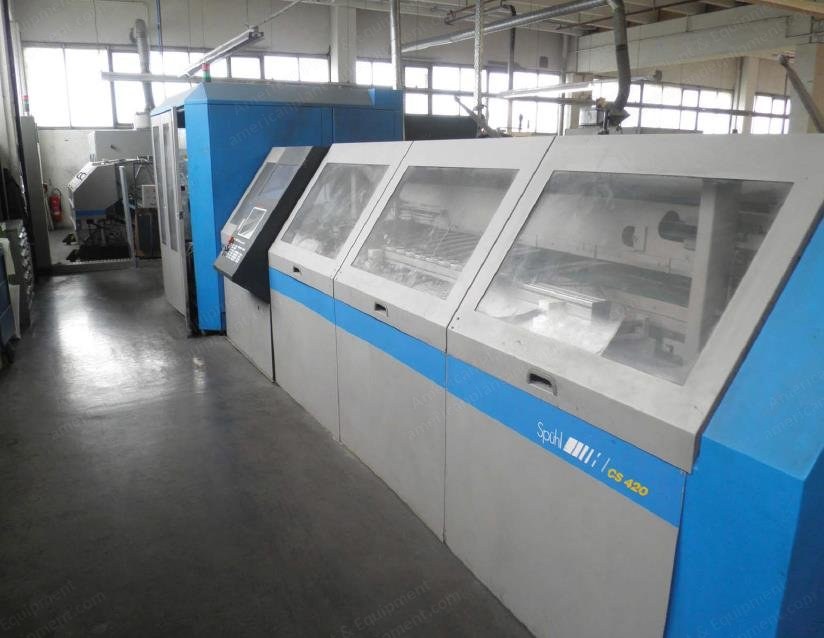

Spuhl, CS 420, 1997, 6000 Springs/Hour, Wire 1.6-2.7mm, Spring Height 60-160mm

Spuhl, CS 420, 1997, 6000 Springs/Hour, Wire 1.6-2.7mm, Spring Height 60-160mm

Description

  1. Overview
    1. Spring coiling machine
    2. Make: Spuhl
    3. Model: CS 420
    4. Year: 1997
    5. Automatic spring core machine
    6. Cores from 60 cm to 170 cm
    7. Any length of core
    8. 6,000 springs per hour
    9. Swiss quality
  2. Specifications
    1. Height of springs: 60 mm to 160 mm
    2. Coils of springs: 4 to 6
    3. Diameter of springs: 60 mm to 90 mm
    4. Diameter of spring wires: 1.6 mm to 2.7 mm
    5. Diameter of spiral wires: 1.3 mm to 1.4 mm
    6. Machine tension: 3 x 400 V
    7. Lighting tension: 230 V
    8. Motor amperage: 12.5 kVA
    9. Machine fuse amperage: 125 A
    10. Lighting fuse amperage: 10 A
  3. Dimensions and Weight
    1. Length x width x height: 7210 mm x 5500 mm x 2000 mm
    2. Weight: 5500 kg (12,122 lb)
  4. Condition
    1. Excellent
    2. Dismantled, but can see another one identical running in the same plant
