Fehrer, NL 9 S, 1995, 5300mm Working Width, 1500 Needles/m, 60mm Stroke

Fehrer, NL 9 S, 1995, 5300mm Working Width, 1500 Needles/m, 60mm Stroke

Description

  1. Overview
    1. Needle loom
    2. Make: Fehrer
    3. Model: NL 9 S
    4. Year of construction: 1995
  2. Specifications
    1. Working width: 5300 mm
    2. 1500 needles per meter
    3. Stroke height: 60 mm
    4. Maximum continuous stroke frequency: 1200 strokes per minute
    5. Throughput rate: 1 to 10 meters per minute
    6. Voltage: 440 V
    7. Control voltage: 110 V
    8. 3 phases, 50 Hz
  3. Dimensions And Weight
    1. Dimensions: approximately 6616 mm x 1943 mm x 2950 mm (L x W x H)
    2. Weight of the machine: approximately 17 tons
  4. Condition And Included Equipment
    1. Machine not dismantled

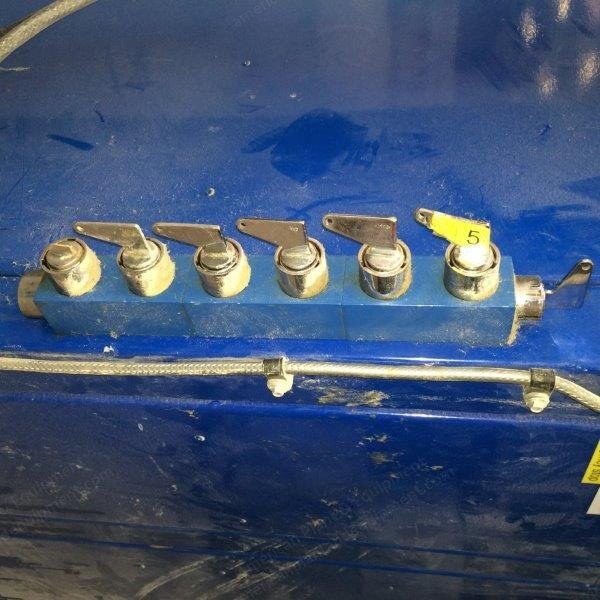

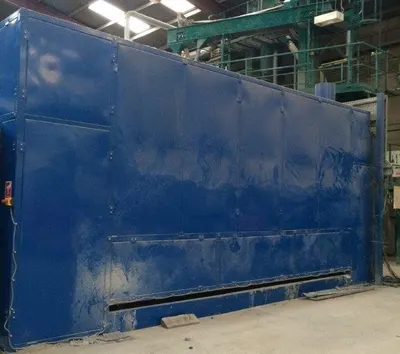

    2. Optional equipment: sound absorbing cabin with full interlocked castell key system
