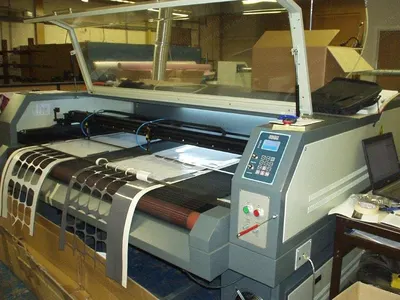

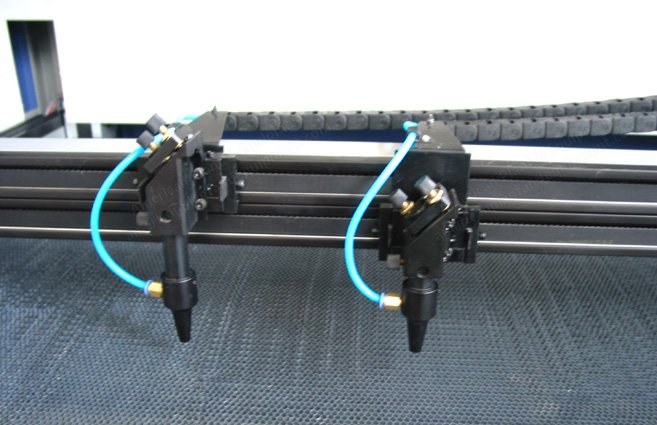

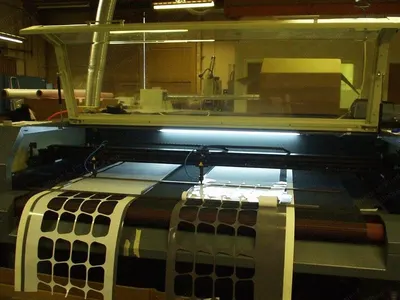

Ex demo laser machine with twin heads for cutting only
Cutting area of the bed is approximately 1480 mm x 960 mm

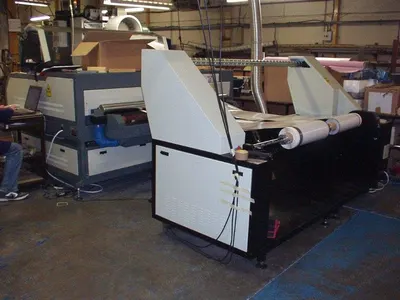

Conveyor and autofeed are larger to handle full width rolls of fabric
Laser is 50 Hz, 230 V, 10 amp, single phase, 2.2 kW
Will need a compressed air supply
Cutting And Engraving Capabilities
Typically can cut up to 5 mm thick items, depending on the material being cut
Mainly for the garment industry, but has been used to cut 3 mm plastics, engrave onto plated metals, engrave onto wood, and a few other materials
Laser cutting speed is 150 mm per second maximum, but speed depends on the material being cut or engraved
Dimensions And Weight
Laser: 270 cm x 220 cm x 128 cm
Autofeeder: 270 cm x 117 cm x 150 cm
Gross weight will be approximately 1 ton, shipping in 2 cases
Customer will need to ensure doors are wide enough to fit the laser through
Machine will arrive in a wooden case that will be bigger; can be lifted from either end or side, so if door space is limited, measure first before committing to the buy
