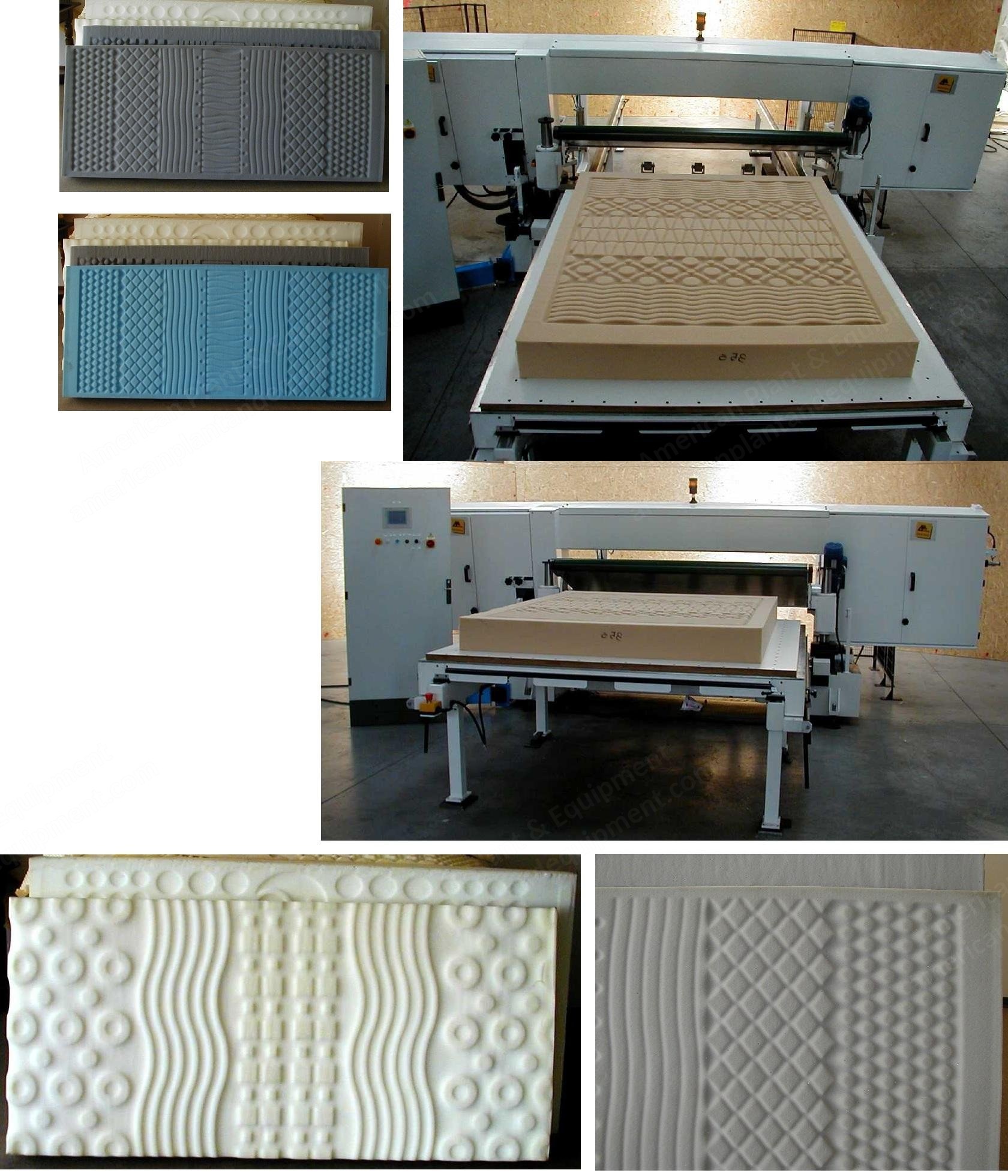

Camre, SC18, Foam Skiving Machine, 1900mm Max Width, 250mm Max Height, 15 kW

Camre, SC18, Foam Skiving Machine, 1900mm Max Width, 250mm Max Height, 15 kW

Description

  1. Overview
    1. Supplied with one pattern; unlimited number of patterns can be made

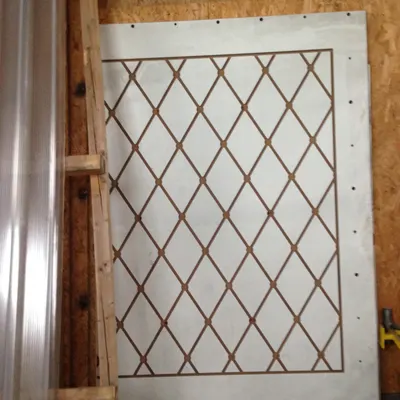

    2. Designs are made on MDF wood by a CNC router machine (not included)
  2. Specifications
    1. Maximum width: 1900 mm (76) x 2100 mm long (82.6)
    2. Maximum height of cut: 250 mm (9.8)
    3. Table length: 2200 mm (86.6)
    4. Table speed: 5 to 25 meters per minute
    5. Cutting is done by 80 mm wide blade
  3. Power and air requirements
    1. Installed power: 15 kW
    2. Amperage: 30 amps
    3. Air pressure needed: 6 bar (90 psi)
  4. Weight
    1. Machine weight: 4876 kg (10,727 lb)
