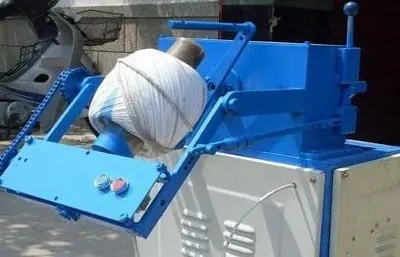

Plastic ball winding machine used to wind flat rope, paper rope, nylon rope, and jute rope into balls.
Ball size is controllable by adjusting the parameters.
Whole process is fully automatic and high speed.
Controlled by PLC computer programming.
Easy operation, high production rate, and wide application.
Specifications
Model #150: rotating speed 750 r/min, power 0.55 kW, maximum forming size 150 mm x 150 mm, installing dimensions 720 mm x 720 mm x 450 mm, weight 65 kg.
Model #200: rotating speed 500 r/min, power 0.55 kW, maximum forming size 200 mm x 200 mm, installing dimensions 720 mm x 720 mm x 650 mm, weight 80 kg.
Operation
You can set the weight of the ball, and error is less than 3 grams.
0.1 kg to 5 kg rope ball are feasible.
