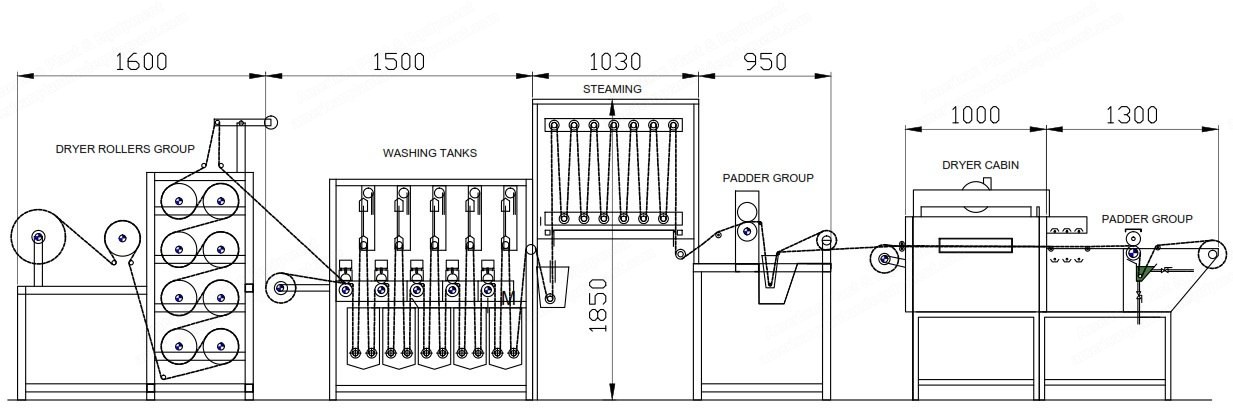

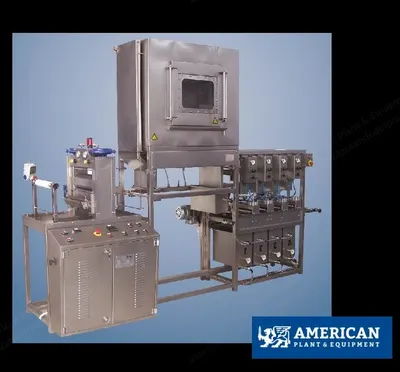

Atac, Sample Pad-Steam Padder, Steamer, Washing, Working Width 300mm, 6 Wash Tanks

Atac, Sample Pad-Steam Padder, Steamer, Washing, Working Width 300mm, 6 Wash Tanks

Description

  1. Overview
    1. Sample pad-steam padder with steamer and washing
    2. Includes 6 wash tanks
  2. Specifications
    1. Roller width: 350 mm
    2. Working width: 300 mm
    3. Roller hardness: 70 shore
    4. Working pressure: 1.5 to 6 bar (adjustable)
    5. Fabric speed: 0.2 to 10 meters per minute
    6. Steaming chamber capacity: 2 to 9 m
    7. Steaming time: 12 seconds – 45 minutes
    8. Wash trough fabric capacity: 2.80 m/pcs.
    9. Steamer heating type: steam / 4 to 6 bar
    10. Dye pot: 4 l
    11. Wash trough capacity: 25 l
    12. Wash trough heating: 2 kW
    13. Weight: 400 kg
    14. Power supply: 380 V, 50 Hz
    15. Total power: 13.6 kW for 6 pcs. wash trough
    16. Sizes: 3500 mm x 900 mm x 210 mm for 6 pcs. wash trough
  3. Process Time
    1. 1 pcs. wash trough: 45 sec. – 70 min.
    2. 2 pcs. wash trough: 60 sec. – 84 min.
    3. 3 pcs. wash trough: 77 sec. – 99 min.
    4. 4 pcs. wash trough: 95 sec. – 113 min.
    5. 5 pcs. wash trough: 111 sec. – 127 min.
    6. 6 pcs. wash trough: 128 sec. – 141 min.
    7. 7 pcs. wash trough: 145 sec. – 155 min.
    8. 8 pcs. wash trough: 156 sec. – 169 min.
    9. 9 pcs. wash trough: 178 sec. – 183 min.
    10. 10 pcs. wash trough: 195 sec. – 197 min.
  4. Condition
    1. Dryer rollers are not included in the price offer
