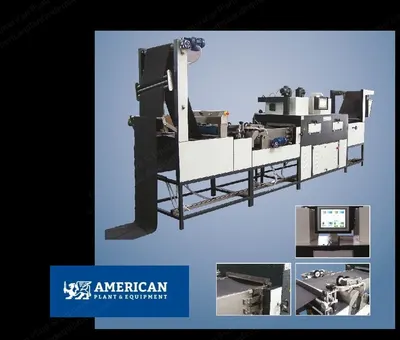

NovaStar, Continuous Mini Stenter, Machine Width 500mm, Fabric Width 350-500mm, 2 Chambers, Laboratory Use (New)

NovaStar, Continuous Mini Stenter, Machine Width 500mm, Fabric Width 350-500mm, 2 Chambers, Laboratory Use

Description

  1. Overview
    1. Continuous mini stenter
    2. Working width: 350 mm to 500 mm
    3. Height: 2300 mm
    4. Total length of the machine: 6000 mm (240 inches)
    5. 2 chambers (maximum 4 chambers)
    6. Length of each chamber: 1000 mm (40 inches) per chamber
  2. Specifications
    1. Working temperature: maximum 250 °C
    2. Working speed: 0.5 to 5 meters per minute
    3. Heating type: SR. resistance – it works with electric (power consumption per chamber is 9 kW)
    4. Total consumption is approximately 20 kW to 22 kW (this value is for 2 chambers)
    5. Heating gradient: 8 °C/min
    6. Chamber: 1-2-3
    7. Chamber temperature: all chambers can be set to individual temperatures

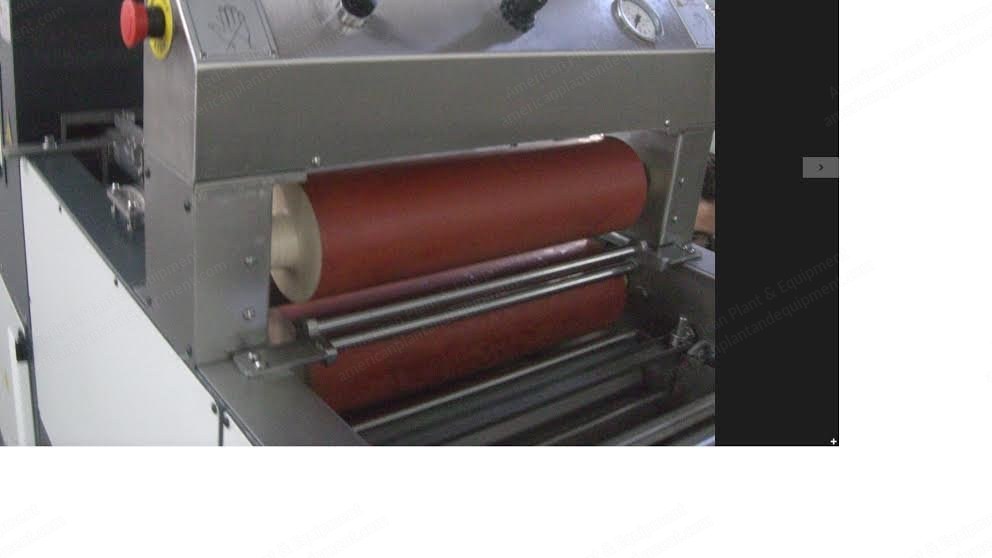

    8. Foulard/padder roller hardness: 70 shore
    9. Air blowing: can be selected as from top and/or bottom
    10. Blowing speed: all chambers can be set to individual blowing speed
    11. Passage carriage: chain, conveyor, or unpinning (free)
    12. Working width: can be set as per demand
    13. Control: 8” touch screen + PLC
  3. Included
    1. With pinning chain, vertical chain
    2. With 1 bowl
  4. Condition
    1. Working width: 500 mm
