NovaStar, GL196, Foam Rebound Tester, ASTM D 3574, ISO 8307, PLC Control, LCD Touch Screen
Scroll to zoom
100%
Description
Overview
Foam rebound tester designed according to ASTM D 3574 and ISO 8307, also Japan SES E3296 test standard.
Specifies diameter and mass ball fall on the foam specimen from a certain height, calculates the percentage between maximum drop height and rebound height, indicates foam resilience by spring rate.
Uses PLC control, LCD display, and has a USB port to output test results.
Technical Specifications
Drop height (adjustable): 500 ± 0.5% mm
Ball diameter: Ø 6 ± 0.05 mm
Accuracy: <1.5%
Display: LCD touch screen interface

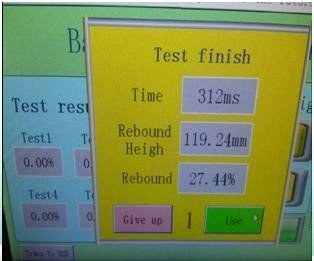

Test result: average rebound height, average spring rate
Dimension (L x W x H): 100 mm x 100 mm x 50 mm
Power: single phase, 220 V, 50 Hz
Design standard: ASTM D test H
